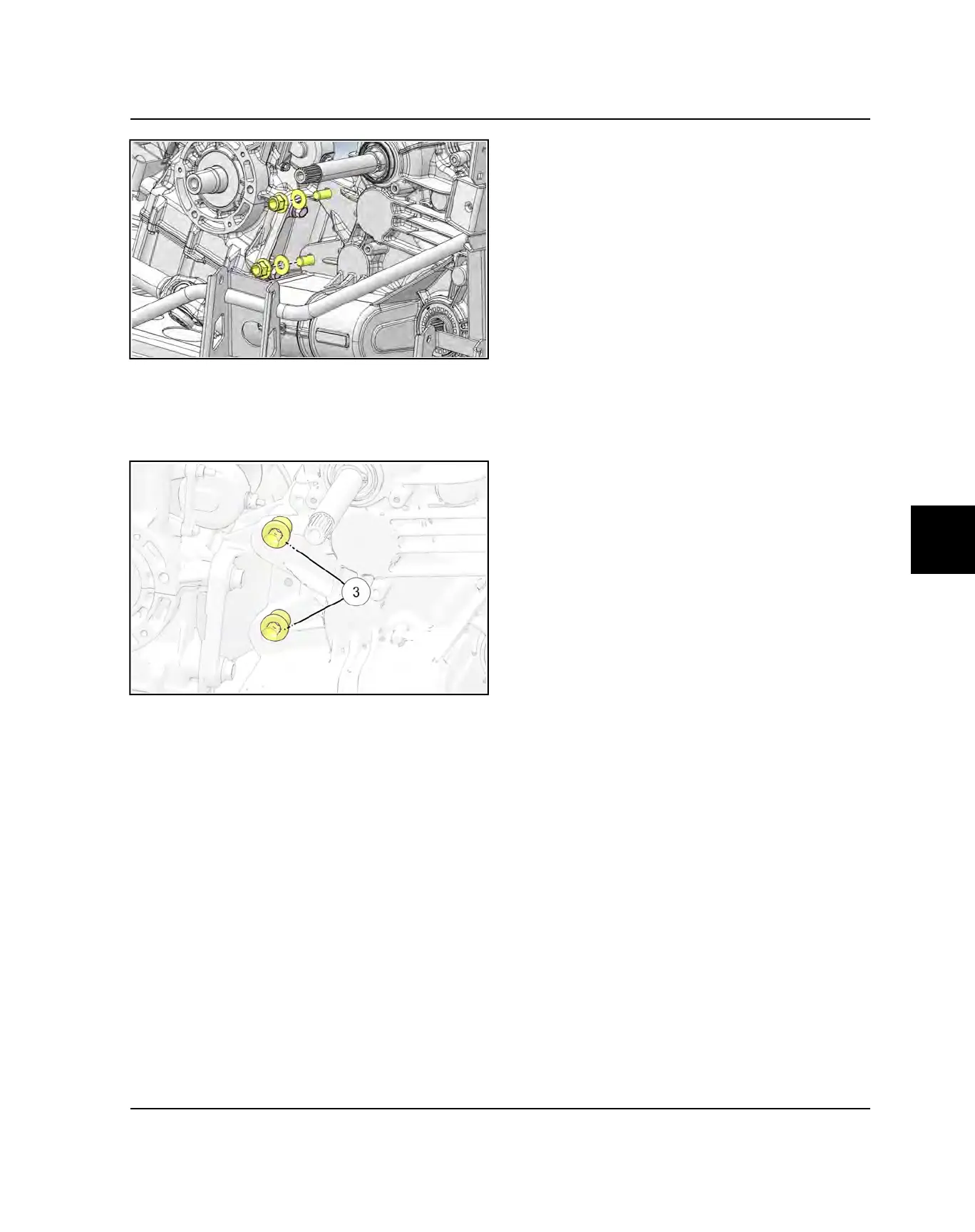

17.Remove the engine to transmission coupler through
bolts and discard.
18.Using a 12 mm hex drive, turn the take-up nuts (3)
clockwise to release the transmission ears from the
mount.
19.Remove the two bolts attaching the rear transmission
mount bracket assembly to the frame. Remove the
bolt that attaches the rear mount to the transmission.
Remove the mount assemblies from the vehicle.
20.Using an overhead lift or an assistant, lift the
transmission up and out of the chassis.
