6
9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
6.15
TRANSMISSION INSTALLATION
1. With the help of an assistant, position the
transmission into the vehicle frame through the top.

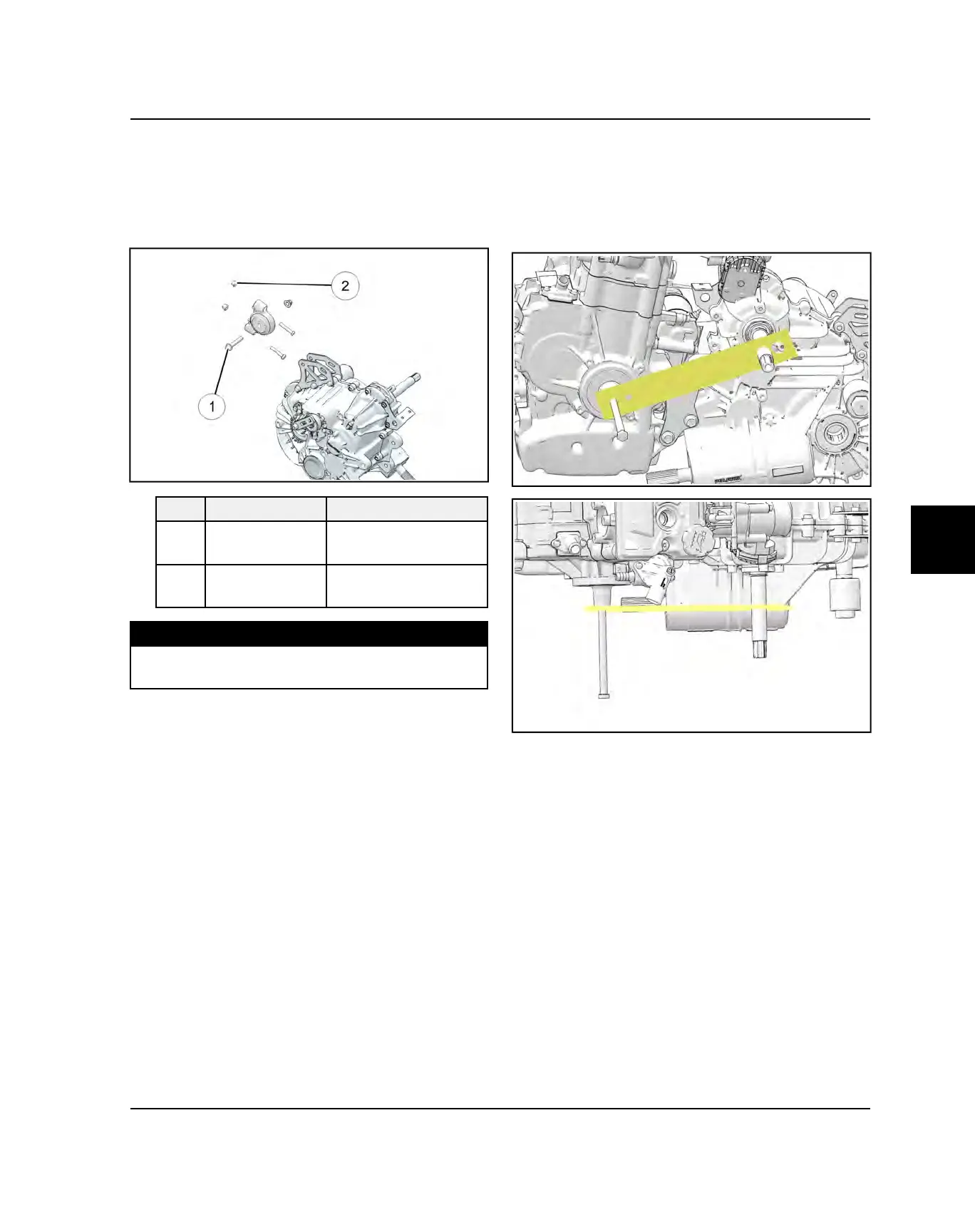

2. Install the rear transmission mount assemblies.
Torque all fasteners to specification.
REF.
DESCRIPTION NOTES
q
Fastener Bolt
Torque: 40 ft-lbs
(54 Nm)
w
Fastener Bolt
Torque: 25 ft-lbs
(34 Nm)
TORQUE
Rear Transmission Mount Bracket Bolts:
17 ft-lbs (23 Nm)
3. By hand, install the coupler brackets and the eight
engine to transmission coupler bolts. Do not torque
fasteners at this time.
4. Install the Clutch Center Distance Tool (PU-50658)
onto the crankshaft and transmission input shaft to
properly position the clutch center distance. The
pictures below show the tool (PU-50658) properly
installed.
TRANSMISSION
To Next Page
