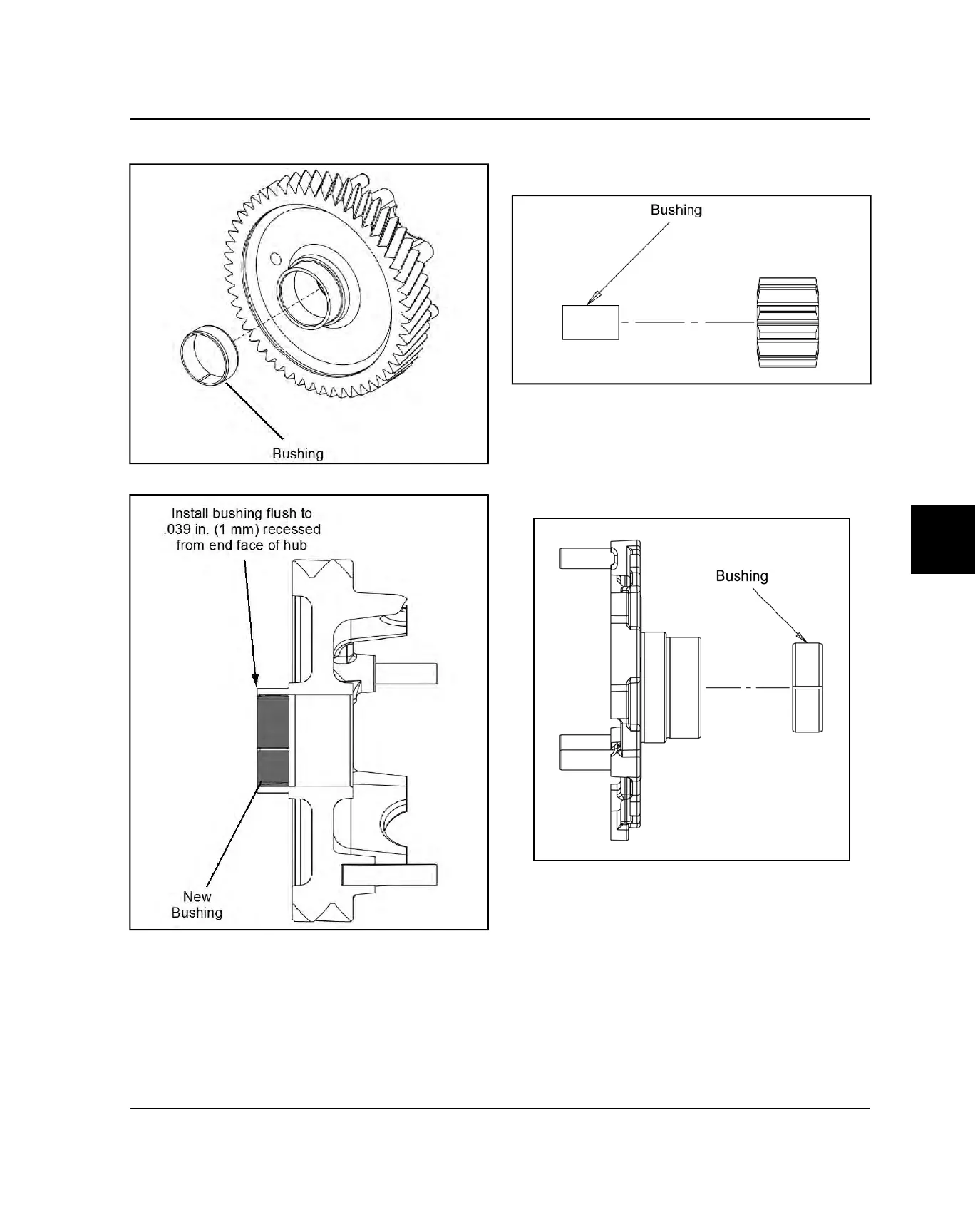

3. Press the new bushing into the ring gear housing.
4. Install the bushing to the specified depth as shown.
Planet Gear Bushing Replacement
5. Press the old bushing out of the planet gear.
6. Thoroughly clean the bore of the planet gear and
check for any unwanted burs.
7. Press the new bushing into the planet gear until it is
flush on each end. Repeat this procedure for the
remaining planet gears.
Differential Cover Bushing Replacement
8. Press the old bushing out of the differential cover.
9. Thoroughly clean the bore of the differential cover
and check for any unwanted burs.
10. Press the new bushing into the differential cover.
