9926806 R03 - 2015 - 2016 RANGER ETX / 570 2-SEAT 2015 - 2016 RANGER 570 CREW Service Manual
© Copyright Polaris Industries Inc.
2.47
6. Tighten both jam nuts securely against bracket.
7. Inspect park brake adjustment from Steps 1-2.
8. Repeat Steps 4-6 until the proper adjustment is
obtained for the parking brake.

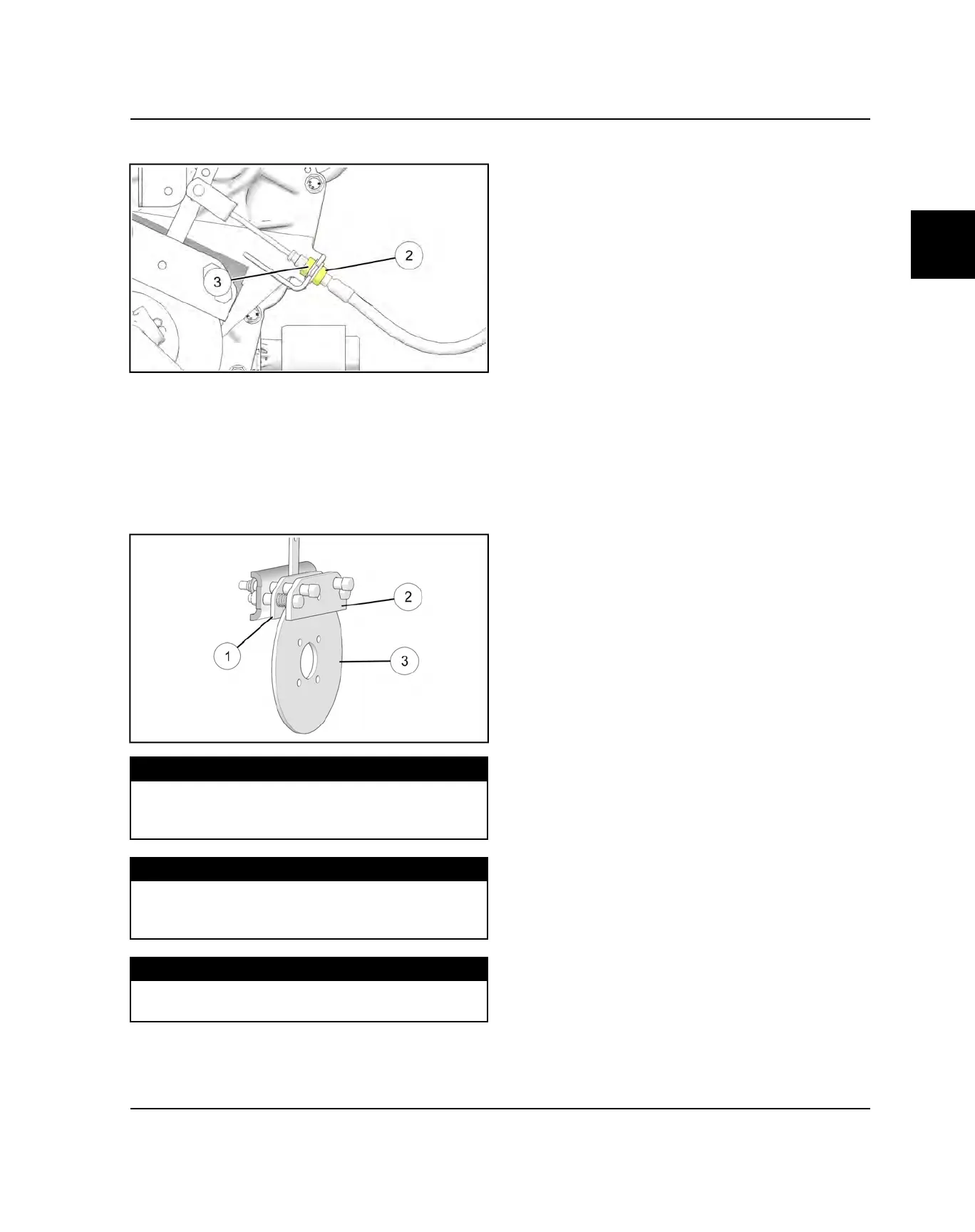

PARKING BRAKE PAD INSPECTION
Measure the thickness of the parking brake caliper front
pad
q
, rear pad
w
, and disc
e
. Replace if outside spec.
Refer to Brakes Ch. for service procedures.
MEASUREMENT
Parking Brake Pad Thickness - Front:
0.304 in (7.72 mm)
Service Limit: 0.24 in (6.1 mm)
MEASUREMENT
Parking Brake Pad Thickness - Rear:
0.360 in (9.14 mm)
Service Limit: 0.31 in (7.87 mm)
MEASUREMENT
Parking Brake Disc Thickness:
0.150-0.164 in (3.81-4.16 mm)
MAINTENANCE
