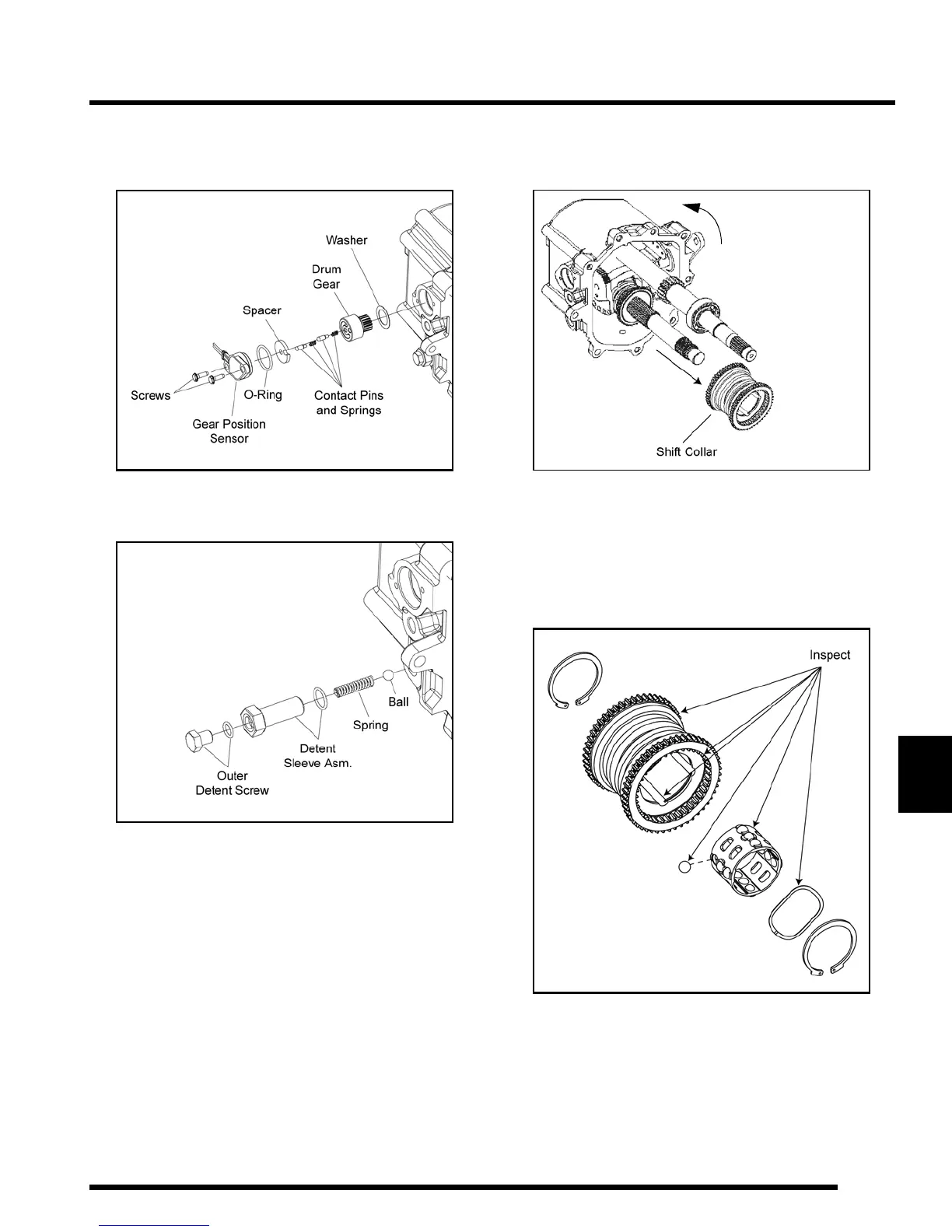

10. Remove the spacer, contact pins, springs, drum gear and
washer from the shift housing. Replace any worn or
damaged components.
11. Remove the inner shift detent screws, springs, and balls
from the shift housing.
NOTE: Never remove the outer shift detent screw
first. Removal of the outer screw will allow the detent
ball and spring to fall into the shift housing.
12. Remove the park/reverse spacer from the clutch shaft.
13. Pull back fully on gear selector arm to bring shift collar up
and disengage the shift collar from the clutch yoke. Lifting
on the clutch shaft may aid in shift collar removal.
14. Inspect the inner and outer gear teeth and splines on both
ends of the shift collar for excessive wear or damage.
15. Remove the retaining rings from each end of the shift collar.
16. Remove the wave spring and ball bearing cage assembly
from the shift collar as shown.
17. Inspect the inner and outer gear teeth and ball bearing
channels on both ends of the shift collar for excessive wear
or damage.
18. Remove the sliding shoes from the clutch yoke.
