5.19
BODY / STEERING / SUSPENSION
5

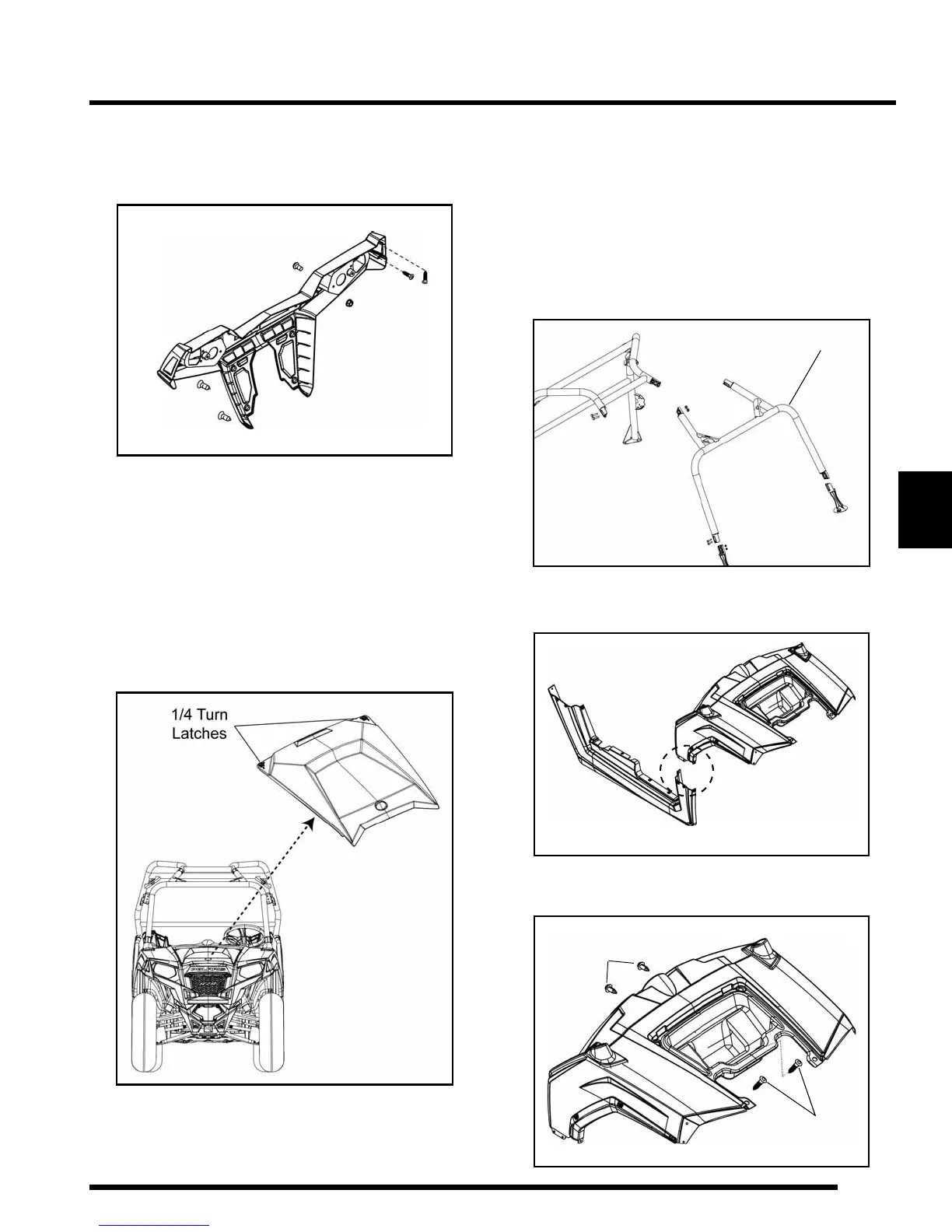

Rear Bumper
1. Remove the (4) Torx screws retaining the upper portion of
the rear bumper to the cargo box.
2. Remove the (4) Torx screws retaining the lower portion of
the rear bumper to the frame.
3. Remove the (2) fasteners retaining the middle portion of the
rear bumper to the cargo box.
Hood and Front Body Work
Hood Removal
1. To remove the hood, turn both latches to disengage the rear
portion of the hood.
2. Tilt the hood back to disengage the front tabs and remove
the hood from the vehicle.
Front Body / Dash Removal
1. Remove the hood as previously described.
2. Remove the front bumper (see “BODY COMPONENT
REMOVAL - Front Bumper”).
3. Remove the front portion of the cab frame assembly to
allow dash removal. Refer to appropriate “CAB FRAME -
Assembly / Removal” procedure for assembly torque
specifications.
4. Remove the push rivets that attach the dash assembly to the
rocker panels on each side.
5. Remove the (2) Torx screws and (2) push rivets that retain
the front and rear portions of the dash assembly.
Remove
RZR / RZR S Shown
RZR / RZR S Shown
Push
Rivets
Torx
Screws
