Polaris Ranger RZR 800 - Front Gearcase; Centralized Hilliard; Centralized Hilliard Exploded View

7.16
FINAL DRIVE
FRONT GEARCASE / CENTRALIZED HILLIARD

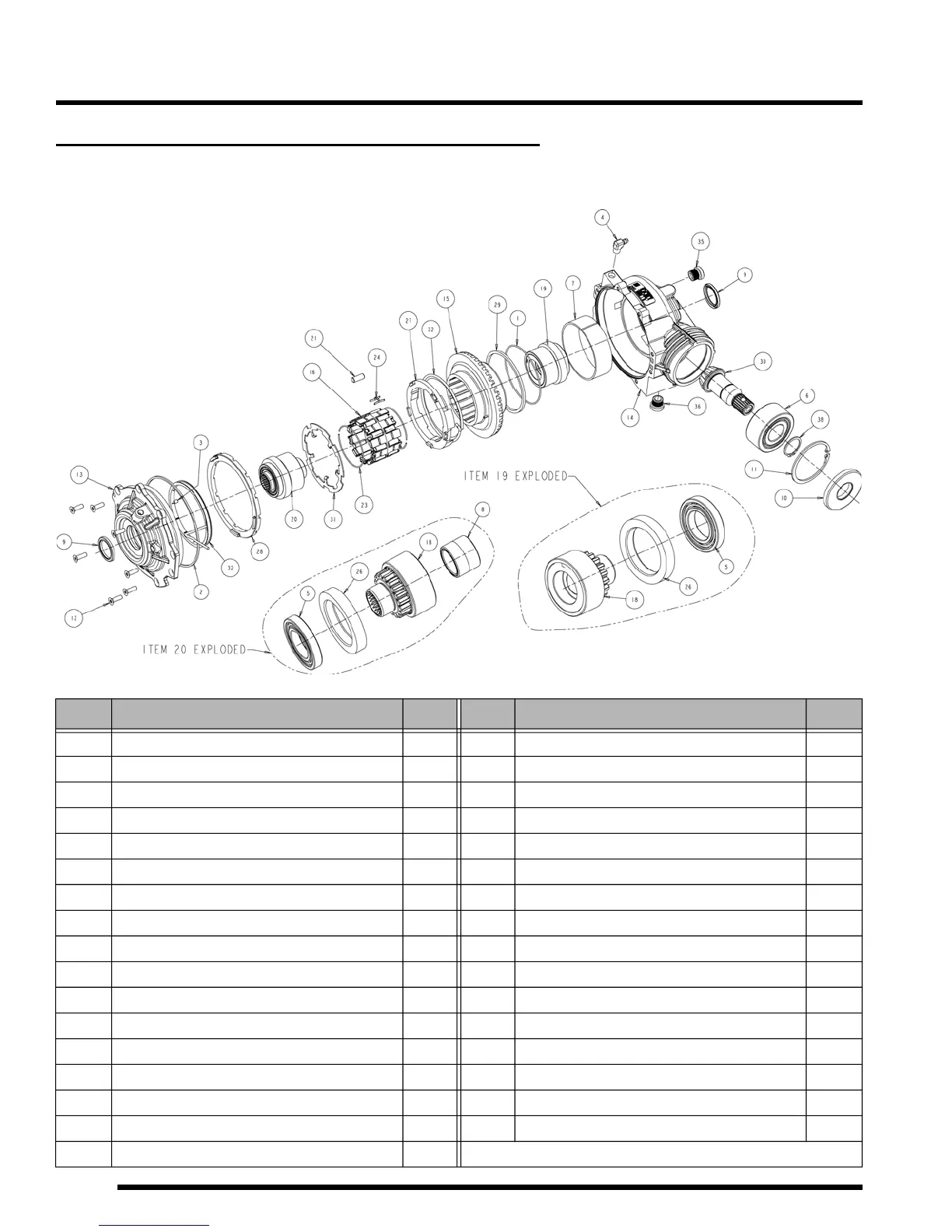

Centralized Hilliard Exploded View
R
EF
# D
ESCRIPTION
Q
TY
R
EF
# D
ESCRIPTION
Q
TY
1 O-Ring 1 19 Hub Sub-Assembly (Female) 1
2 O-Ring 1 20 Hub Sub-Assembly (Male) 1
3 Dowel Pin 1 21 Rollers 20
4 Vent Hose Fitting 1 22 Torsion Spring 1
5 Ball Bearing 2 23 Spring, Wireform 2
6 Ball Bearing (Double Row) 1 24 H-Clip Spring 20
7 Bushing 1 26 Nylon Spacer 2
8 Bushing 1 27 Torsion Spring Retainer 1
9 Oil Seal 2 28 Backlash Spacer 1
10 Oil Seal 1 29 Ring Gear Spacer 1
11 Retaining Ring, Internal 1 30 Pinion Gear 1
12 Cover Screws, M6 (T30 Torx) 7 31 Armature Plate 1
13 Cover Plate Assembly 1 32 AWD Coil 1
14 Gearcase Housing 1 35 Fill Plug 1
15 Clutch Housing (Ring Gear) 1 36 Drain Plug, Magnetic 1
16 Roll Cage 1 38 Retaining Ring, External 1
18 Hub / Race Assembly 2
7-11 ft. lbs.
(10-15 Nm)
8-10 ft. lbs.
(11-14 Nm)
8-10 ft. lbs.
(11-14 Nm)
