7.28
FINAL DRIVE

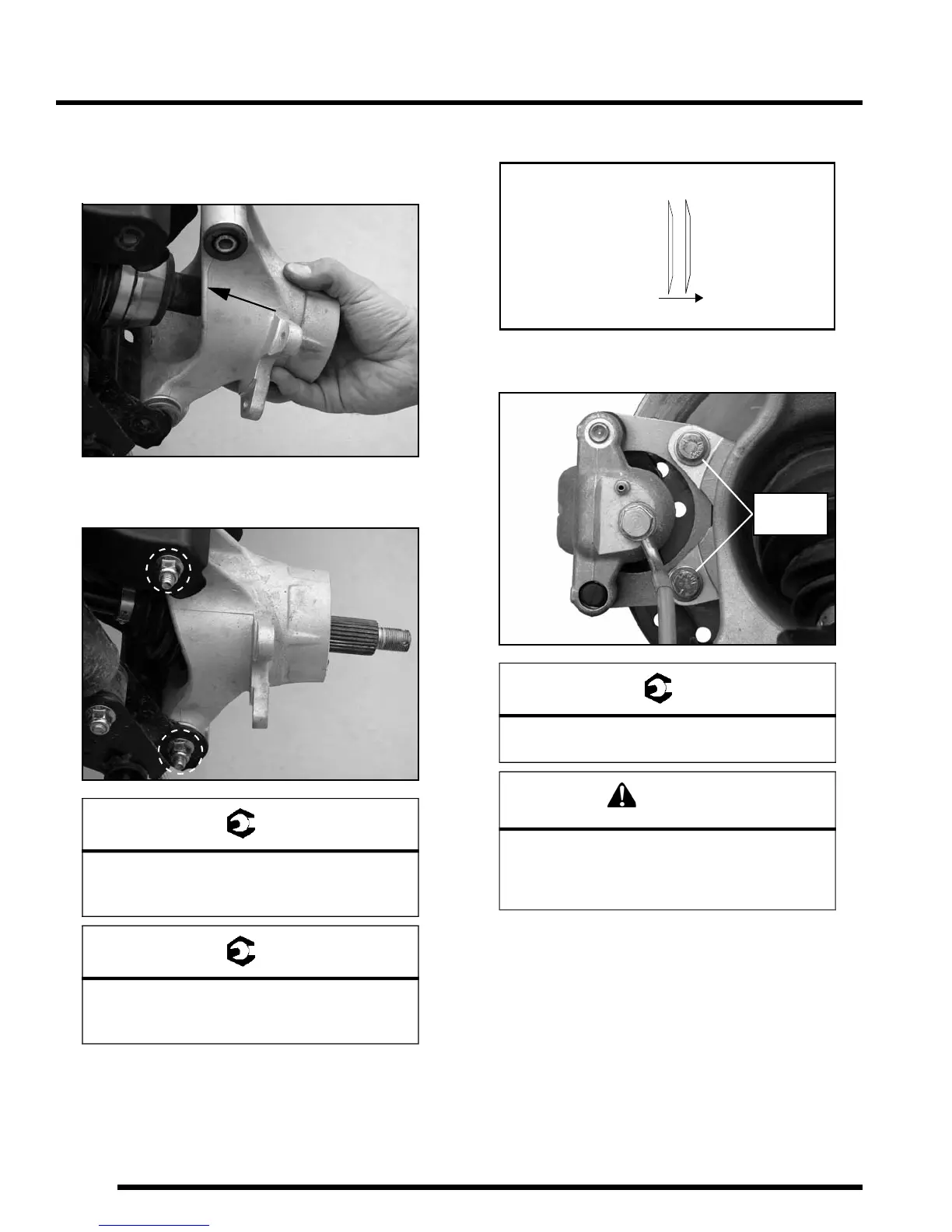

Bearing Carrier Installation
1. Install drive shaft axle through the backside of the bearing
carrier. Be sure bushings and pivot tubes are installed.
2. Install the fasteners that attach the rear bearing carrier to the
upper and lower A-arms. Torque bolts to specification.
3. Apply grease to drive shaft axle splines.
4. Install rear wheel hub assembly, cone washers, and hand
tighten the castle nut. Install washers with domed side out.
5. Install brake caliper mounting bolts and torque to 18 ft. lbs.
(24 Nm).
= T
Upper Rear Bearing Carrier Bolts:
RZR: 33 ft. lbs. (45 Nm)
RZR S / RZR 4: 40 ft. lbs. (54 Nm)
= T
Lower Rear Bearing Carrier Bolts:
RZR: 38 ft. lbs. (52 Nm)
RZR S / RZR 4: 40 ft. lbs. (54 Nm)
= T
Rear Caliper Mounting Bolts:
18 ft. lbs. (24 Nm)
CAUTION
New bolts have a pre-applied locking agent
which is destroyed upon removal. Always use
new brake caliper mounting bolts
upon assembly.
Out
Cone Washers
Wheel
Hub
18 ft. lbs.
24 (Nm)
