Polaris Ranger RZR 800 User Manual

9.11
BRAKES
9
FRONT CALIPER SERVICE

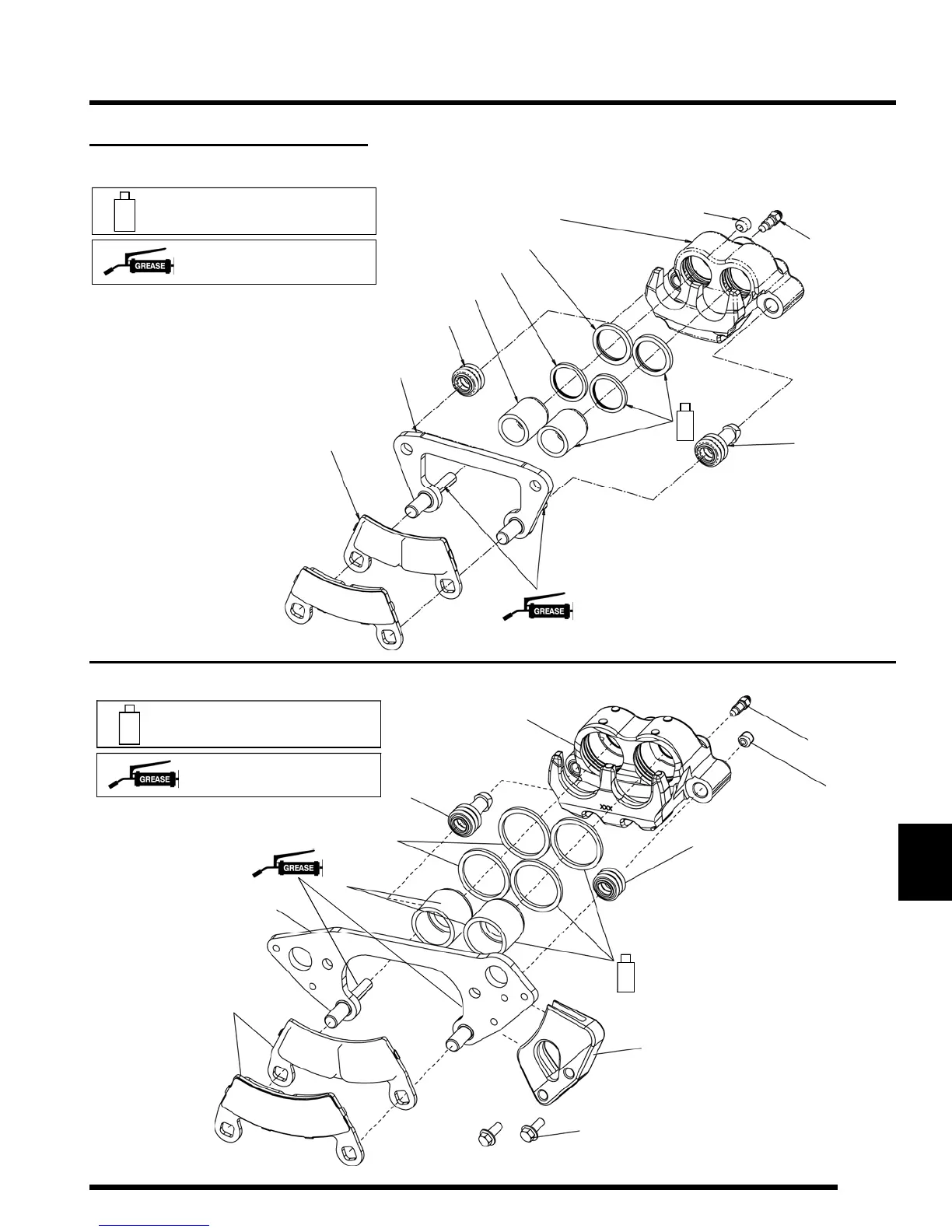

Caliper Exploded View (RZR / RZR S / RZR S INT’L)
Caliper Exploded View (RZR 4)
A. Socket Set Screw
B. Bleeder Screw
C. Caliper Assy.
D. Boot
E. Square O-ring (thick)
F. Square O-ring (thin)
G. Piston
H. Caliper Mount
I. Brake Pads
A
B
C
D
E
F
G
H
Apply Silicone Grease
Apply Polaris DOT 4 Brake Fluid
to Component
I
47 in. lbs.
(5.3 Nm)
D
A
B
C
D
47 in. lbs.
(5.3 Nm)
A. Socket Set Screw
B. Bleeder Screw
C. Caliper Assy.
D. Boots
E. Square O-rings
F. Pistons
G. Caliper Mount
H. Brake Pads
I. Brake Scraper
J. Bolts
F
G
H
Apply Silicone Grease
Apply Polaris DOT 4 Brake Fluid
to Components
D
I
E
J
