MAINTENANCE
3. Once you have obtained the correct preload, hold the lower
adjustment ring while tightening the upper adjustment ring
to lock them in place.
Shock Compression Adjustment
The compression damping adjustment is located on top of the
shock ‘Piggyback’ reservoir of each shock.
Use a flat blade screwdriver to make damping adjustments.
NOTE: When the adjuster screw is turned clockwise
until it stops, the damping is in the fully closed
position.
Turn the clicker clockwise to increase compression damping.
Turn the clicker counter-clockwise to decrease compression
damping.
NOTE: The factory setting is 8 clicks from closed
(RZR-S) and 10 clicks from closed (RZR-4). Refer to
the “Compression Adjustment Table” below.

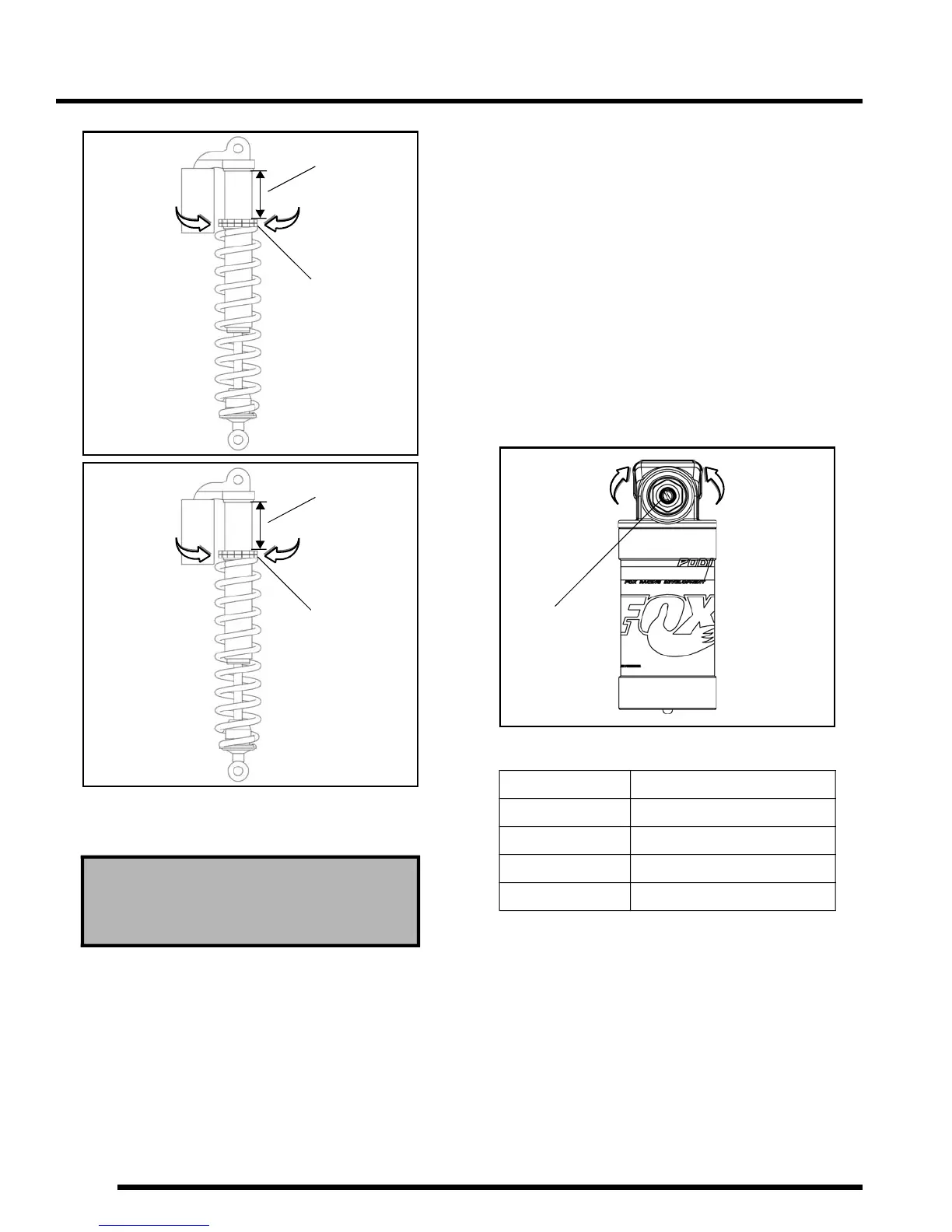

Shock Spanner Wrench
(PN 2870803)
Increase
Preload
Decrease
Preload
1
Factory Preload Setting
4.2 in. (10.7 cm)
RZR 4
2.0 Piggyback
Front Shock
Increase
Preload
Decrease
Preload
1
Factory Preload Setting
4.8 in. (12.2 cm)
RZR 4
2.0 Piggyback
Rear Shock
Compression Adjustment Table
Setting Compression Damping
Softest 18 clicks from closed
Factory (RZR S) 8 clicks from closed
Factory (RZR 4) 10 clicks from closed
Firmest 2 clicks from closed
Clicker
Adjuster
Increase
Damping
Decrease
Damping
