4.28
ELECTRONIC FUEL INJECTION

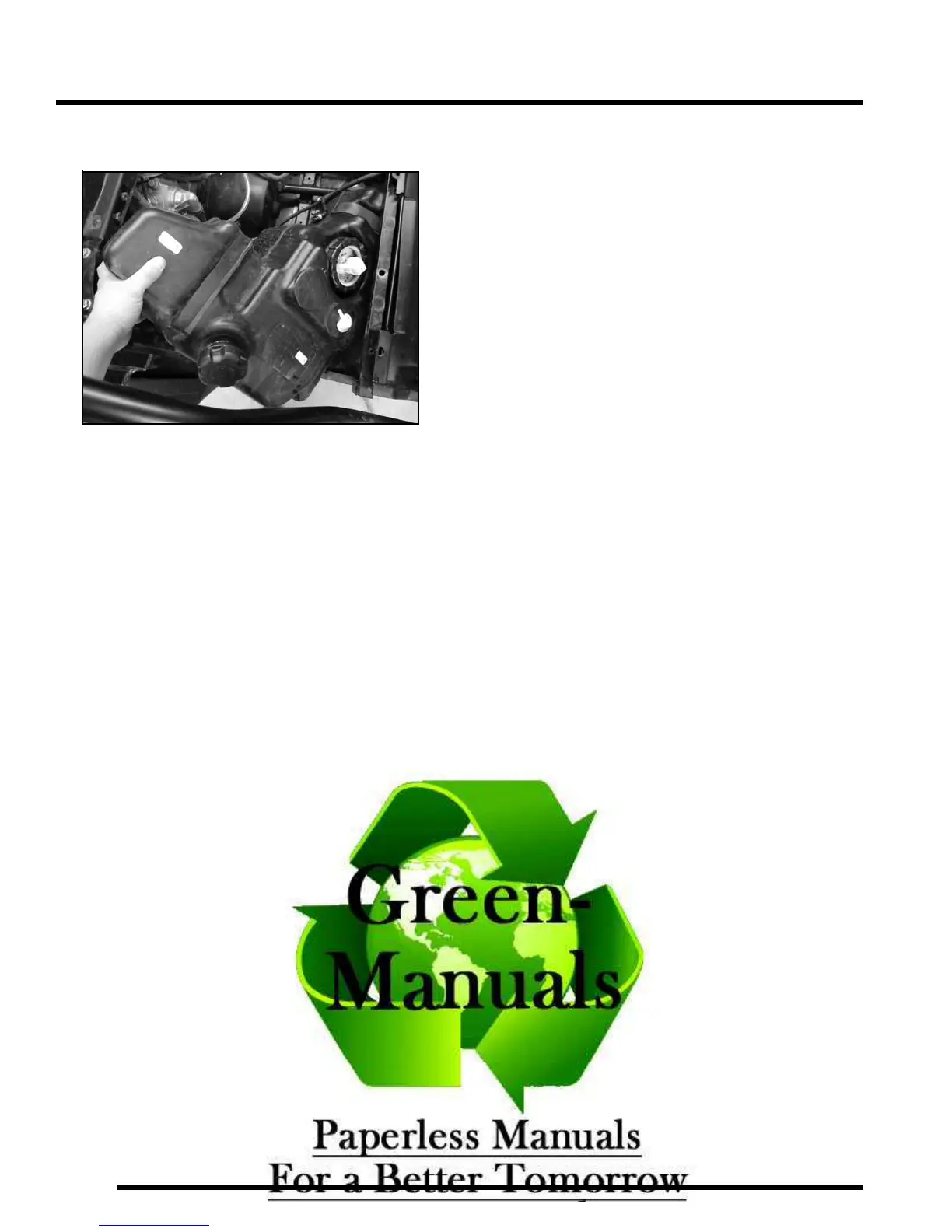

12. Lift the rear of the fuel tank up first and carefully lift the
fuel tank up and out from the vehicle.
Fuel Tank Installation
1. Carefully reinstall the fuel tank assembly.
2. Reinstall the (2) fuel tank brackets and fasteners.
3. Reinstall the (3) shift lever support bracket fasteners (RZR
/ RZR S).
4. Reinstall the rear RH fender well and secure with fasteners
(RZR / RZR S only). Reinstall the rear RH panel divider
and secure with fasteners (RZR 4).
5. Reinstall the seat belt mechanism and secure the lower bolt.
6. Reinstall the RH rocker panel and all previously removed
fasteners.
7. Reinstall the rear seat base / support assembly and secure
with the fasteners.
8. Reinstall the center console and shift knob (RZR / RZR S
only).
9. Install the fuel line, vent hose and clamp. Verify they are
secure.
10. Reconnect the fuel pump electrical harness.
11. Reconnect the negative battery cable. Test the fuel pump
by turning the ignition key on and listening for the pump
to activate. Check for leaks.
12. Finally, install the rear service panel along with the seats.
