7.13
FINAL DRIVE
7
9. If removing the rear portion of the propshaft, remove the
bearing support (upper & lower half) from the shaft.

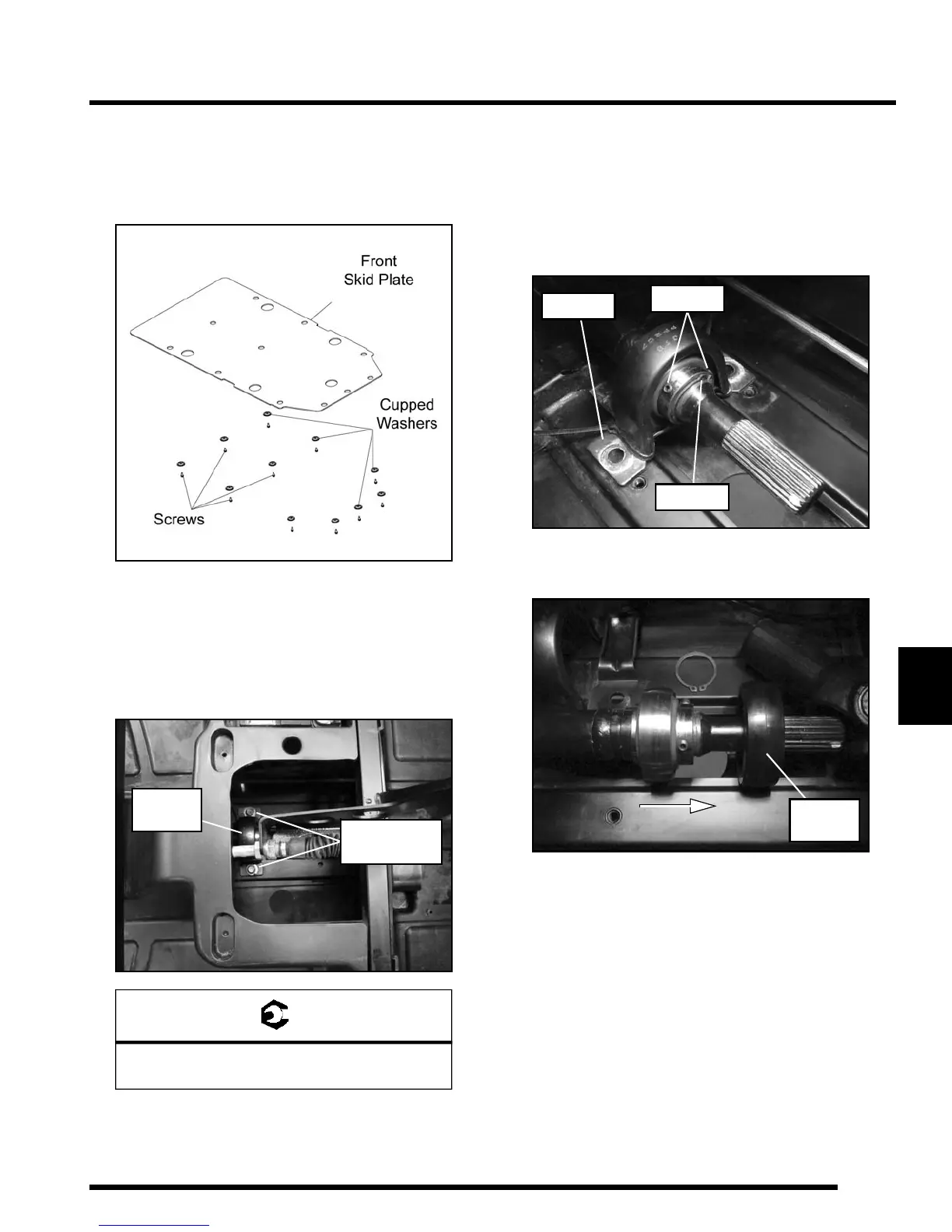

10. Remove the fasteners retaining the front plastic skid plate
to allow for propshaft removal.
11. Using care, slide the rear portion of the propshaft out
through the bottom of the vehicle.
12. Reverse this procedure to reinstall and assemble the front
and rear portions of the propshaft.
13. Torque the support bearing fasteners to specification.
14. When installing the front portion of the propshaft, use a
NEW roll pin.
Support Bearing Replacement (RZR 4)
1. Follow steps 1-8 of the “Removal / Installation (RZR 4)”
procedure.
2. Remove the bearing support (upper and lower half) and the
retaining ring. Loosen the (2) set screws retaining the
bearing to the shaft.
3. Remove the rubber isolator from the bearing and slide the
bearing off the end of the shaft.
NOTE: If bearing is seized on the shaft, remove the
rear portion of the shaft from the vehicle. Refer to
“Removal / Installation (RZR 4)”.
4. Clean the mounting surface of the shaft and install the new
bearing.
5. Install a new retaining ring and slide the bearing tight
against the retaining ring.
= T
Support Bearing Fasteners:
16-18 ft. lbs. (22-24 Nm)
Support
Bearing
16-18 ft. lbs.
(22-24 Nm)
Remove
Loosen
Remove
Rubber
Isolator
