BODY / STEERING / SUSPENSION
5
ELECTRONIC POWER STEERING ASSEMBLY

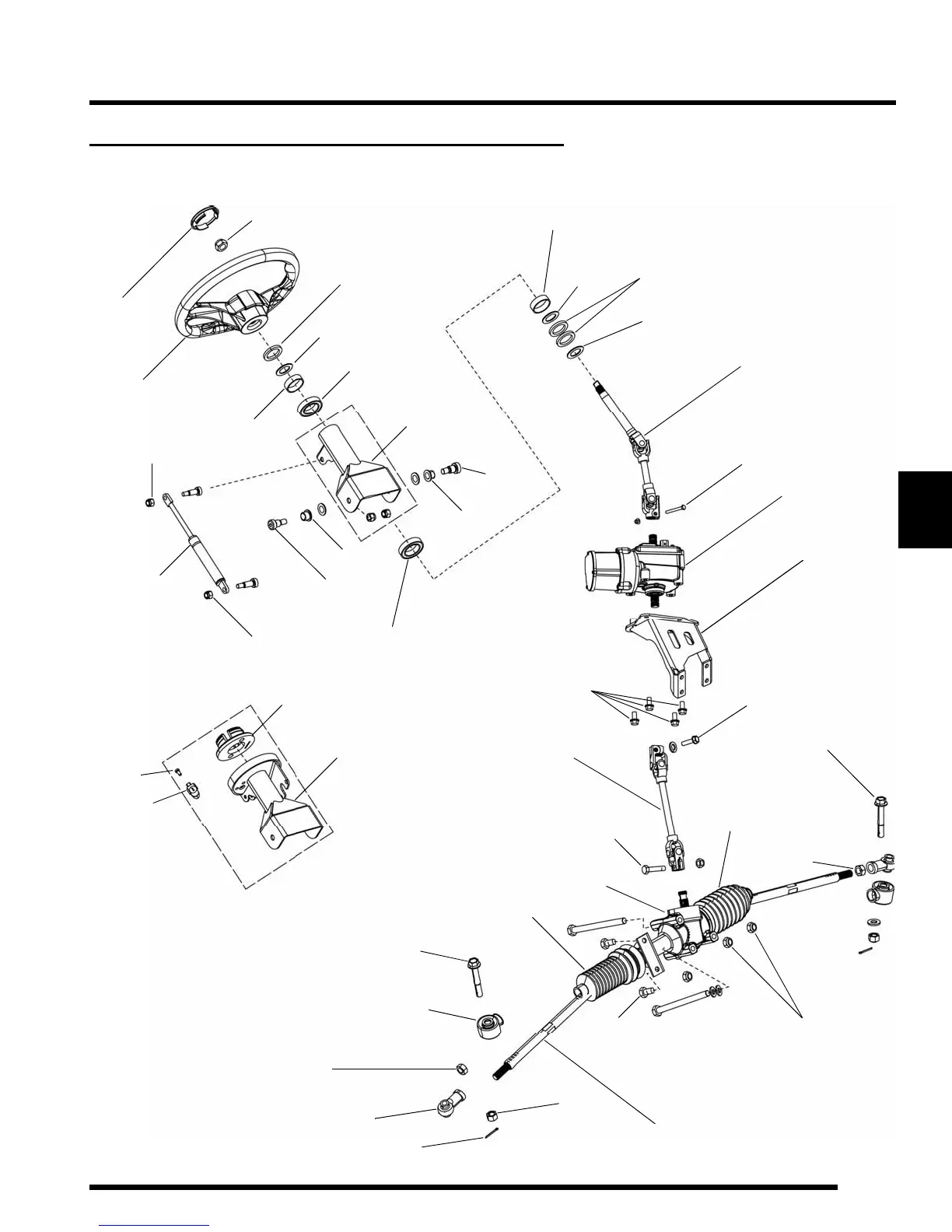

Exploded View (EPS Models)
Power Steering
Unit
Nut
30 ft. lbs.
(41 Nm)
Upper
Steering Shaft
Lower
Steering Shaft
15 ft. lbs.
(20 Nm)
15-19 ft. lbs.
(20-26 Nm)
Mounting
Bracket
20-24 ft. lbs.
(27-33 Nm)
Boot
Rod End
Tie Rod
RH Boot
LH Boot
Spacer
Bearing
Steering
Cap
Pivot Tube
Cotter Pin
Gear Box
Bearing
Oil Locking
Shock Asm.
Asm.
17 ft. lbs.
(23 Nm)
17 ft. lbs.
(23 Nm)
12-14 ft. lbs.
(16-19 Nm)
42.5 ft. lbs.
(58 Nm)
42.5 ft. lbs.
(58 Nm)
12-14 ft. lbs.
(16-19 Nm)
25-31 ft. lbs.
(34-42 Nm)
23 ft. lbs.
(31 Nm)
23 ft. lbs.
(31 Nm)
7 ft. lbs.
(10 Nm)
12 ft. lbs.
(16 Nm)
Bushing
Thick
Washer
Thin
Washer
Thick
Washers
Thin
Washer
Thin
Washer
Spacer
Wheel
Bushing
Pivot Tube
Screw
Steering
Lock
Collar
INT’L Models
