Polaris Ranger RZR 800 User Manual

5.45
BODY / STEERING / SUSPENSION
5
FOX™ SHOCK SERVICE
General Service Information
Recommended Service Intervals
FOX™ Racing Shocks will perform the best if serviced at regular intervals:
• Every ride - Wash and dry the vehicle and suspension
• Every 100 hours - Visually inspect shock seals
• Every 500 hours or Annually - Change shock oil and replace seals

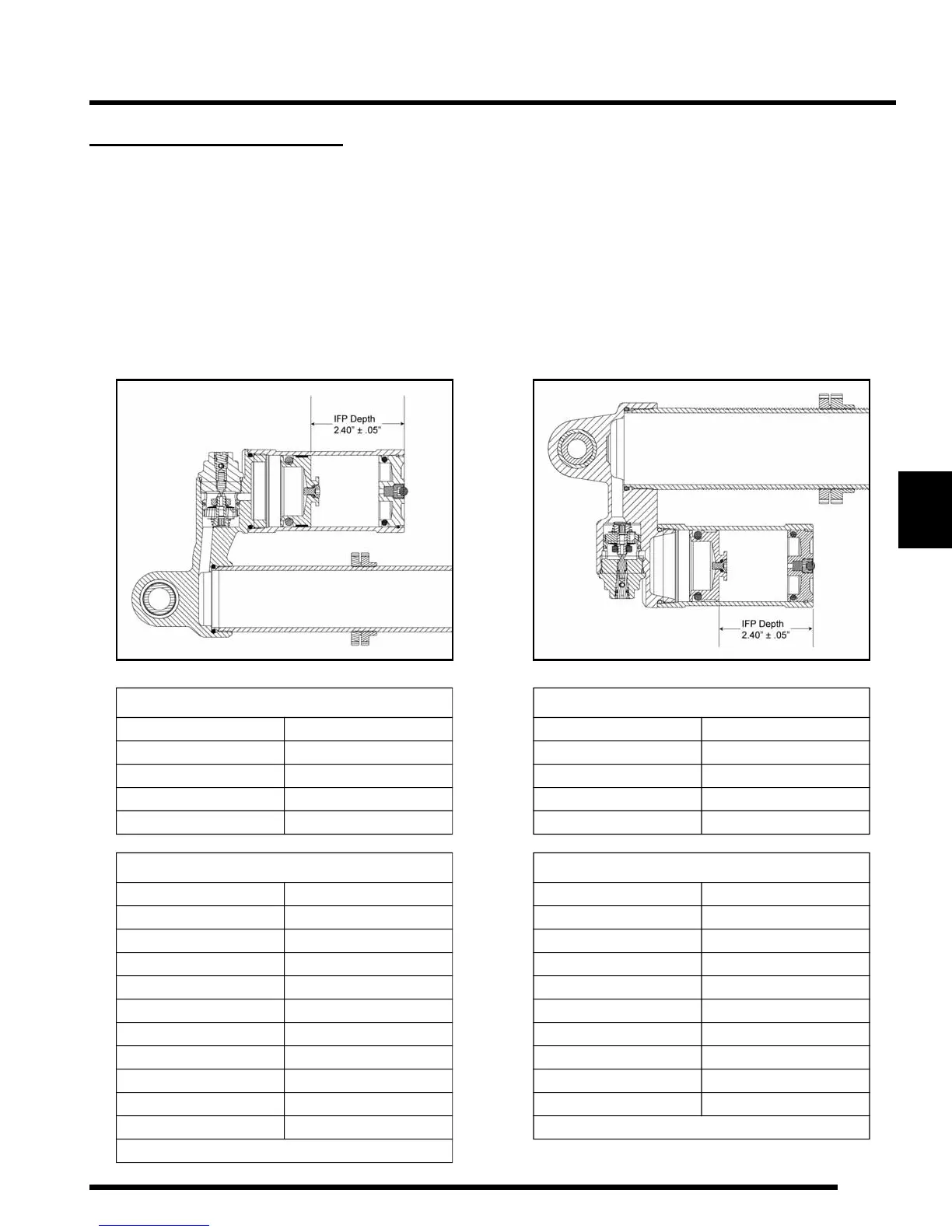

Front Shock Service Information (RZR S) Front Shock Service Information (RZR 4)
SHOCK DESIGN DETAILS
Travel 6.22”
Extended Length 19.66”
IFP Location 2.40”
Nitrogen Pressure 200 psi
Gas Shock Oil 2870995 (qt.)
SHOCK VALVING
COMPRESSION REBOUND
1.300 x 0.008 1.250 x 0.006
1.300 x 0.008 1.250 x 0.006
0.800 x 0.004 1.250 x 0.008
1.250 x 0.008 1.100 x 0.006
1.100 x 0.006 1.000 x 0.006
1.000 x 0.006 0.900 x 0.008
0.900 x 0.010 0.800 x 0.010
0.800 x 0.010 0.700 x 0.010
0.700 x 0.010 0.620 x .093 Back-Up
1.125 x .093 Top-Out
Piston Orifice: 0.098
SHOCK DESIGN DETAILS
Travel 6.22”
Extended Length 19.66”
IFP Location 2.40”
Nitrogen Pressure 200 psi
Gas Shock Oil 2870995 (qt.)
SHOCK VALVING
COMPRESSION REBOUND
1.600 x 0.008 1.425 x 0.010
1.425 x 0.010 1.350 x 0.012
1.350 x 0.010 1.250 x 0.012
1.250 x 0.010 1.100 x 0.015
1.100 x 0.010 0.950 x 0.012
0.950 x 0.010 0.800 x 0.010
0.800 x 0.020 0.875 x .100 Back-Up
1.570 x 0.128 Top-Out 0.875 x .100 Back-Up
0.875 x .100 Back-Up
Piston Orifice: 2x 0.070
