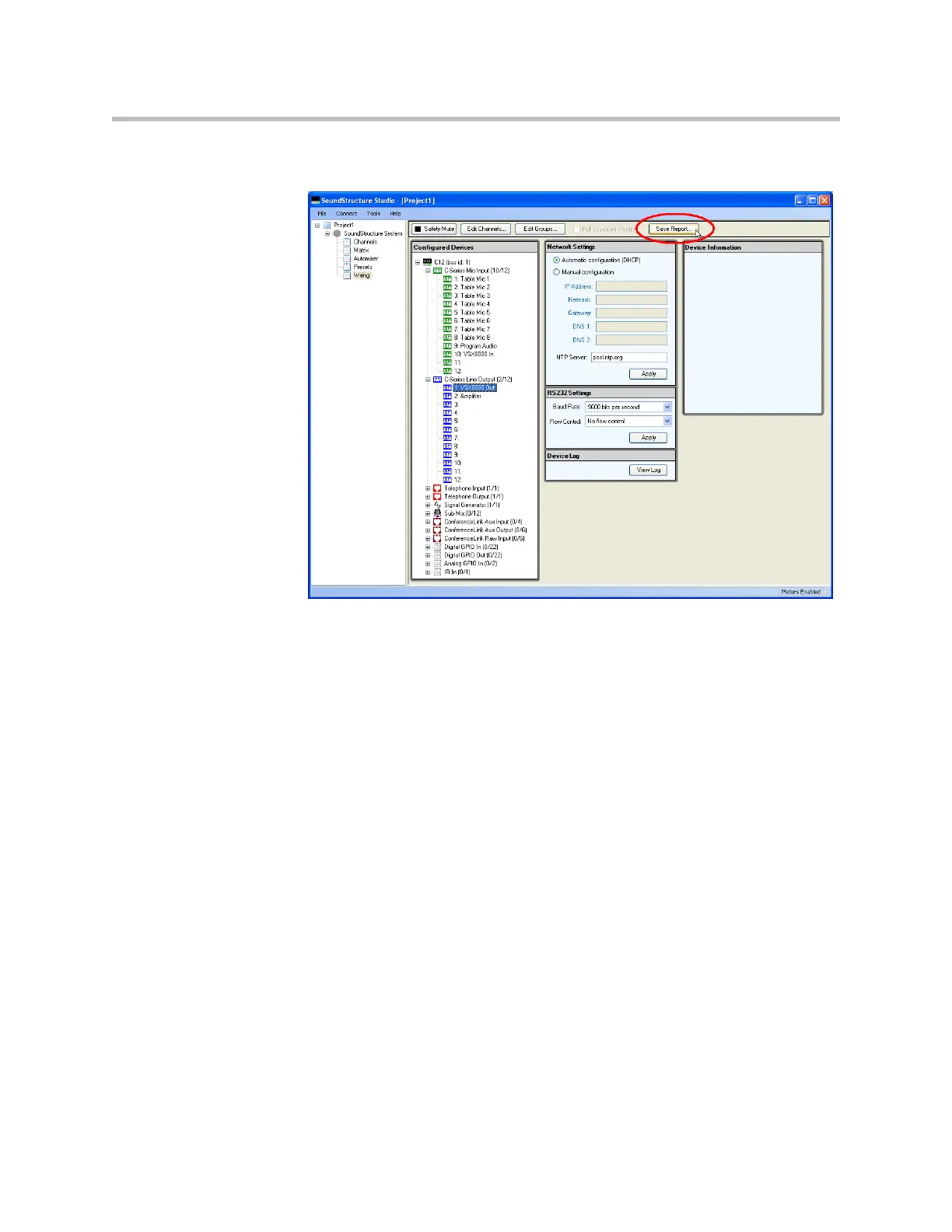

There is a wiring report that can be created by clicking the Save Report button
on the wiring page as shown in the following figure.
The wiring report for this system is shown next.
SoundStructure system: SoundStructure System
C12 (bus id: 1)
C-Series Mic Input
1: Table Mic 1
2: Table Mic 2
3: Table Mic 3
4: Table Mic 4
5: Table Mic 5
6: Table Mic 6
7: Table Mic 7
8: Table Mic 8
9: Program Audio
10: VSX8000 In
C-Series Line Output
1: VSX8000 Out
2: Amplifier
Plugin Card: Single Line Telephone
1: Phone In, Phone Out
Once the signal wiring is completed, the next step is to upload the settings to
the device.
