8 Mics With Reinforcement Of Wireless And Lectern Mics
This example shows how to use the sound reinforcement and conferencing
processing to create an audio conferencing solution that includes both a lectern
and wireless microphone for in-room reinforcement of the presenters’ micro-
phones and use of these microphones for conferencing in addition to tabletop
microphones. This example includes eight table microphones, a lectern micro-
phone, a wireless microphone, stereo program audio, a single telephony
interface, and three zones of audio amplifiers for reinforcement.

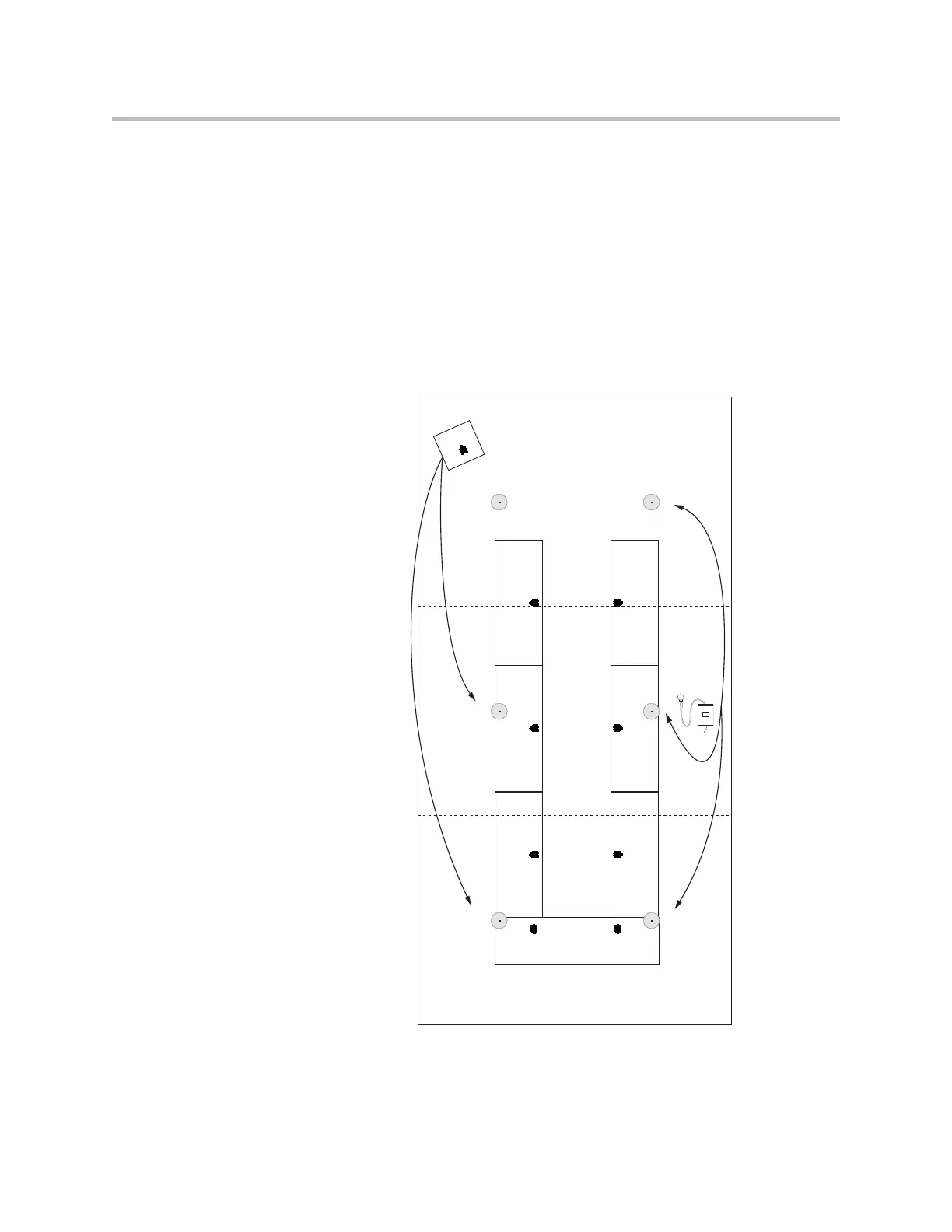

The layout for this style of room can be seen in the following figure. This figure
also shows the desired reinforcement levels from both the lectern and wireless
microphones into the room.
