Polycom SoundStructure C16

Installing SoundStructure Devices
8 - 15

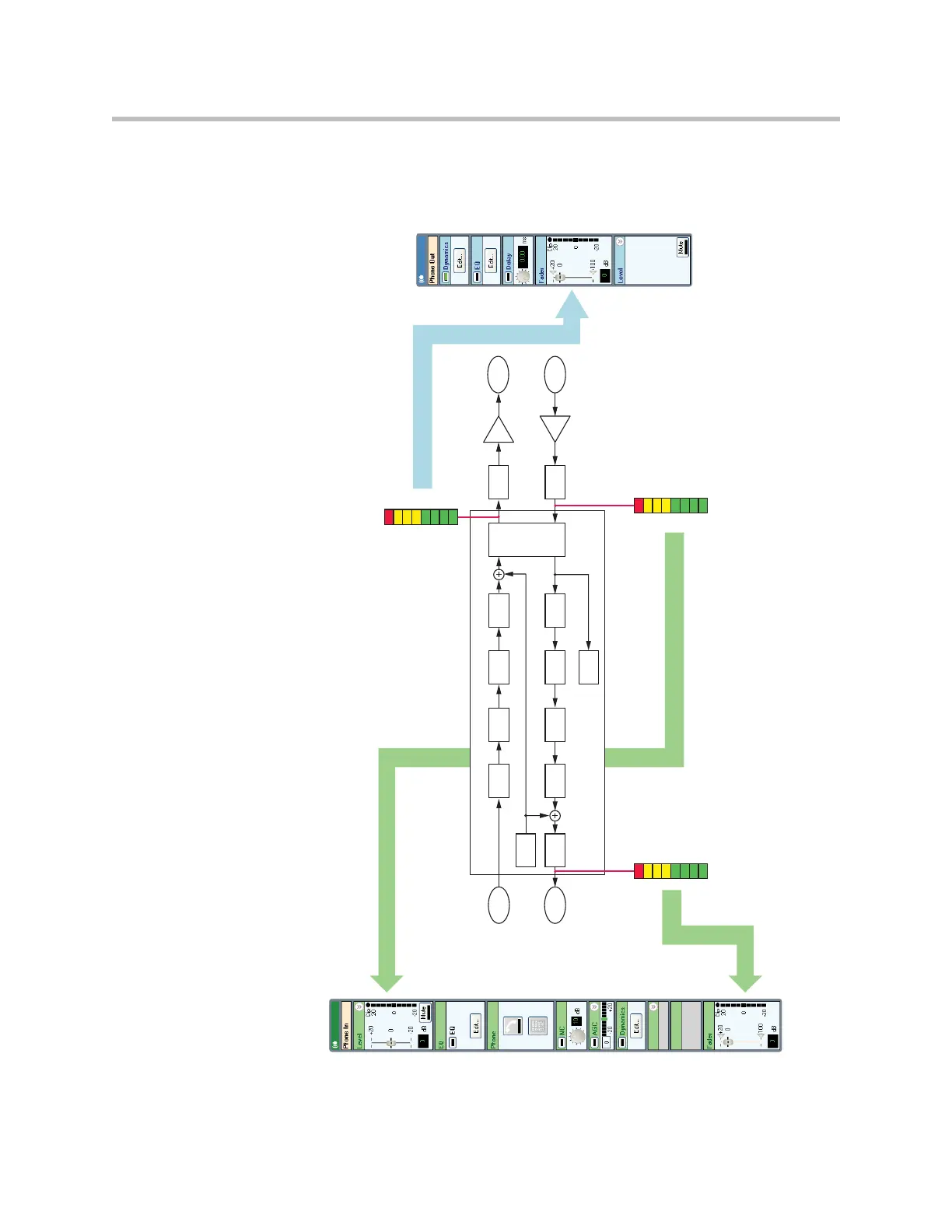

Phone In Channel
Phone Out
Channel
Fader
Tone
Generator
A/D
Converter
Analog
Gain
D/A
Converter
Analog
Gain
Input from
PSTN Line
Output to
PSTN Line
From Telco
to Matrix
To Telco
from Matrix
Noise
Cancellation
Parametric
Equalization
Dynamnics
Processing
FaderDelay
Line Echo
Cancellation
Call Progress
Detection
Automatic
Gain Control
Dynamics
Processing
Parametric
Equalization
Telephony Processing
level_pre
level_post
level_post
