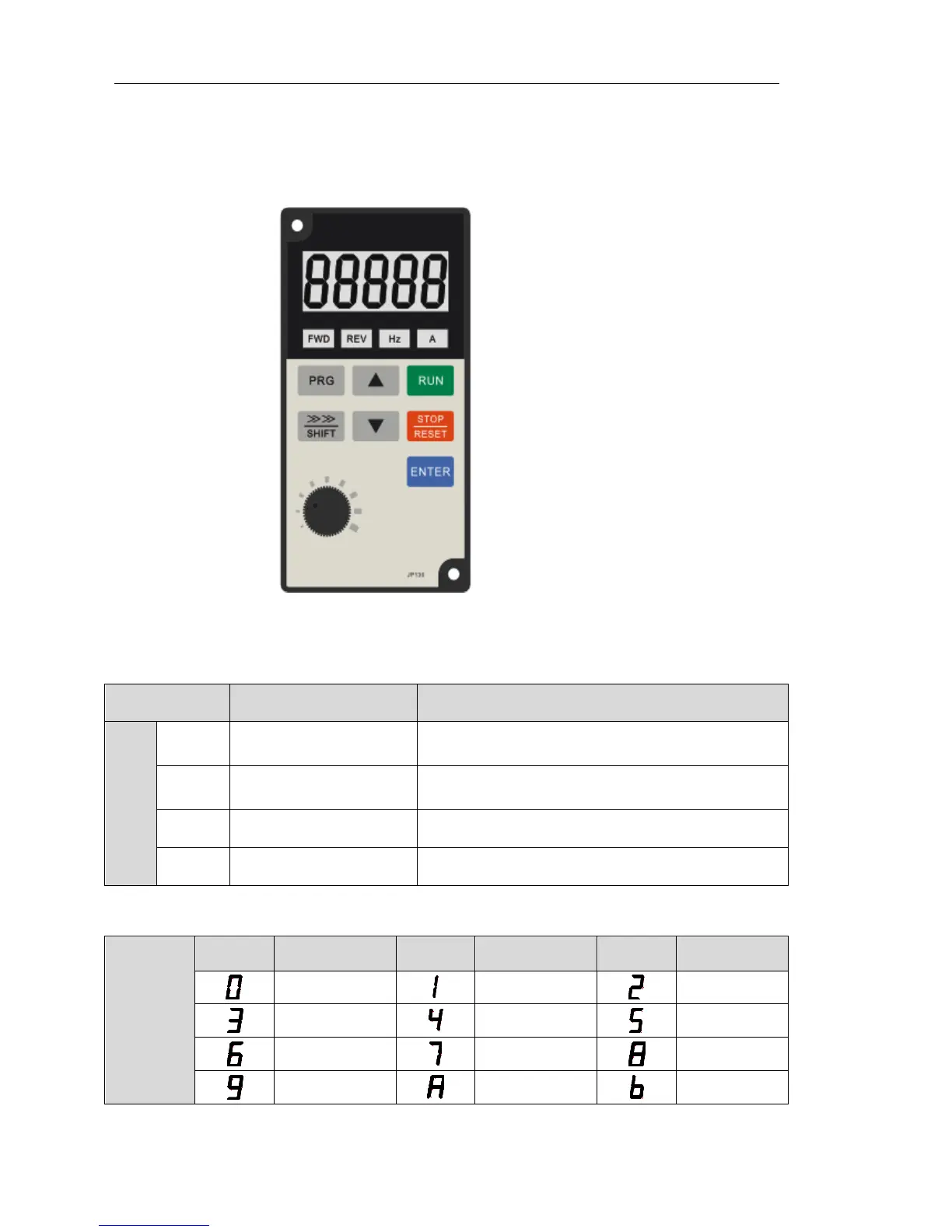

Chapter 3 Keyboard
3-1.Keyboarddescription
Keyboard Schematic Diagram
3-2.Keyboard Indicators
Indicator flag
Name
Meaning
Status Indicator
FWD
Forward running
lamp
ON means that the inverter is forward
operating.
REV
Reverse running lamp
ON means that the inverter is reverse
operating.
Hz
Frequency Indicator
Frequency unit of the inverter
A
Current Indicator
Current unit of the inverter
Correspondence that LED displays symbols and characters/digits is as follows:
Digital
display
area
Display
letters
Corresponding
letters
Display
letters
Corresponding
letters
Display
letters
Corresponding
letters
0
1
2
3
4
5
6
7
8
9
A
B
