Chapter 8 Installation and Spare Circuit
8-1.Operating environment
(1) Ambient temperature -10 ℃ to 40℃.
(2) Prevent electromagnetic interference, and away from interference sources.
(3) Prevent the ingress of droplets, vapor, dust, dirt, lint and metal fine powder.
(4) Prevent the ingress of oil, salt and corrosive gases.
(5) Avoid vibration.
(6) Avoid high temperature and humidity or exposure to rain, humidity shall be less
than 90% RH (non-condensing) .
(7) Never use in the dangerous environment of flammable, combustible, explosive gas,
liquid or solid.
8-2.Installation Direction andSpace
The inverter shall be installed in the room where it is well ventilated, the wall-
mounted installation shall be adopted, and the inverter must keep enough space around

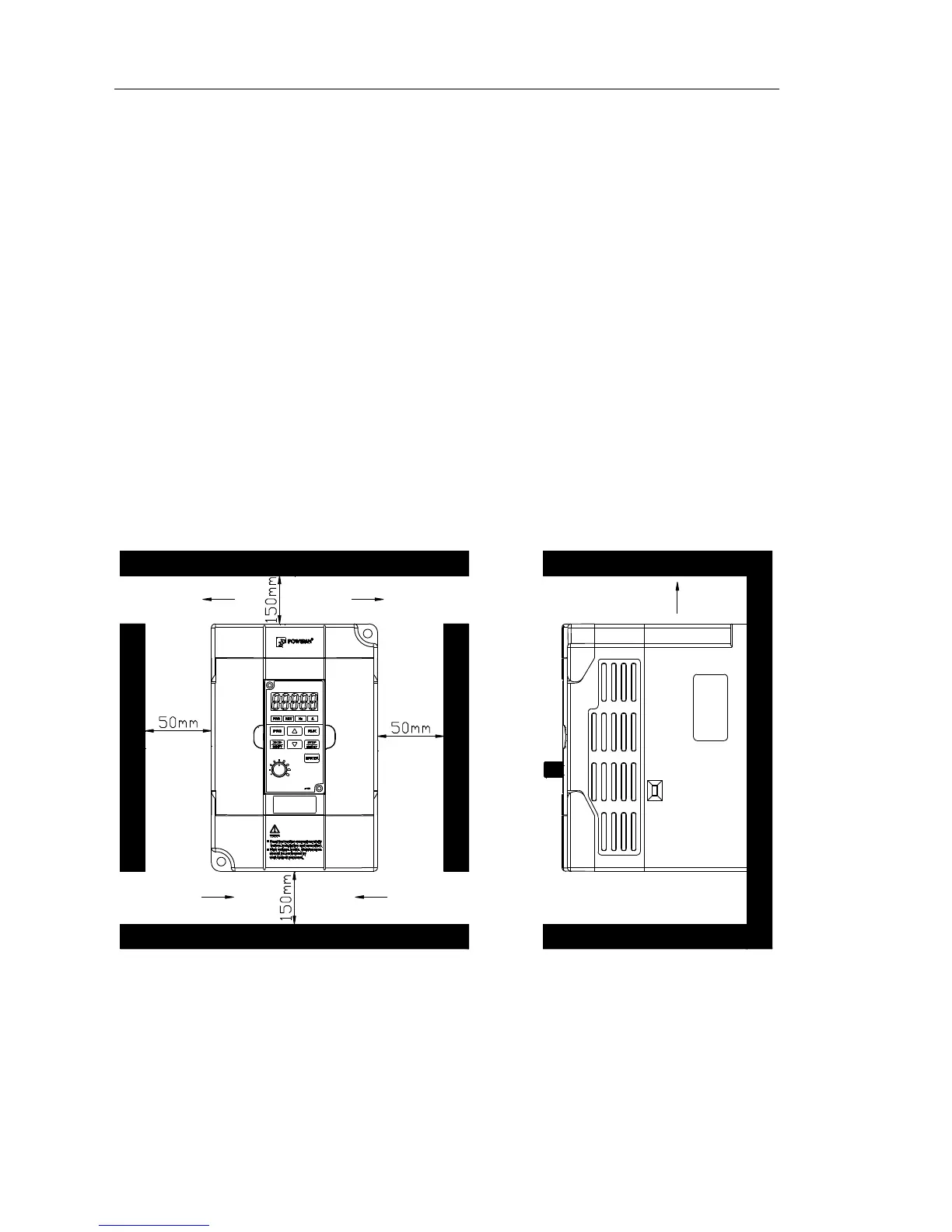

adjacent items or baffle (wall) . As shown below figure:
8-3.Wiring diagram
The wiring of inverter is divided into two parts of main circuit and control circuit.
User must correctly connect in accordance with the wiring circuit as shown in the
following figure.
