Sampling period (T) : refers to the sampling period of feedback amount, the
regulator operates once each sampling period. The greater sampling period, the slower
response.
PID control deviation limit: refers to allowable deviation between PID system
output value and closed-loop setting value, as shown in figure, PID regulator stops
adjustment. The reasonable setting to this function code can adjust the accuracy and
stability of PID system.
Settings
Output
frequency
Feedback
amount
t
t
Deviation
limit

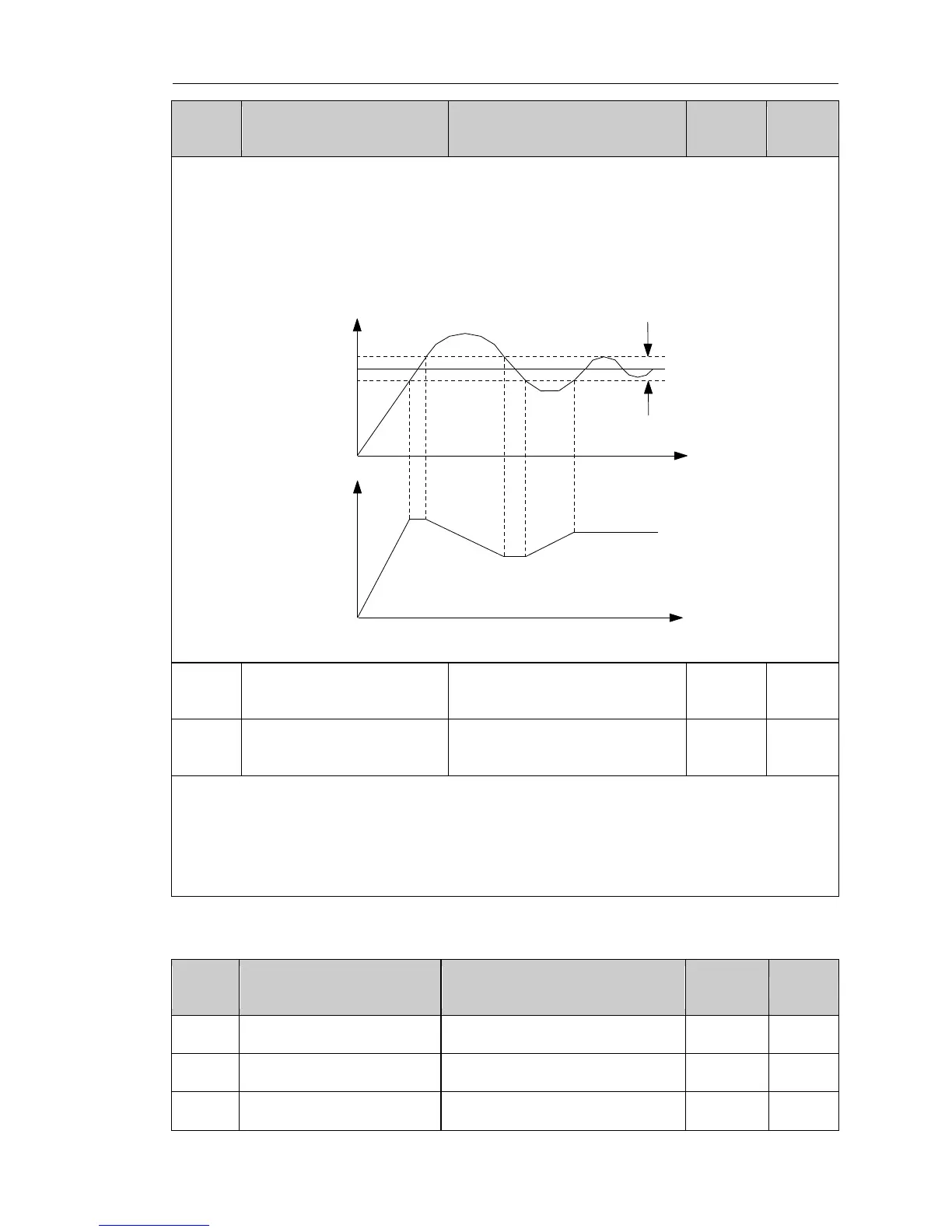

The relationship between deviation limit and output frequency
E2.09
Feedback disconnection
detection value
0.0 to 100.0%
0.0%
☆
E2.10
Feedback disconnection
detection time
0.0 to 3600.0s
1.0 s
☆
Feedback disconnection detection value: the detected value is relative to the full scale
(100%), the system has been detecting PID feedback, when the feedback value is less
than or equal to the feedback disconnection detection value, the system starts to detect
timing. When the detection time exceeds the feedback disconnection detection time, the
system will report PID feedback disconnection fault (E.PId) .
5-2-17.E3 Group - Virtual DI, virtual DO group
Code
Parameter name
Setting range
Factory
default
Change
E3.00
VDI1 function selection
0 to 25
0
★
E3.01
VDI2 function selection
0 to 25
0
★
E3.02
VDI3 function selection
0 to 25
0
★
