Chapter 4 Commissioning
21
Chapter 4 Commissioning
Commission-
ing

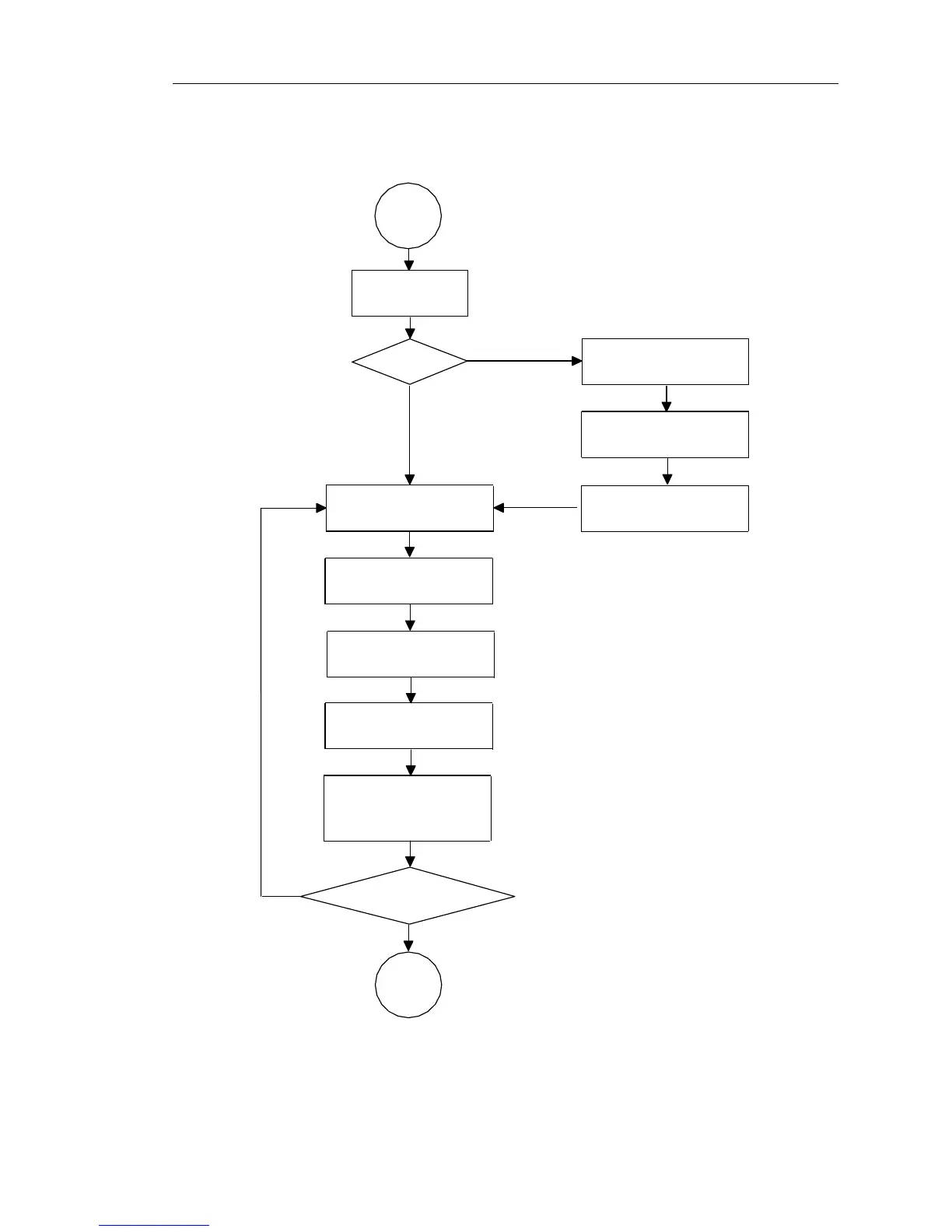

Select control manner
(setting F0.00)
F0.00=?
Configure correctly motor
parameters b0.01 to b0.05
group
Select appropriate
ac/deceleration time(setting
F0.05, F0.06)
Motor parameter auto
tunning fault(setting
b0.11)
Open-loop flux
vector control
V/F
0
2
Select run command
channel(setting F0.04)
Select appropriate frequency
command(setting F0.02)
Select motor start-up
mode(setting F3.00)
Start motor to run, observe
the phenomenon, if
abnormal, please refer to the
troubleshooting.
End
Select appropriate
ac/deceleration time(setting
F0.05/F0.06)
control
NO
YES
Achieve the required
control effect?
● Firstly confirm that AC input power supply voltage shall be within inverter rated
input voltage range before connecting power supply to the inverter.
● Connect power supply to the R, S and T terminals of the inverter.
● Select the appropriate operation control method.
