Precisa 320 XT - Connection to Peripheral Devices

■ 8 Data transfer to peripheral devices
54

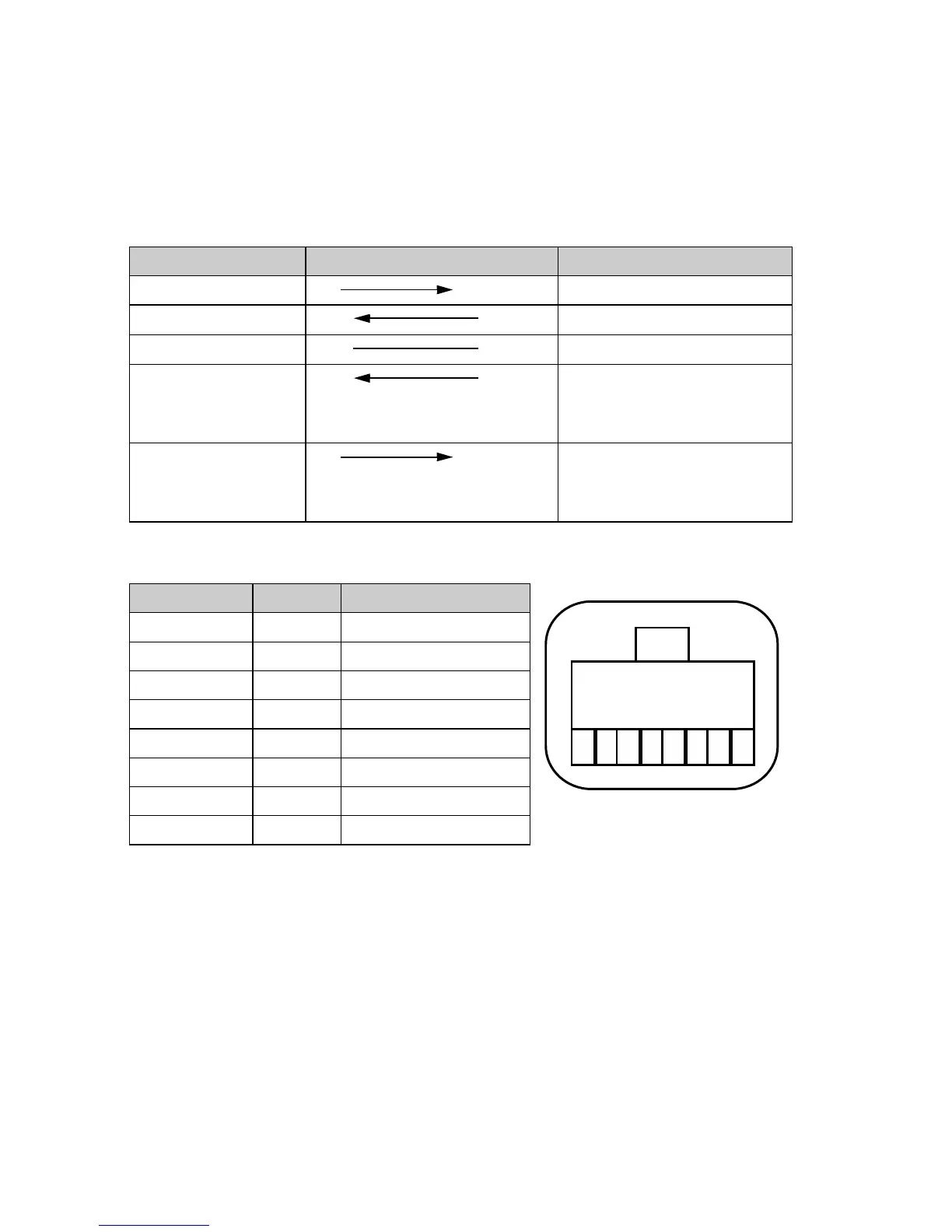

8.1 Connection to peripheral devices
• Standard, duplex connection including lines for optional hardware
handshake with the peripheral device
• Pinout of RJ45 socket
Balance RJ 45 D25 / D9 Peripheral device
RS 232 out 2 3 / 2 RS 232 in
RS 232 in
6 2 / 3
RS 232 out
GND
5 7 / 5
GND
CTS
3 20 / 4
DTR
(only need for hardware
handshake)
DTR 7 5 / 8 CTS
(only need for hardware
handshake)
Balance RJ 45 Remark
n.c. 1 Not connected
RS 232 out 2 Out (V24)
CTS 3 In (V24)
VDC 4 Out (9..16V)
GND 5 0V
RS 232 in 6 In (V24)
DTR 7 Out (V24)
EXTBUS 8 In (5V, logic)

