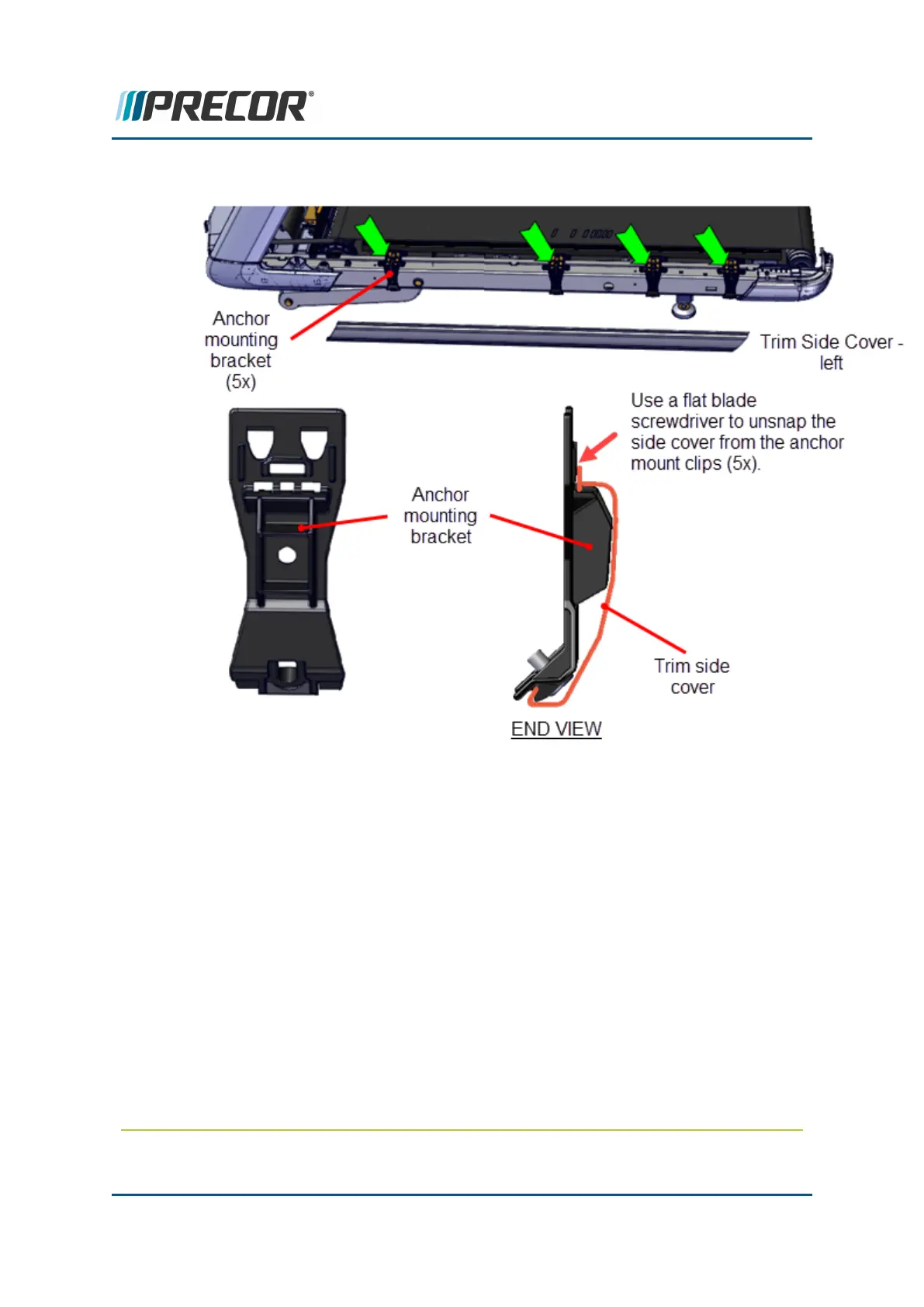

from the anchor mounts to remove the cover.
Installation Instructions
Repeat procedure for both the left and right covers.
1. Mount the trim side cover bottom rim flange onto the bottom of the four anchor
mounts making sure to fit the rim flange alignment cutout (located at the bottom rear
of the cover) into the rear white anchor bracket. Make sure that the cover is securely
attached at all five anchor mounts.
2. Next use the palm of your hand to strike the top of the cover at each of the five anchor
mounts to engage and lock the cover in place. Make sure that the trim side cover is
securely attached at each of the five anchor mounts.
3. Reinstall the hood transition cover, see "Covers and Panels Replacement" on
page 80.
4. Reinstall the trim end caps, see "Trim End Cap Covers Replacement" on page 88.
5. Reinstall the trim landing cover, see "Covers and Panels Replacement" on page 80.
6. Reinstall the hood cover, see "Hood Cover Replacement" on page 82.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 91
