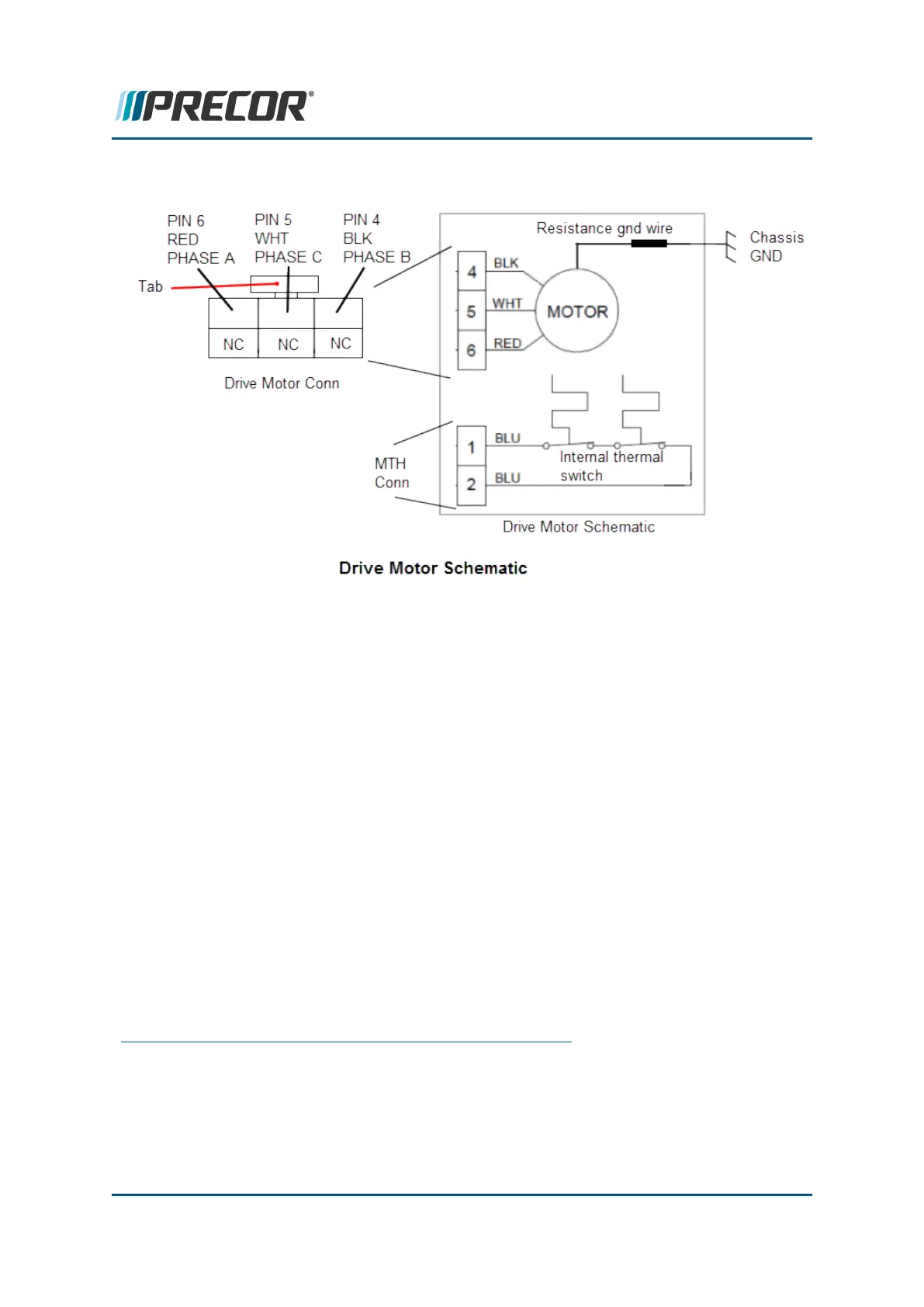

Drive Motor Cable Schematic
Procedure
Review entire procedure before starting.
Removal Instructions
1. Switch the power OFF and unplug
1
the power cord.
2. Remove the hood cover, see "Hood Cover Replacement" on page 82.
3. Disconnect the Motor Controller "MTH" and "MOTOR" electrical connections:
a. Remove the two left side MC
2
fasteners and loosen the two right side fasten-
ers. Then slide the MC base to the left and remove the MC from the fasteners,
see "Motor Controller (MC) Replacement" on page 107.
b. Lift the front of the MC just enough to access and disconnect the MC "MTH"
I/O
3
connector. Then lift the rear of the MC just enough to access and dis-
connect the MC "MOTOR" I/O connector.
c. Remove the MOTOR interface cable from the three frame routing cable
clamps.
1
Disconnect a device power cord plug or cable connector from the power receptacle or out-
let.
2
Motor controller, motor controller unit, or motor controller module: used on treadmills, con-
tains the LPCA and motor controller functionality.
3
Input and Output Interface.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 131
6 Replacement Procedures
Drive Motor Replacement
