Side Arm Upper/Lower Covers Replacement
Side Arm Upper/Lower Covers Replacement
This procedure replaces the left/right upper and lower side arm covers.

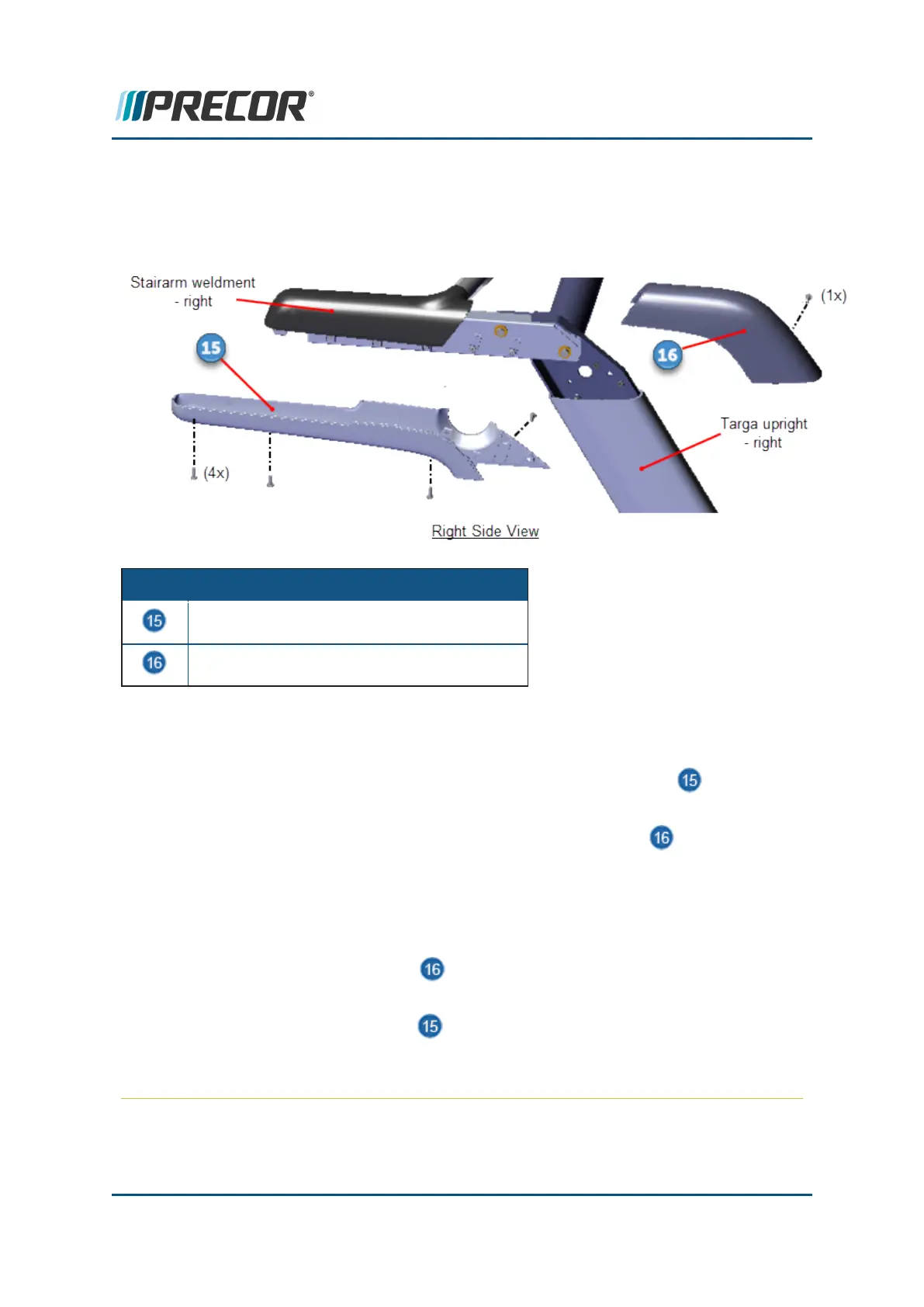

ID Description
Lower Side Arm Cover - right
Upper Side Arm Cover - left
Removal Instructions
Repeat procedure for both the left and right upper and lower side arm covers.
1.
Remove the four #3 Phillips screw fasteners from the side arm cover . Pull the
cover down and backward to remove. Retain part(s) and/or fastener(s) for installation.
2.
Remove the one #3 Phillips screw from the upper side arm cover . Pull the cover
up and forward to remove. Retain part(s) and/or fastener(s) for installation.
Installation Instructions
Repeat procedure for both the left and right upper and lower side arm covers.
1.
Position the upper side arm cover onto the side arm weldment and press to lock
the tab clips in place. Secure using the one #3 Phillips screw,
2.
Position the lower side arm cover onto the side arm weldment and press to lock
the tab clips in place. Secure using the four #3 Phillips screws.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
