Removal
1. Switch the power OFF and unplug
1
the power cord.
2. Remove the hood cover, see "Covers and Panels Replacement" on page 80, and
left/right Landing Trim covers, see "Covers and Panels Replacement" on page 80.
3. Remove the left and right Trim End Cap covers, see "Trim End Cap Covers Replace-
ment" on page 88.

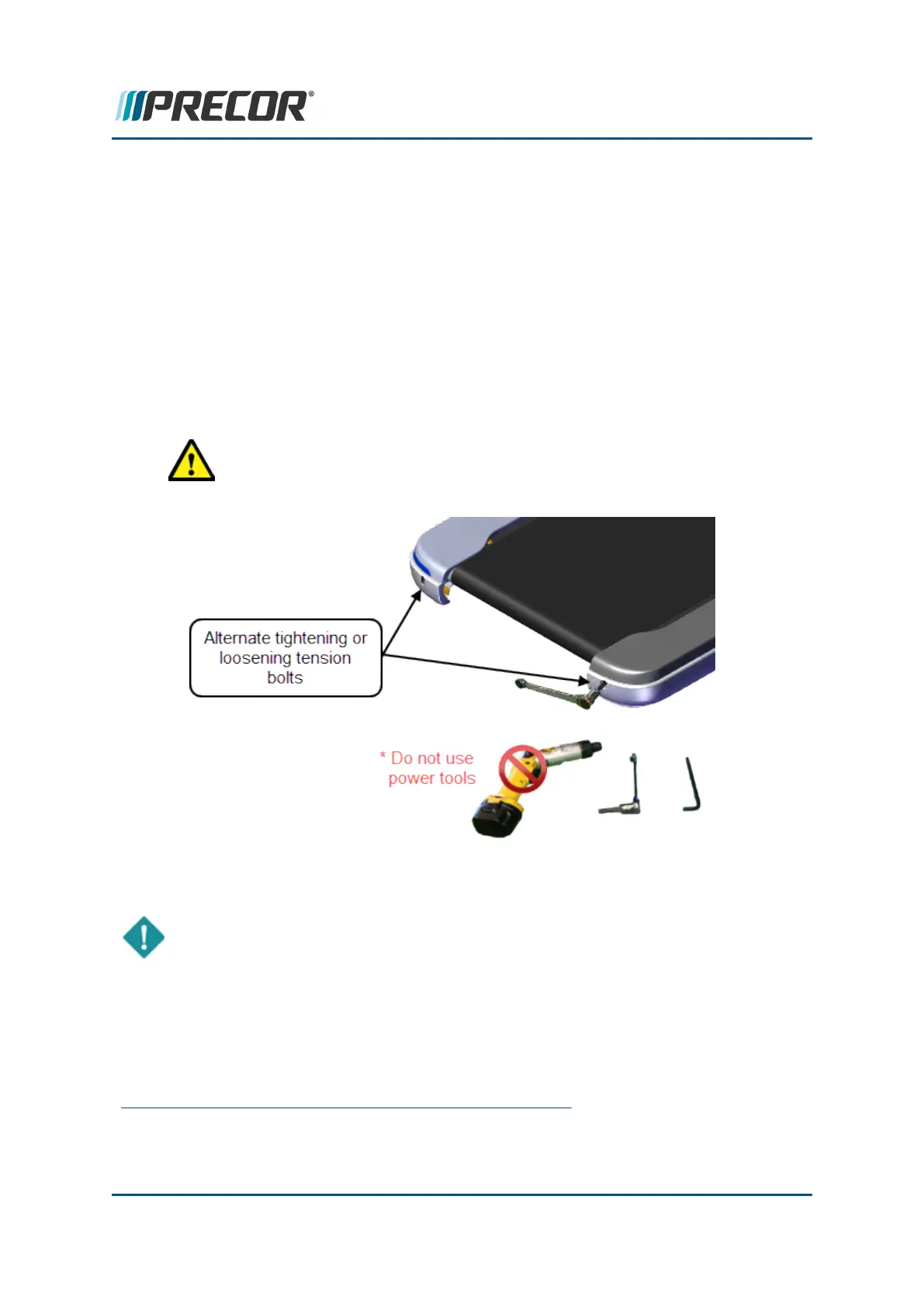

4. Slowly relax the running belt tension using a 5/16" hex key socket and ratchet (only
use hand tools and not power tools). Alternately loosen the left and right tension
adjustment bolts in 1/4 turn increments so that the running belt tension is evenly
relaxed. Do not use power tools which can easily under or over tighten the tension
damaging the belt tension hardware.
CAUTION: Only use hand tools to adjust tension. Power tools can easily over
and/or under tension causing damage to the belt and/or tension hardware
mechanism.
5. Use a pen or tape to identify the left and right ends of the roller prior to removal. The
roller must be reinstalled with the same left/right orientation.
IMPORTANT: Make sure to mark the left and right ends of the take-up roller prior to
removal. The roller must be reinstalled with the same left/right orientation.
1
Disconnect a device power cord plug or cable connector from the power receptacle or out-
let.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 145
6 Replacement Procedures
Take-up Roller Replacement
