Trim End Cap Covers Replacement
Trim End Cap Covers Replacement

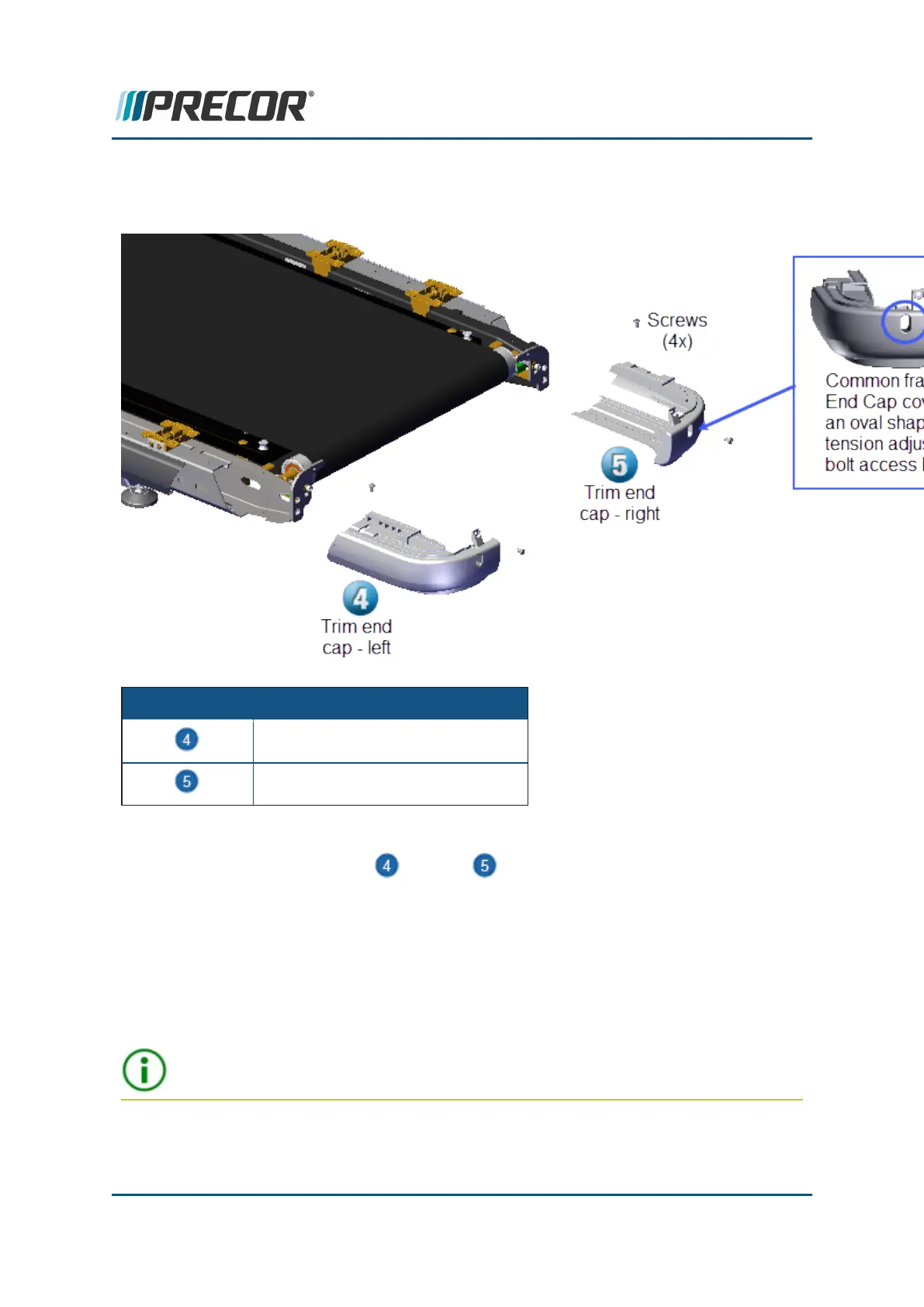

ID Description
Trim End Cap - left
Trim End Cap - right
Removal Instructions
Repeat procedure for both the left and right end cap covers.
1. Remove the hood cover, see "Hood Cover Replacement" on page 82.
2. Remove the left and right trim landing covers, see "Covers and Panels Replacement"
on page 80.
3. Remove the two #3 Phillips trim end cap cover fastener screws. One screw on the top
and one screw on the back of the cover. Then slide the cover rearward to remove.
Retain part(s) and/or fastener(s) for installation.
TIP: Use a short stub #3 Phillips screwdriver to remove the bottom end cap
fastener.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
