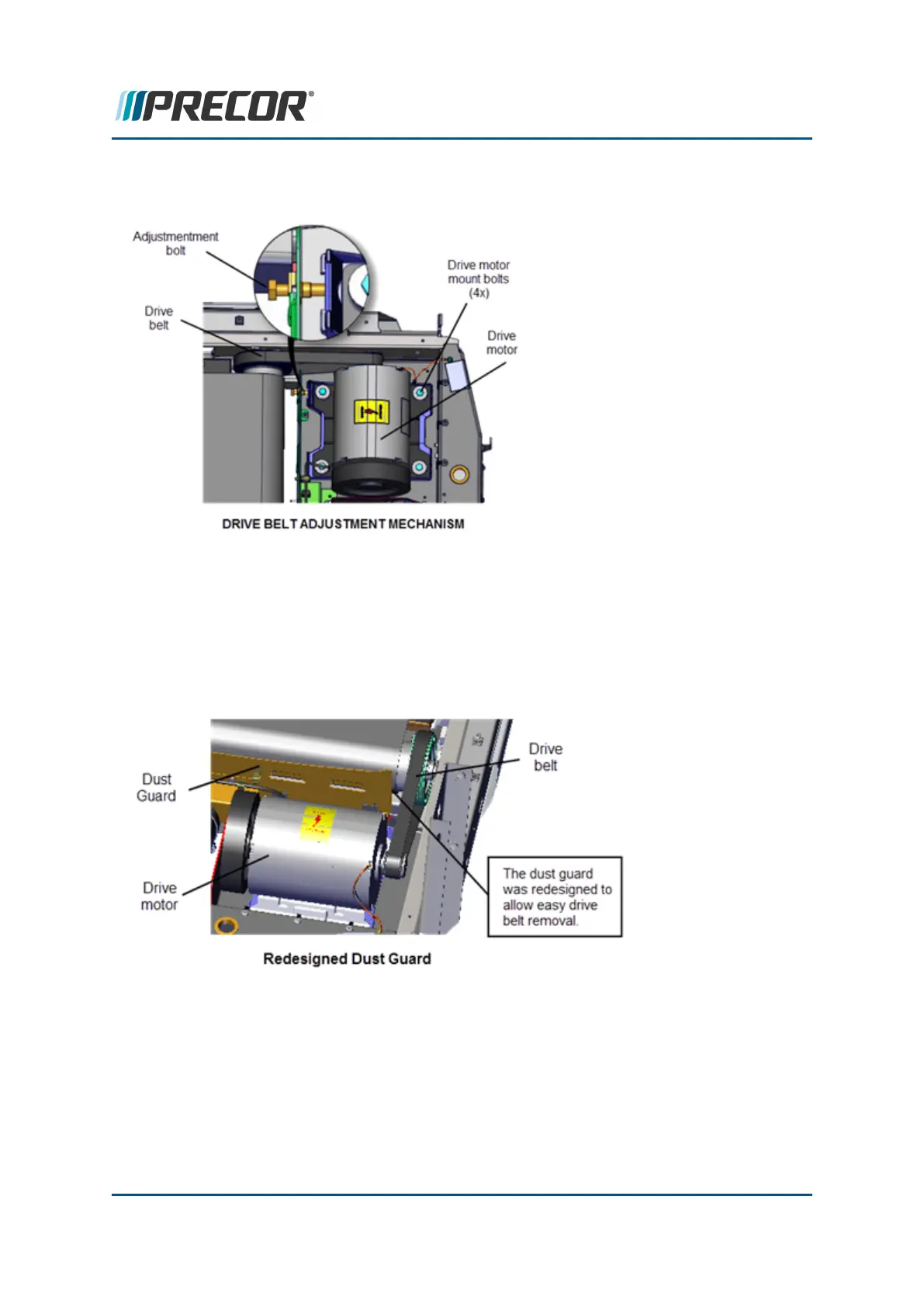

error. Loosen the four motor mount bolts, use the belt tension adjustment bolt to tension the
belt and then retighten the motor mount bolts securing the belt tension and motor.
Dust Guard
The common frame dust guard was redesigned (trimmed back on the left side) so that the
drive belt can be easily removed. On the legacy frame, the top of the dust guard extends to
the inside edge of the frame rail blocking the drive belt from being removed. Removing the
drive belt required the dust cover to be removed also. On the common frame, the dust cover
no longer blocks the belt and does not need to be removed to remove the drive belt.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 242
9 Theory of Operation
TRM600/700/800 Common Frame Overview
