Drive Belt Replacement
About

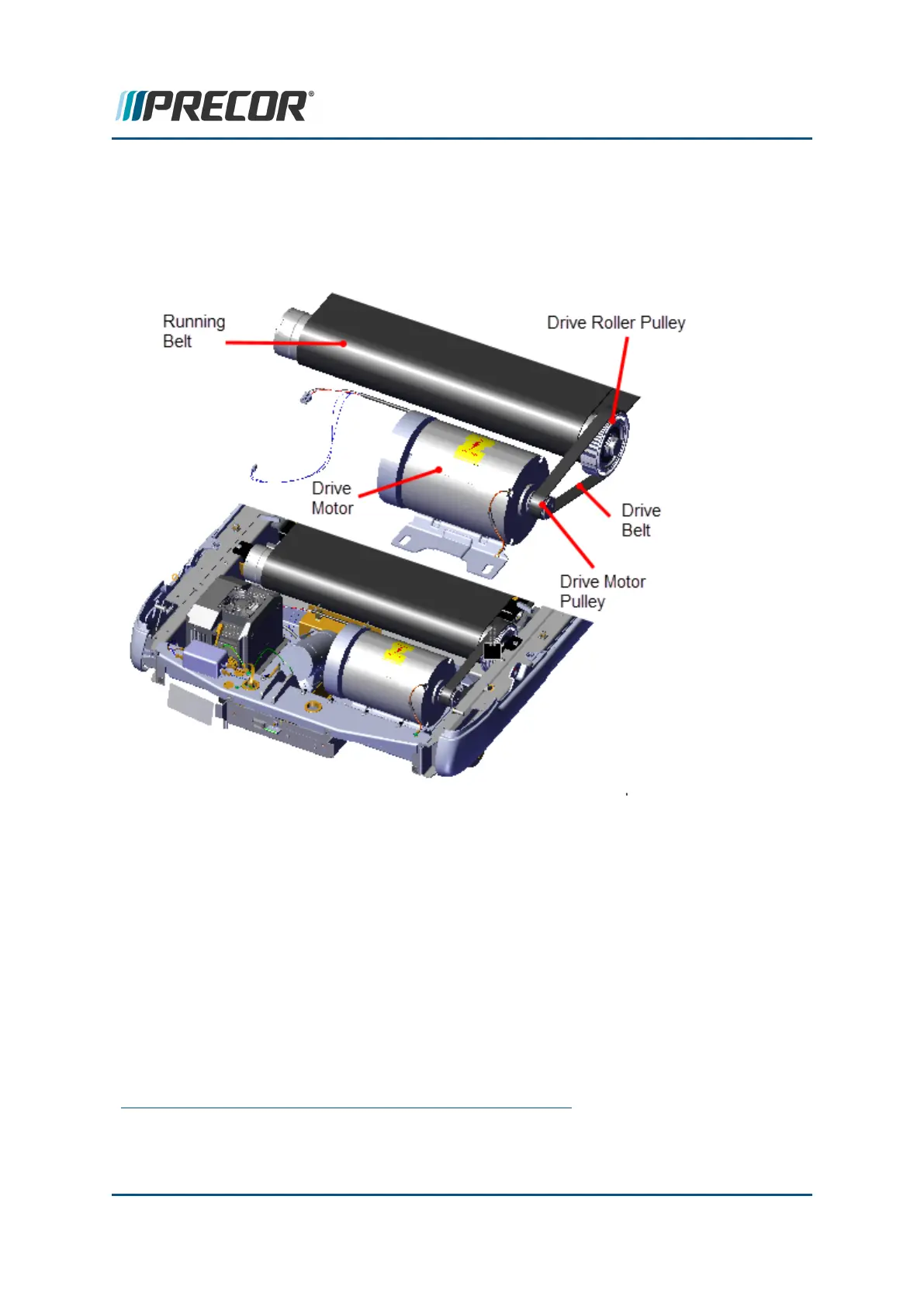

This procedure provides instruction to remove and install the Drive Belt
Procedure
Review entire procedure before starting.
Removal Instructions
1. Switch the power OFF and unplug
1
the power cord.
2. Remove the hood cover, see "Covers and Panels Replacement" on page 80.
3. Use a 5/16" hex key socket and ratchet to relax the running belt tension by alternately
loosening the left and right belt tension adjustment bolts in 1/4 turn increments. Use
this method to evenly remove the left and right belt tension. Do not use power tools
1
Disconnect a device power cord plug or cable connector from the power receptacle or out-
let.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 125
6 Replacement Procedures
Drive Belt Replacement
