Lift Motor Replacement
About

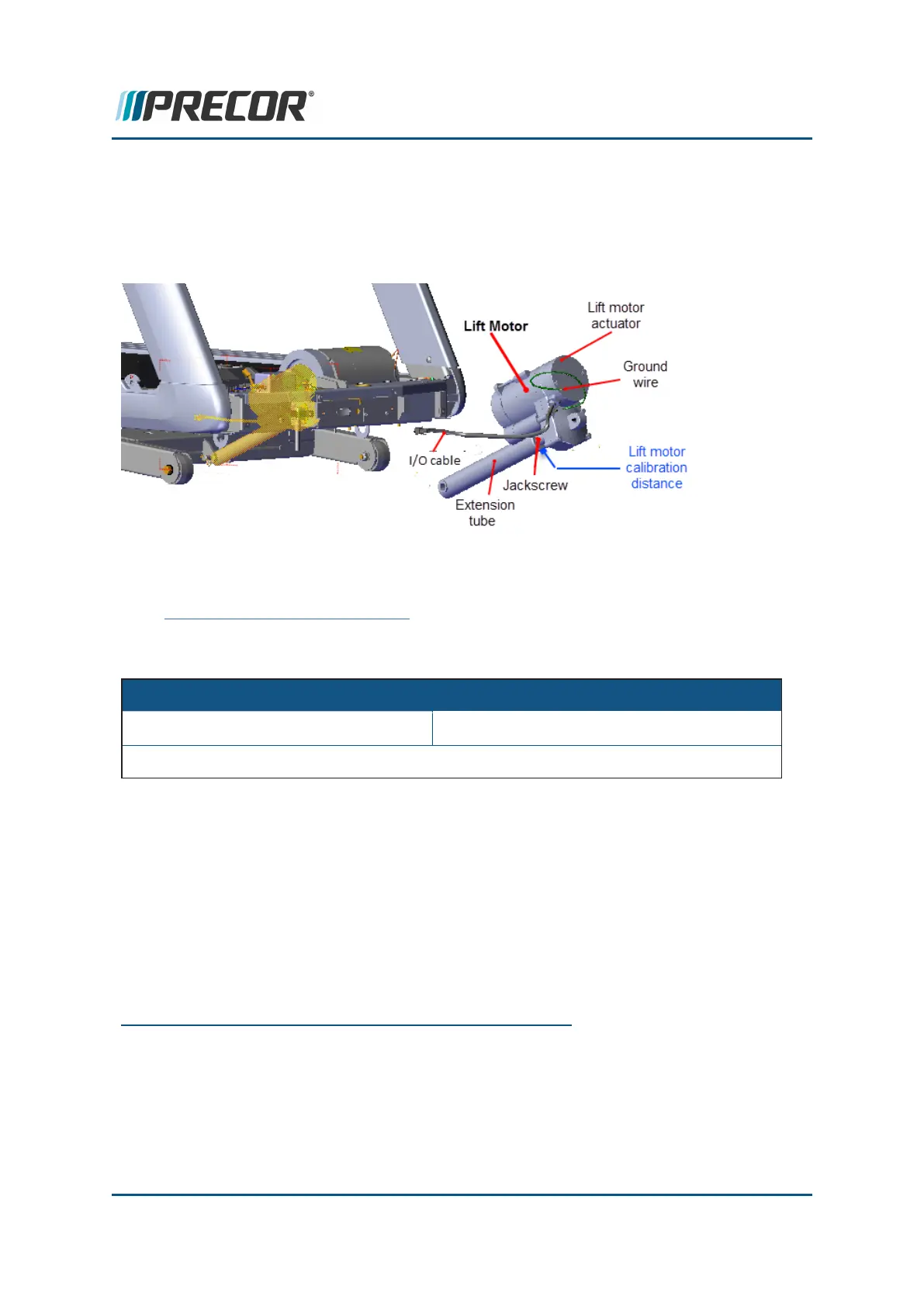

This procedure provides instruction to replace the Lift Motor.
Videos
Lubricate the lift motor jackscrew
Specification
System Component Specification
Lift Motor Calibration Distance* 1 1/8 in - 1 3/16 in (2.8 cm - 3.0 cm)
Note: * Calibration distance is specified at incline level 0.
Lift Motor Fuse
The lift motor fuse (2 Amp) is located on the LPCA
1
board in the MC
2
module. Remove the
MC bottom cover to access the fuse. Use a small standard screwdriver to unsnap the clip
fasteners and remove the cover.
1
Lower Printed Circuit Assembly board; also refered to as the Lower PCA or simply as the
lower board. On treadmills, it is the console to base function interface and the motor con-
troller unit (MCU). On self-powered units, it is the lower PCA console to base function inter-
face.
2
Motor controller, motor controller unit, or motor controller module: used on treadmills, con-
tains the LPCA and motor controller functionality.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 156
6 Replacement Procedures
Lift Motor Replacement
To Next Page
