MC Fan Motor Connector

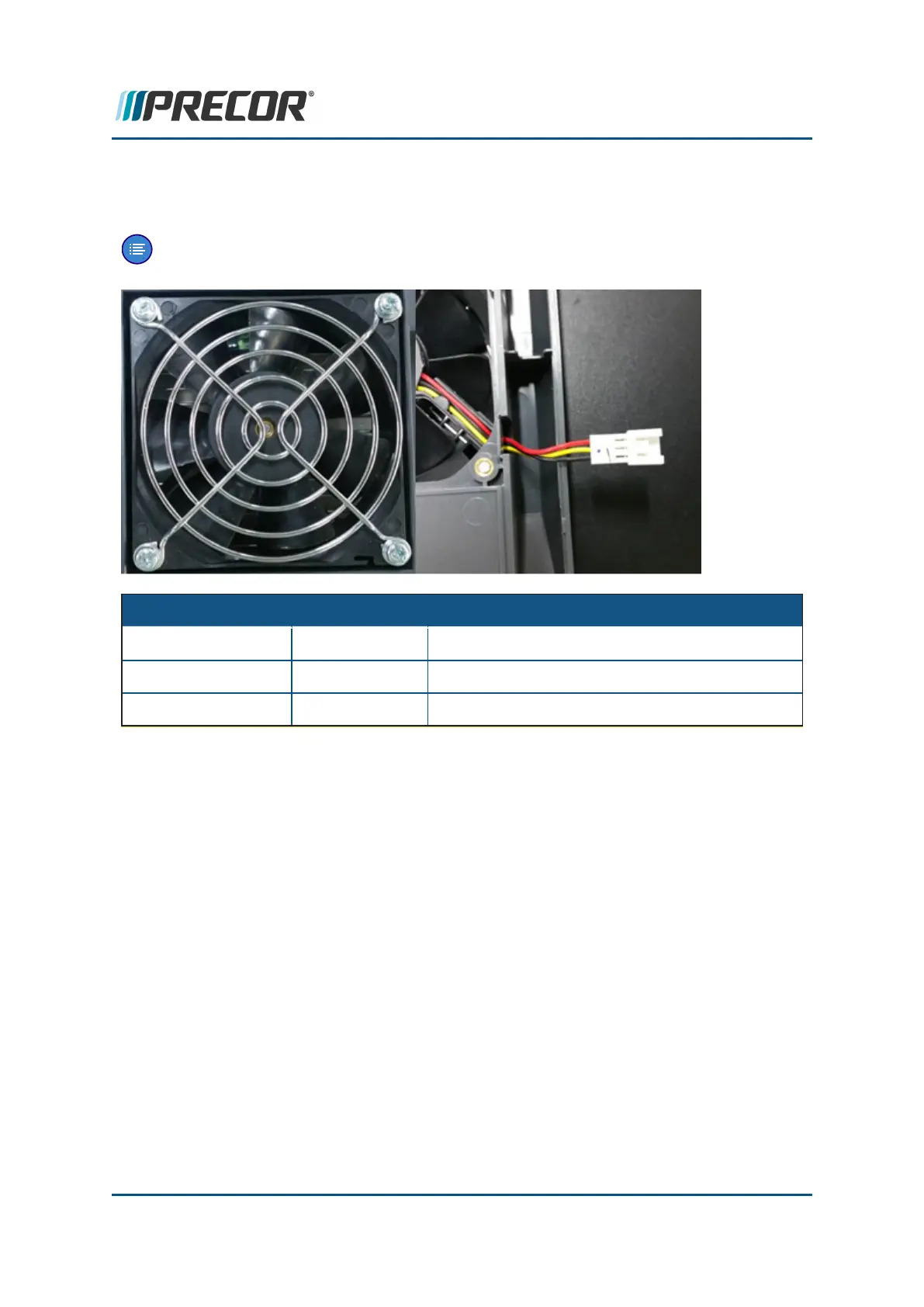

The fan motor interface cable connector is located under the MC top cover.
Note: For MC Fan replacement, see "Motor Controller Fan Replacement" on
page 120.
Component PIN Description
Fan motor 1 Black (24V GND)
2 Yellow (Fault signal)
3 Red (+24 Vdc)
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 114
