1. Reconnect the motor static bleed resistor ground wire placing the green ground screw
through one of the tooth lock washers, the ground wire ring terminal, and the second
tooth lock washer in that order. Fully tighten using the 5/16 " hex head socket (or nut
driver). Make sure to include the two tooth lock washers to ensure good electrical con-
tact with the frame weldment.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 135
6 Replacement Procedures

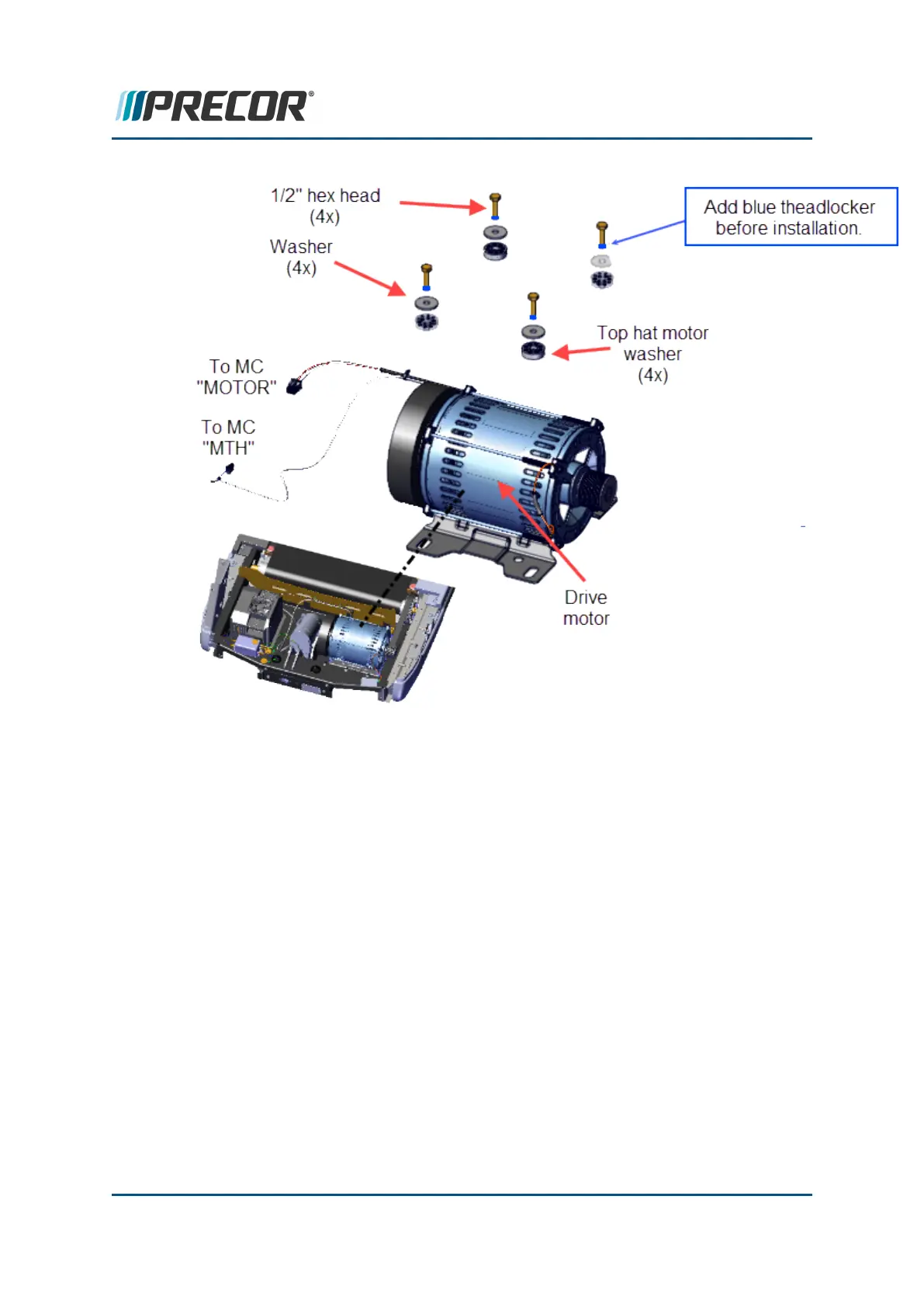

Drive Motor Replacement
