mechanism. The legacy frame take-up roller part is no longer available, so the common
frame roller is now the replacement part for the legacy frame take-up roller.

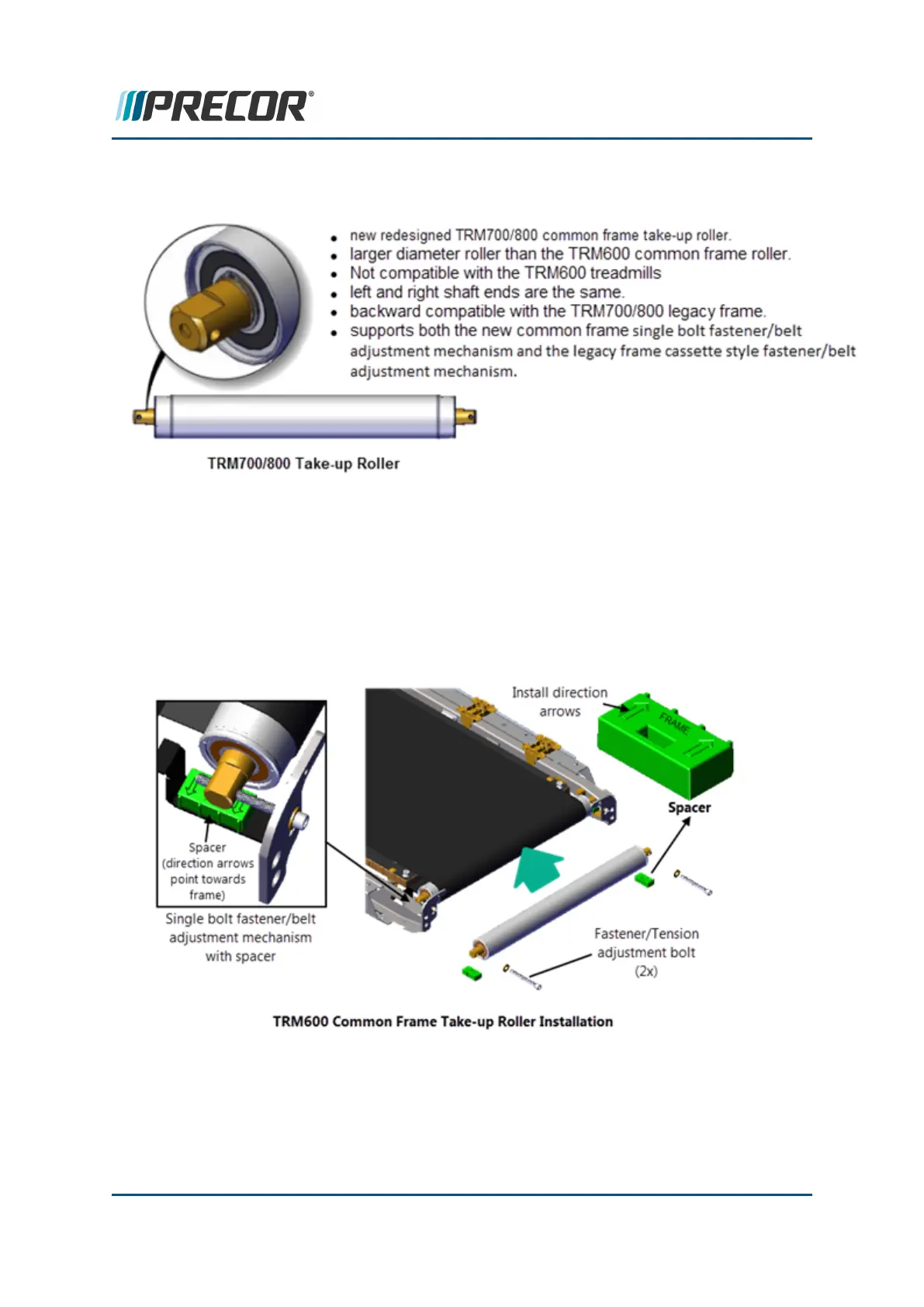

TRM600 Take-up Roller Installation
The TRM600 common frame take-up roller installation is slightly different than the
TRM700/800 because the TRM600 take-up roller is a smaller diameter roller. A spacer is
required to raise the roller to the correct mounting height. Other than that, there is no dif-
ference between the TRM600 and TRM700/800 installation and belt adjustment procedure.
All common frame treadmills use the single bolt fastener/belt tension adjustment mech-
anism.
TRM700/800Take-up Roller Installation
The TRM700/800 common frame take-up roller installation and belt adjustment mechanism
has changed from the legacy frame cassette style mechanism to the single bolt
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 239
9 Theory of Operation
TRM600/700/800 Common Frame Overview
