a. If the tension is not within the belt tension specification; continue procedure to
adjust the tension to specification.
b. If the belt tension is within the belt tension specification; verify the machine
operation and return to service, see "Operation Verification" on page 23.
Belt Condition Drive Belt Tension
New 100-120 lbs (45-54 kgs)
Used 80-90 lbs (36-41 kgs)

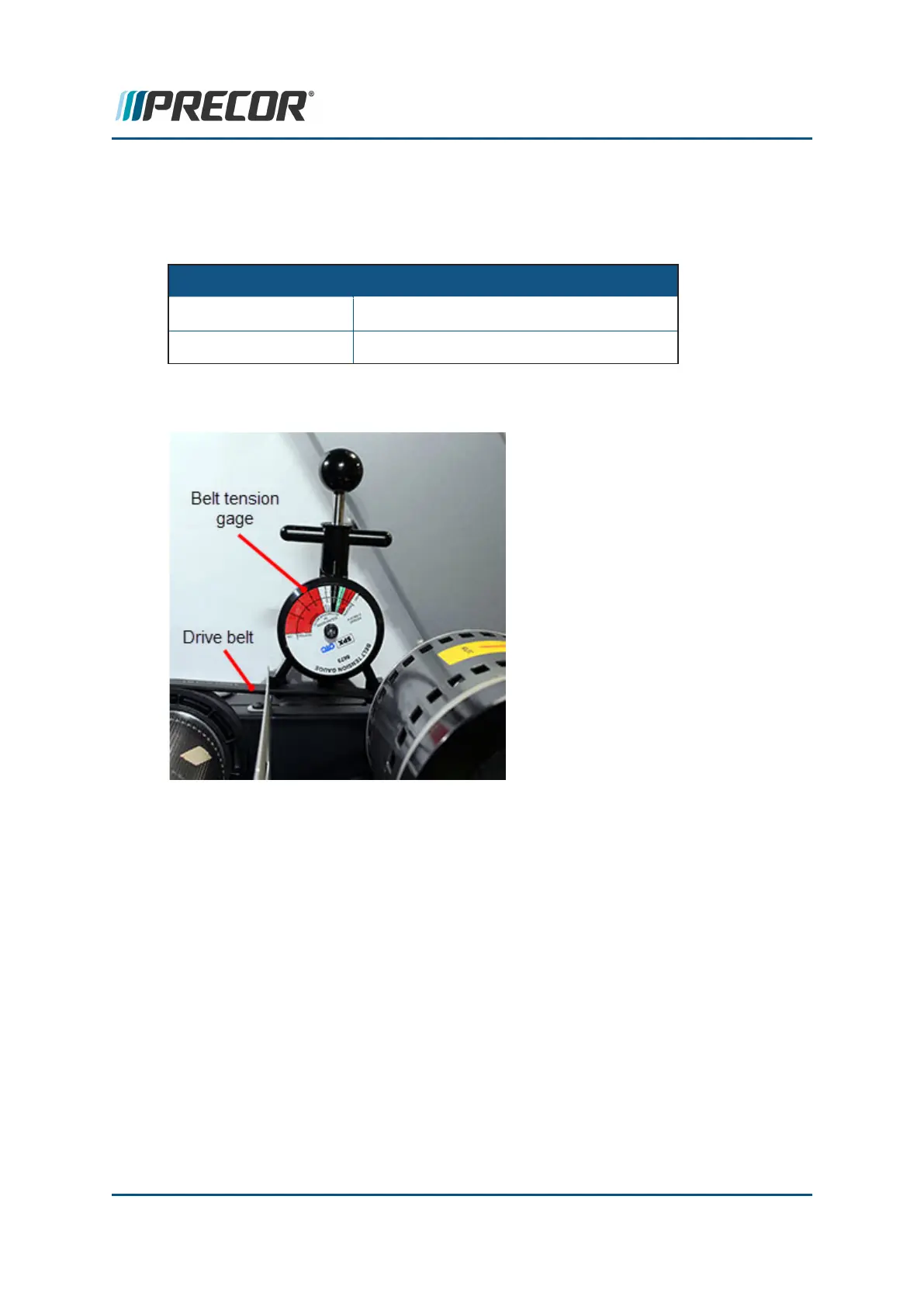

6. Place the belt tension gauge onto the Drive Belt mid distance between the drive motor
and drive roller pulleys.
7. Adjust the belt tension to specification:
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 59
5 Adjustment Procedures
Drive Belt Tension and Alignment Adjustment
