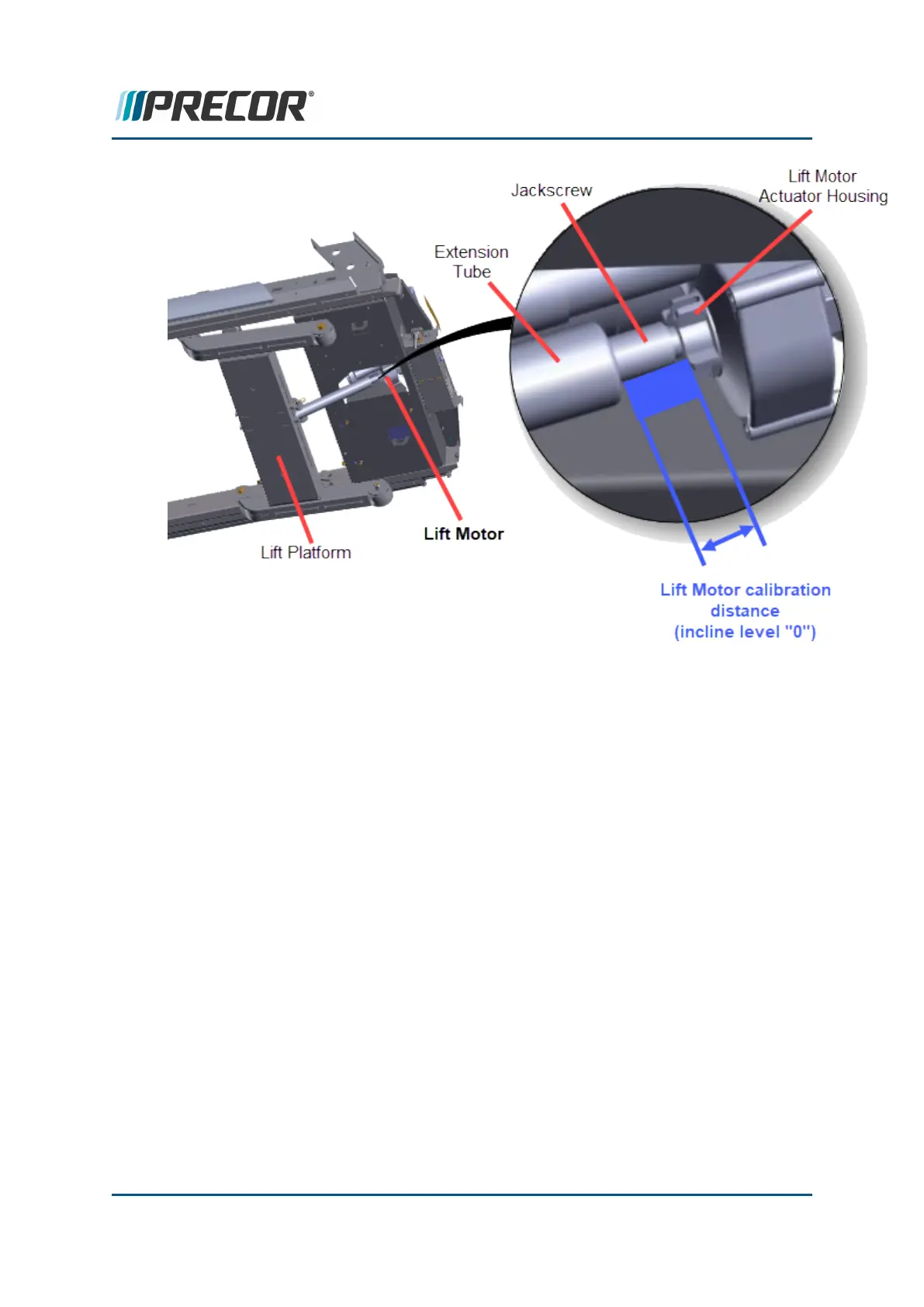

Lift motor calibration adjustment
6. Disconnect the extension tube from the lift platform weldment mounting bracket by
removing the hitch pin and clevis pin. Retain part(s) and/or fastener(s) for installation.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 71
5 Adjustment Procedures
Lift Motor Calibration
