Assembling the Treadmill
7
5. The upright support attaches to the base frame side bracket using two
M8 x 15 mm socket head screws and 8.4 mm washers. To secure the
upright support, place each screw and washer on the 6 mm T-handle
hex key and insert it through the cutout in the upright support. Partially
tighten so the upright is stable, but leave room for adjustments.

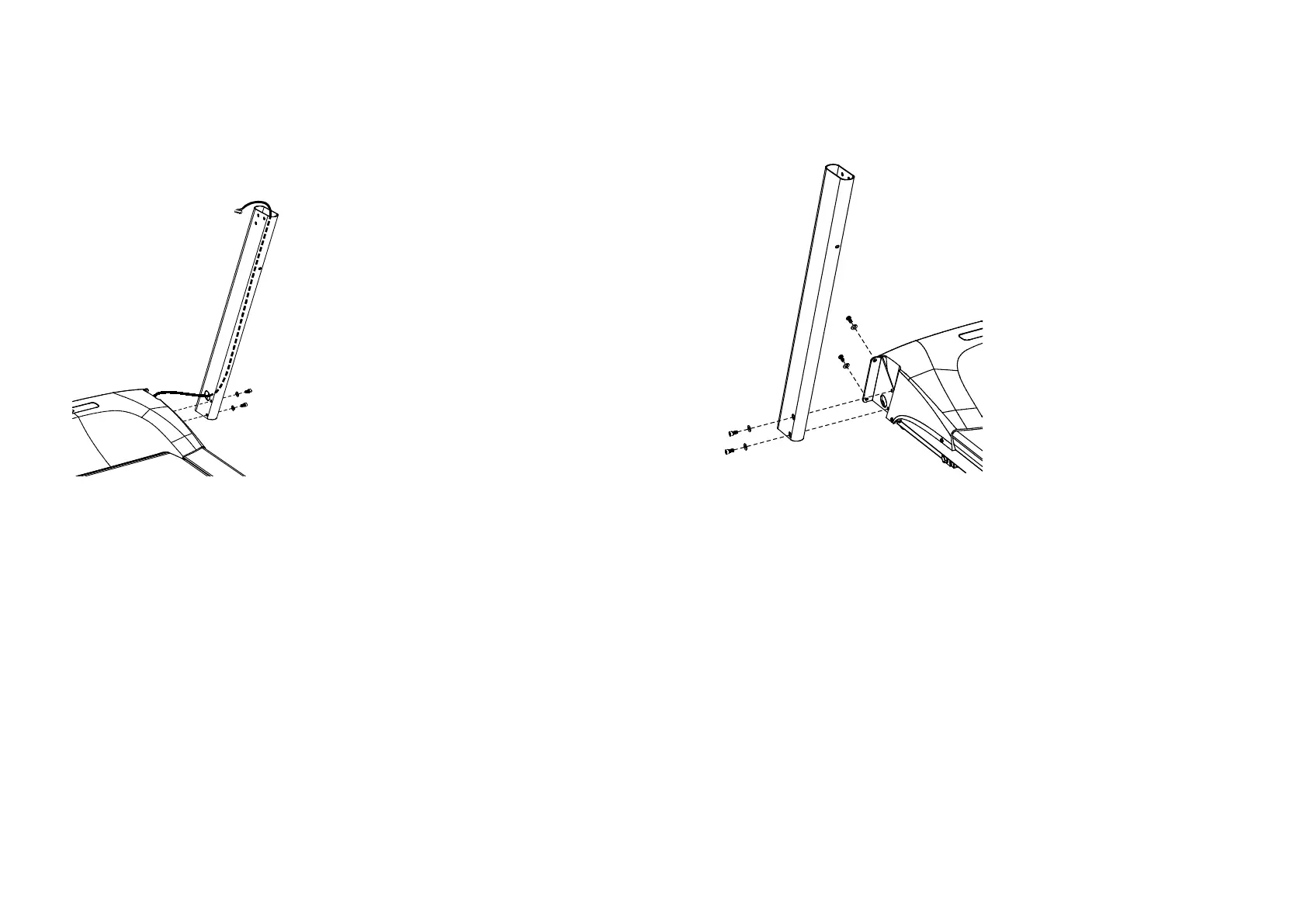

Figure 6: Side mounting holes on upright support
6. Repeat this procedure to attach the right upright support. Partially tighten the
fasteners.
Figure 7: Right upright support attachment
