Treadmill 211 Assembly Guide 8
Attaching the Handrail Assembly
The handrail assembly arrives with cables already threaded inside of it.
Before attaching the handrail assembly, remove any kinks in the cable.
To attach the handrail assembly:
1. Ask your assistant to hold the handrail assembly while you connect the base
unit data cable between the left base support and the left side of the handrail
assembly.

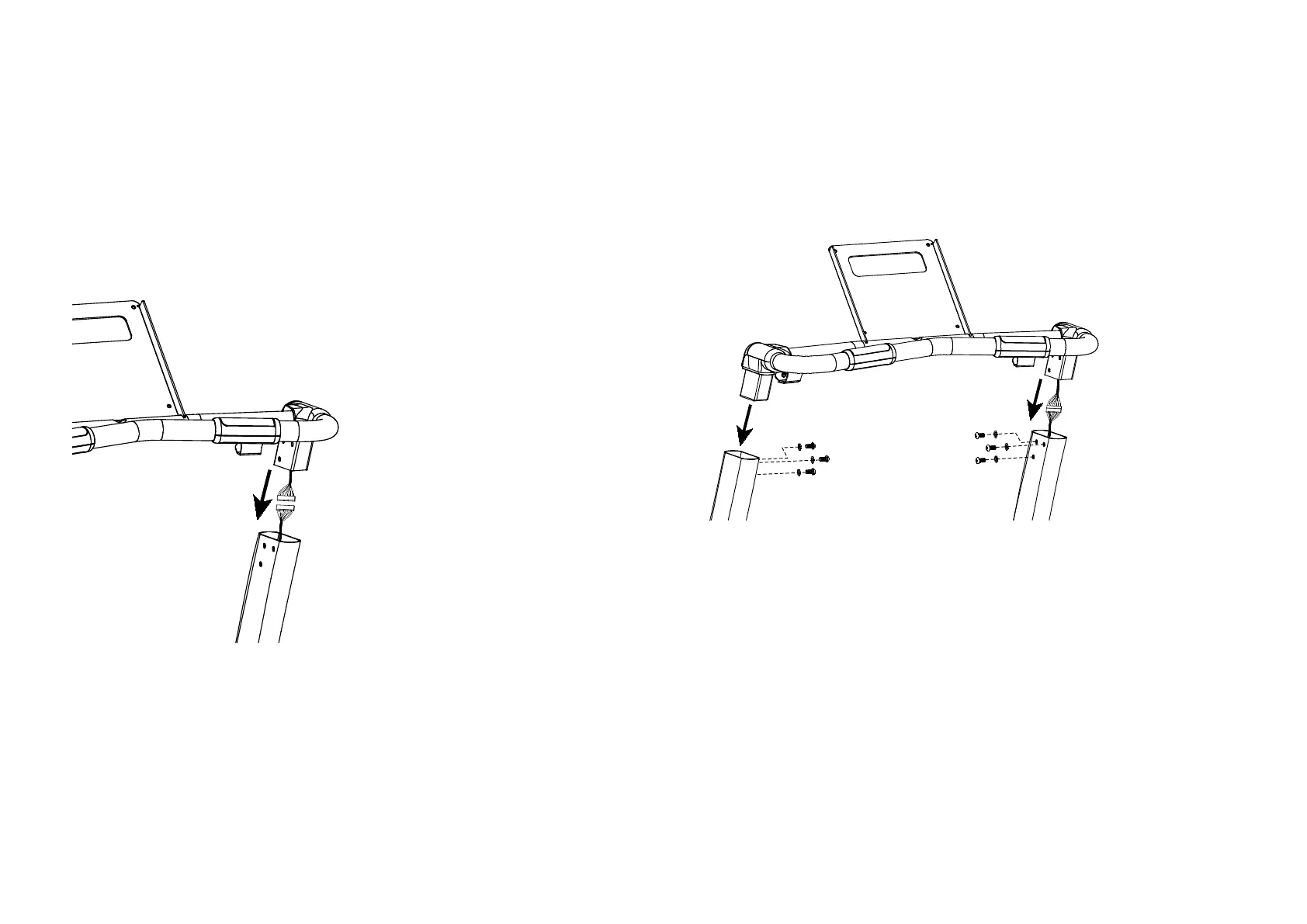

Figure 8: Base unit data cable attachment
2. Have your assistant lower the handrail assembly onto the upright supports.
Tip the assembly slightly forward so the lip of each handrail cap rests on each
upright support. Align the mounting holes and insert six M8 x 15 mm
buttonhead screws and six 8.4 mm washers. Partially tighten the fasteners.
Important: Make sure the fasteners do not pinch the cable. Cables damaged by
improper installation will not be covered by the Precor Limited Warranty.
Figure 9: Handrail assembly
Tightening the Fasteners
Tighten the base screws in the order presented below.
To tighten the base fasteners:
1. Use a 5 mm hex key to alternately tighten the four front upright screws.
2. Use the 6 mm T-handle hex wrench to fully tighten the four socket head
screws through the sides of the upright supports.
3. Use the 5 mm hex key to fully tighten the six screws that secure the handrail
assembly to the upright supports.
