Attaching the Console
9
Attaching the Console
Remove the display console from its box and protective packaging. Cut any wire
ties that secure the cables to the center handrail.
To attach the display console:
1. Ask your assistant to hold the display console above its mounting bracket
while you connect the cables to their appropriate receptacles on the back of
the display console.
Note: Each connector contains a tab that helps you align it properly.

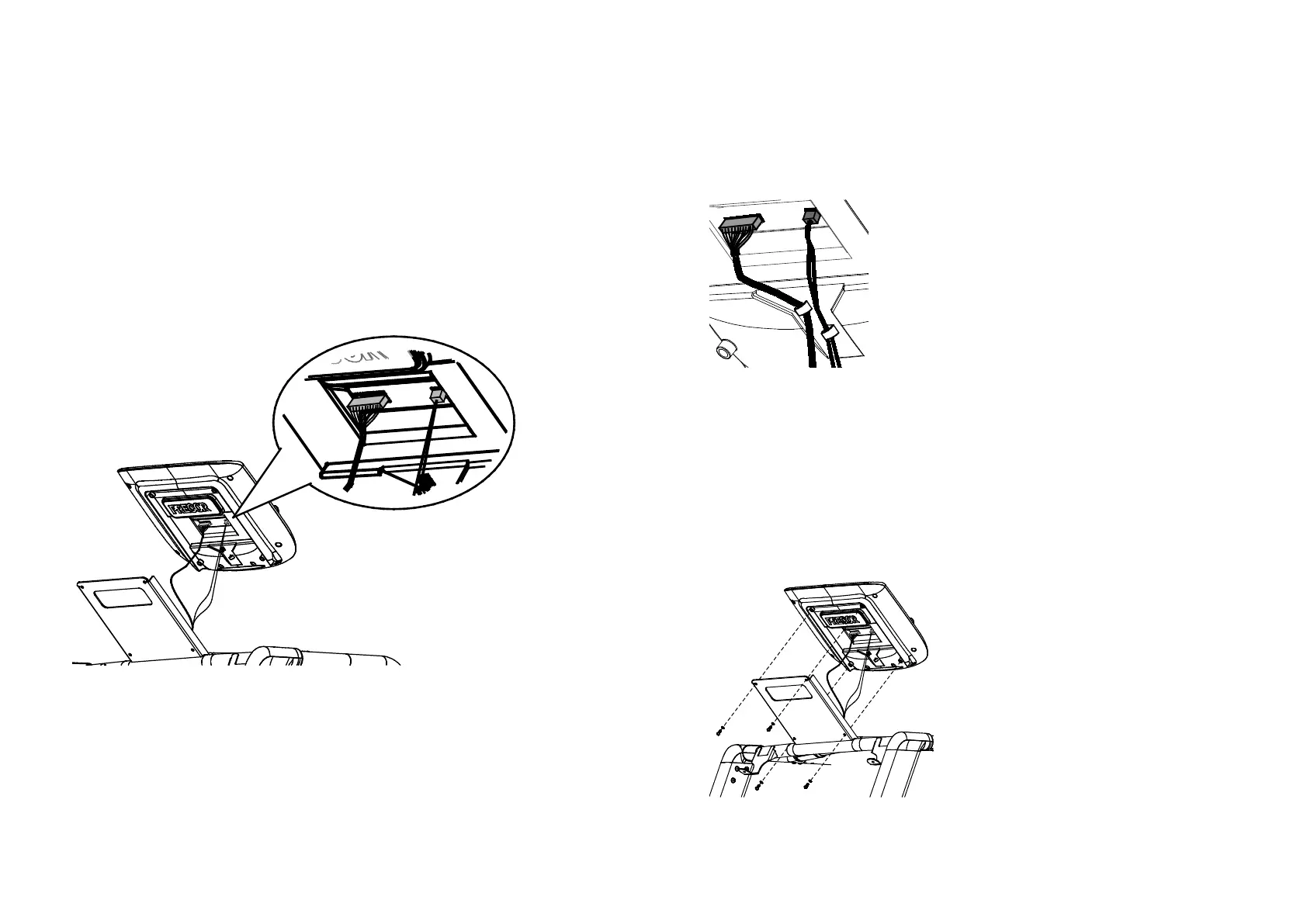

Figure 10: Console cable attachments
2. Secure the cables under the clips in the indented area on the back of the
display console and lower the display console onto its bracket.
Important: Make sure that the cables are tucked into the cable clips before you
place the console on the bracket.
Figure 11: Cable clip locations
3. Feed excess cable into the center handrail.
4. Set the console onto the console bracket. It should sit flush on the console
without gaps. If there is a gap, check to make sure that now wires are being
pinched.
5. Align the four mounting holes with the back of the display console and
secure it using four M6 x 15 mm buttonhead screws and four
6.5 mm washers. Fully tighten the fasteners using a 4 mm hex key.
Figure 12: Console attachment
