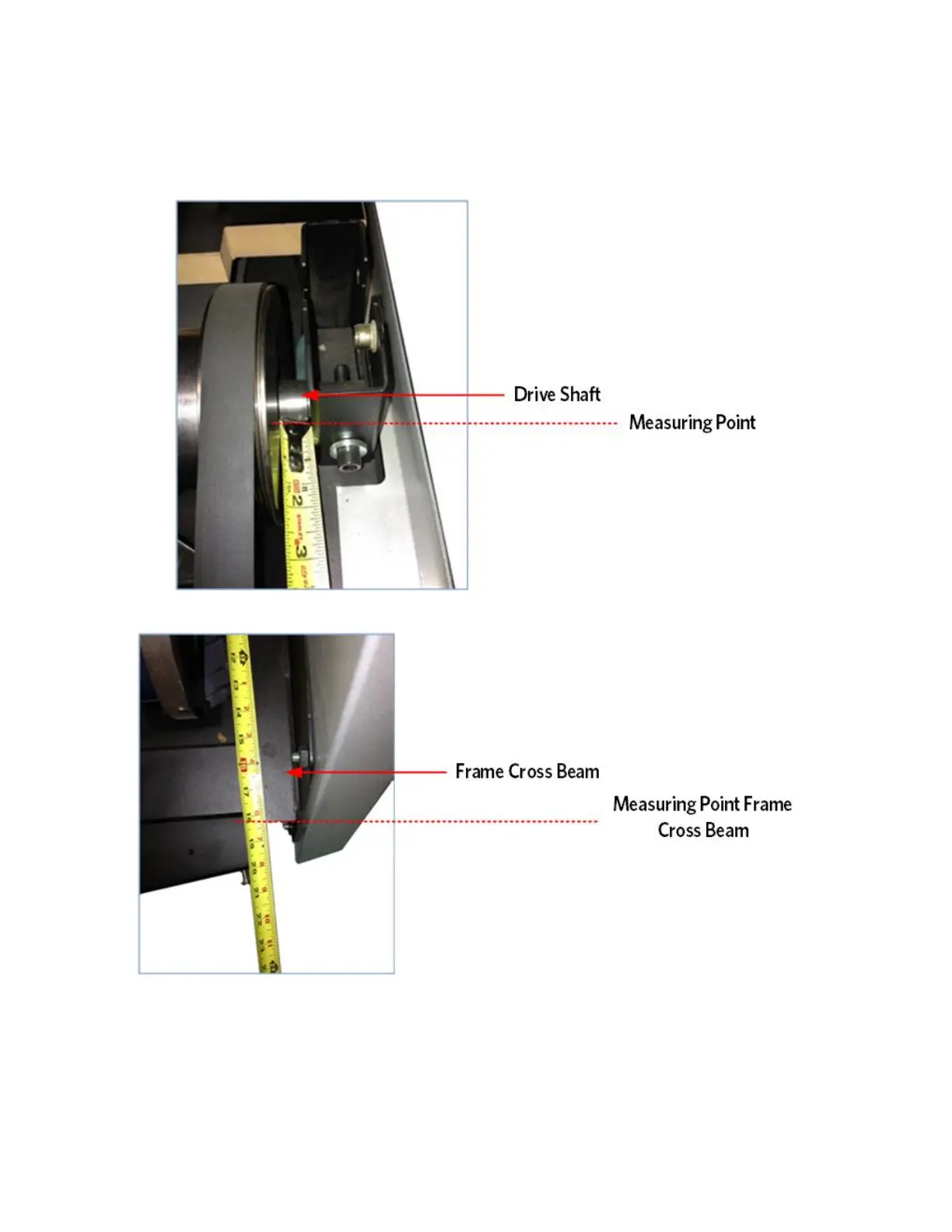

Figure 40: Measuring Point - Drive Shaft
Figure 41: Measuring Point Frame Cross Beam
11 Walk the drive belt onto the drive roller pulley by rotating the drive
motor flywheel. Be sure the belt is fully seated in the grooves of
both pulleys and correctly aligned.
12 Adjust the drive belt tension per the Procedure, Adjusting Drive Belt
Tension (on page 119).
