Replacing the Power Control Module
1 Set the treadmill’s on/off switch in the off position and remove the
AC line cord from the AC outlet.
2 Remove the treadmill’s hood.
3 Disconnect the COMM, INCLINE, INPUT, DB and OUTPUT connectors from the
power control module.

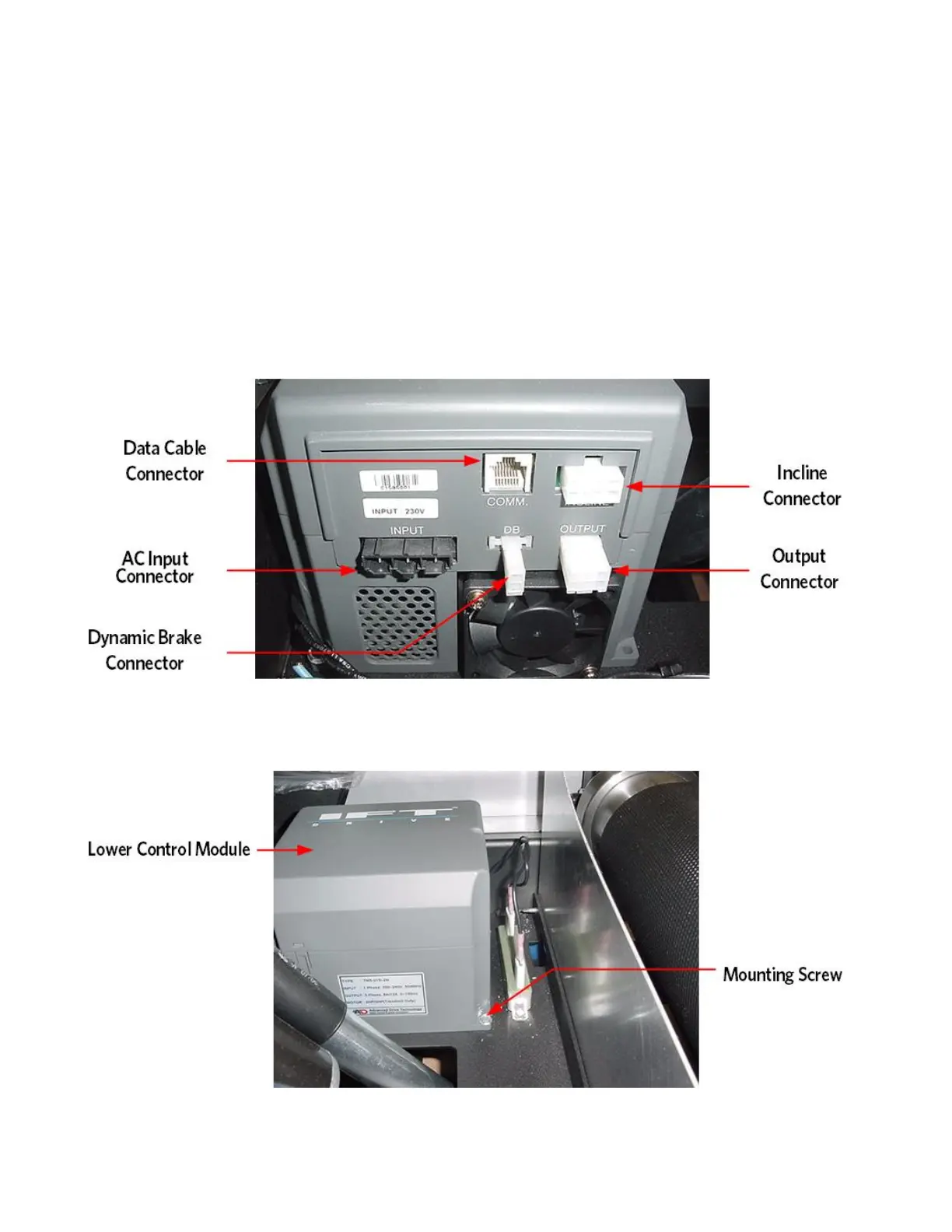

Figure 36: Power Control Module
4 Remove the four screws that mount the power control module. See Figure
Below (Lower Control Module Mounting.
Figure 37: Lower Control Module Mounting
5 Set the replacement power control module in its mounting position.
To Next Page
