Take Up Roller Replacement
Note: Two running belt gauges, Precor part number 20007-101, are
required. It is important that this procedure be followed to maintain
correct drive belt and running belt tension. Improper tensioning of the
belt will lead to premature running belt wear, premature driver roller
bearing failure and premature take up roller bearing failure.
1 Remove the end caps or guard from the rear of the treadmill to expose
the take up roller mounting bolts.
2 Remove the deck trim from both sides.
3 If applicable, remove the rear roller guard located in the front of
the take up roller.

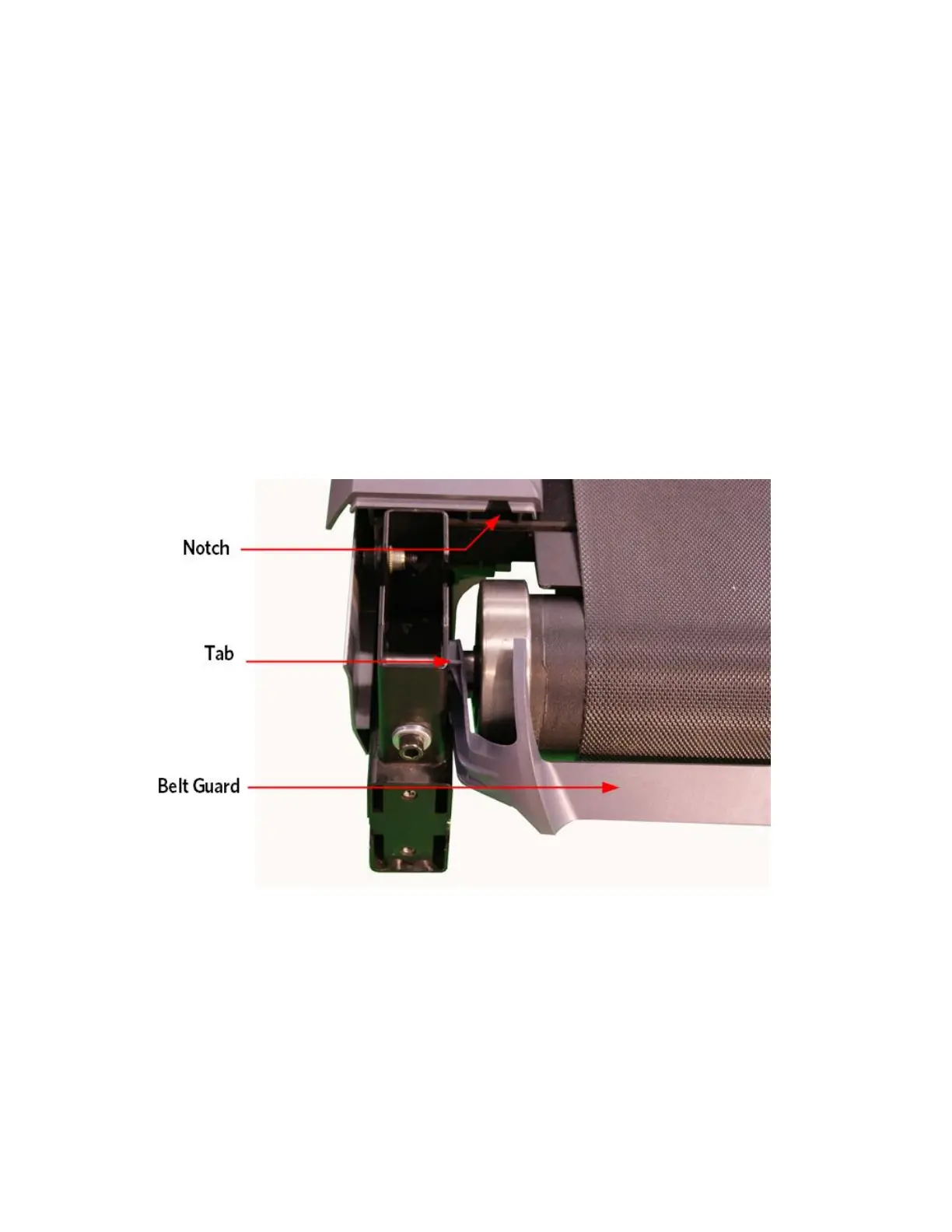

Figure 45: Belt Guard
