Replacing the Input Module
1 Set the treadmill circuit breaker in the off position and unplug the
treadmill’s line cord from the AC outlet.
2 Remove the treadmill’s hood.
3 Remove the two screws that fasten the AC input panel to the frame.

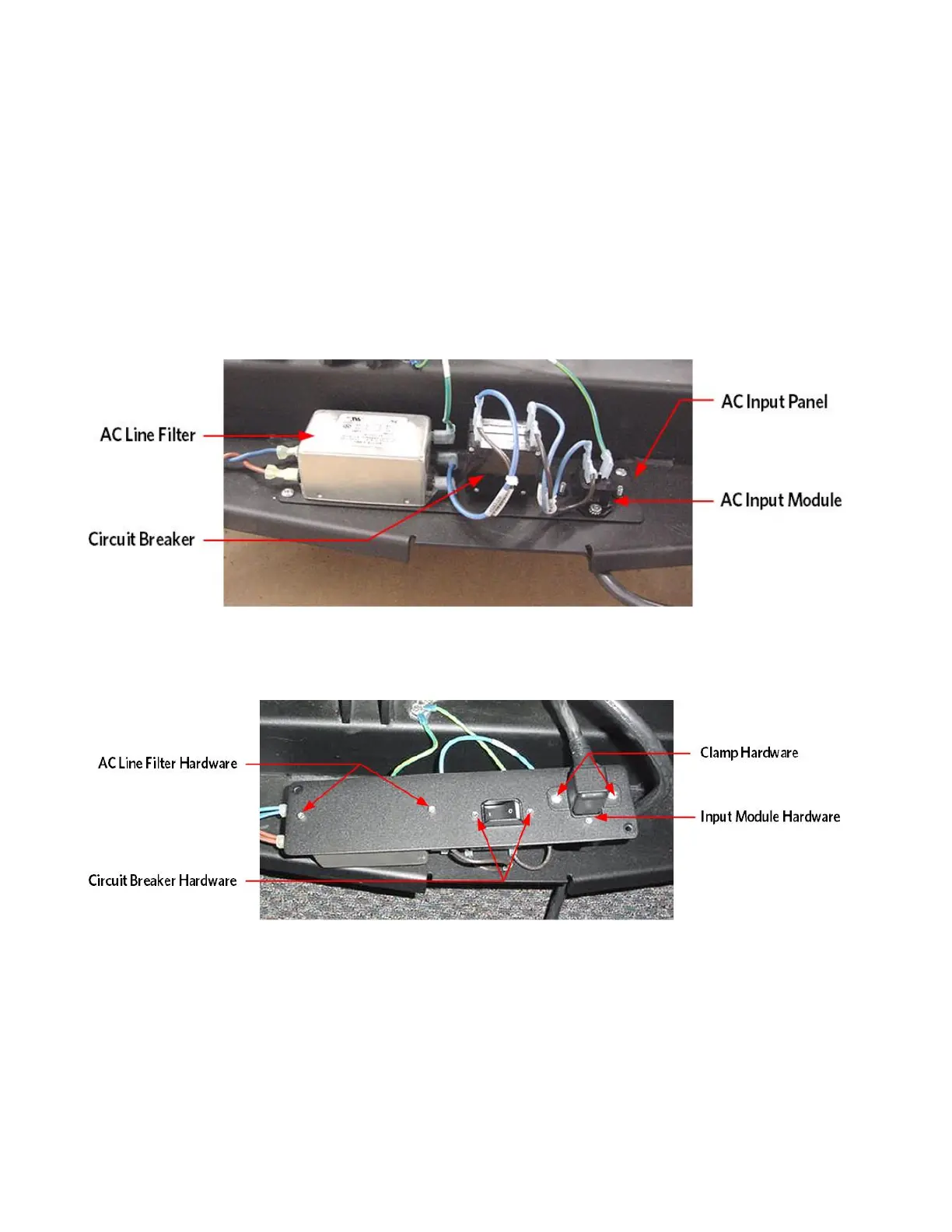

Figure 25: AC Input Panel
4 Lift the AC input panel from the frame and rotate it to expose the AC
line cord clamp screws and input module screws.
Figure 26: AC Input Panel Hardware
5 Remove the hardware that retains the AC line cord clamp and remove the
clamp.
6 Disconnect the AC line cord from the input module.
7 Disconnect the wiring from the input module (1 blue wire, 1 brown wire
and 1 green/yellow wire).
8 Remove the hardware that retains the input module and remove the input
module.
To Next Page
