© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 83
Replacing the Line Filter
1 Set the treadmill circuit breaker in the off position and unplug the
treadmill’s line cord from the AC outlet.
2 Remove the treadmill’s hood.
3 Remove the two screws that fasten the AC input panel to the frame, See
Figure below.
4 Disconnect the wiring from the AC line filter (2 blue wires, 2 brown
wires and a green/yellow wire).
5 Lift the AC input panel from the frame and rotate it to expose the AC
line filter mounting screws.

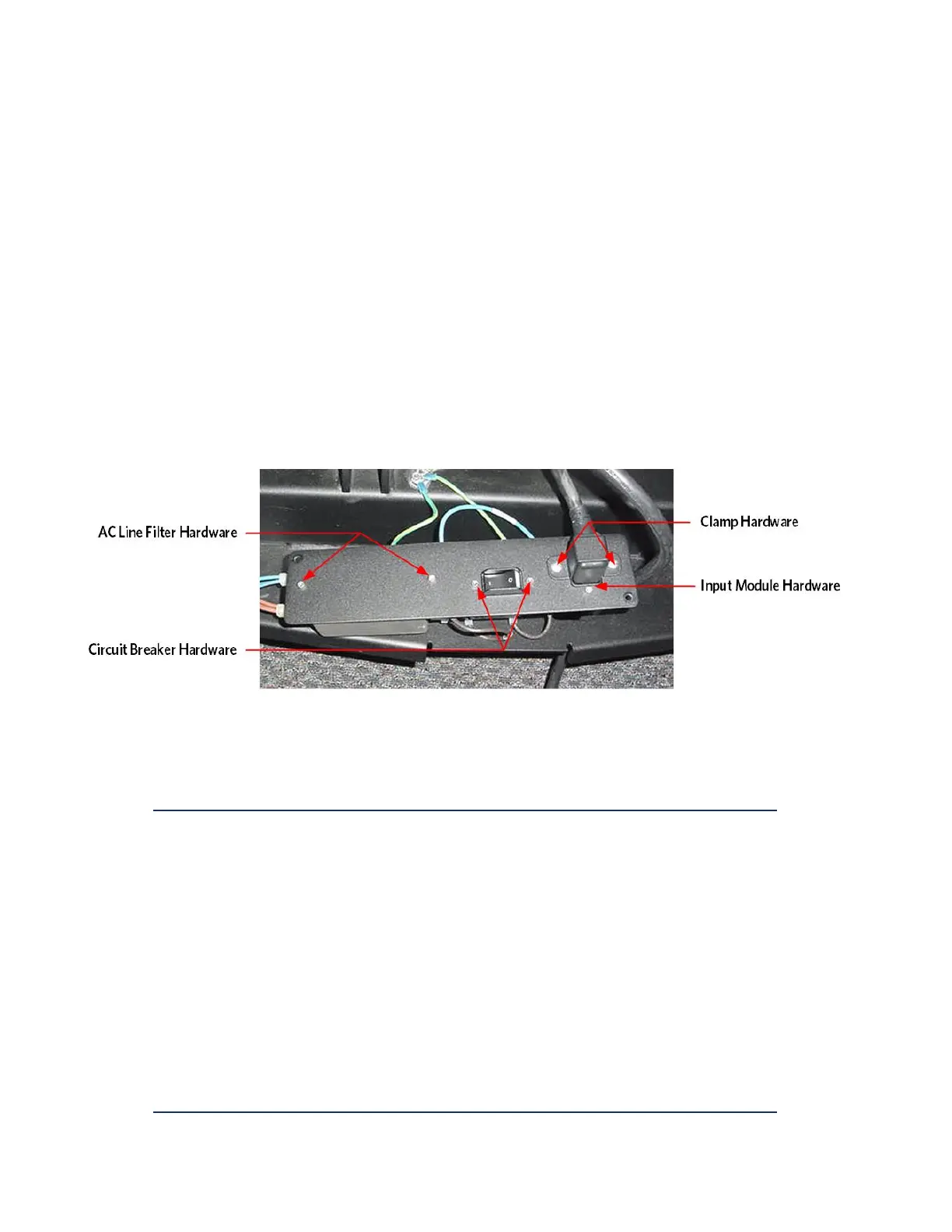

Figure 24: AC Input Panel Hardware
6 Remove the screws that retain the AC line filter. Remove the AC line
filter.
7 Set the replacement AC line filter in its mounting position with the
side with three terminals facing the circuit breaker and replace the
screws removed in step 6.
NOTE: On 120 Vac and 240 Vac treadmills, connect the blue wire from the
power control module to the L1 terminal on the LOAD side of the AC line
filter and the brown wire from the power control module to the L2 terminal
on the LOAD side of the AC line filter.
On 120 Vac treadmills, connect the blue wire from the input module to the
L1 terminal on the LINE side of the AC line filter, the brown wire from the
circuit breaker to the L2 terminal on the LINE side of the AC line filter and
the green/yellow wire to the (non-insulated) terminal mounted directly on
the line filter case.
On 240 Vac treadmills, connect the blue wire from the circuit breaker to the
L1 terminal on the LINE side of the AC line filter, the brown wire from the
circuit breaker to the L2 terminal on the LINE side of the AC line filter and
the green/yellow wire to the (non-insulated) terminal mounted directly on
the line filter case.
