© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 119
This section provides you with the step-by-step procedures required to
make adjustments. Perform the appropriate adjustment procedures when a
trouble symptom points to a particular problem and after removing and
replacing major components. Refer to the Replacement Procedures, Section
8 - Replacement Procedures (on page 79) for instructions on how to
disassemble and reassemble the running belt, deck, drive motor, rollers
and all associated parts.
Adjusting Drive Belt Tension ...................... 119
Tensioning the Running Belt ....................... 122
Running Belt Tracking Adjustment .................. 124
Calibrating the Lift Motor ........................ 125
Adjusting Drive Belt Tension
1 Set the treadmill circuit breaker in the off position and unplug the
line cord from the wall outlet.
This procedure assumes that the drive belt has been
installed and seated onto the motor drive belt pulley and
roller drive pulley.
2 Remove the hood.

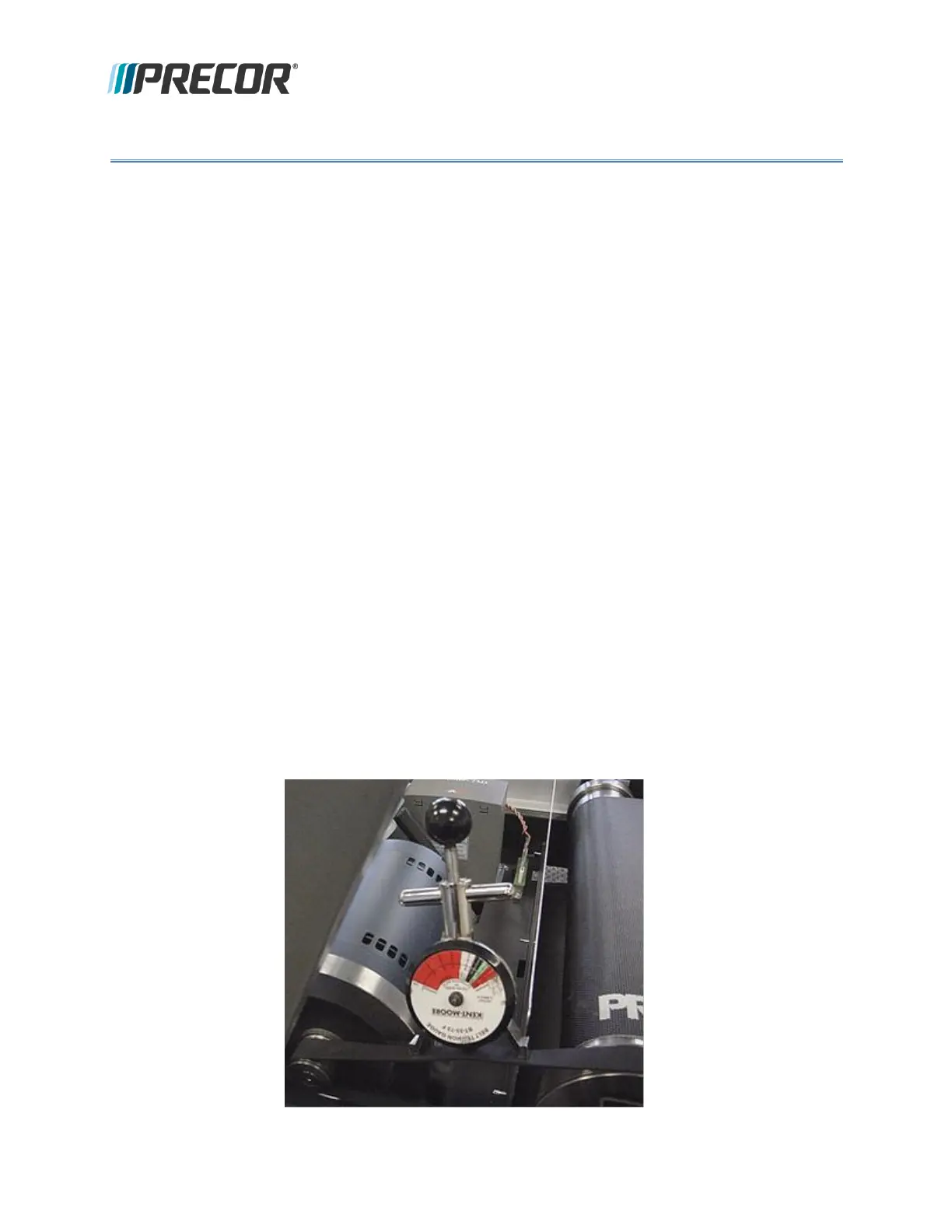

3 Place the drive belt tension gauge on the drive belt as shown in
Figure Below.
Figure 56: Drive Belt Tension Gauge
