4 Remove the four bolts and the roller guard that hold the deck to the
frame.

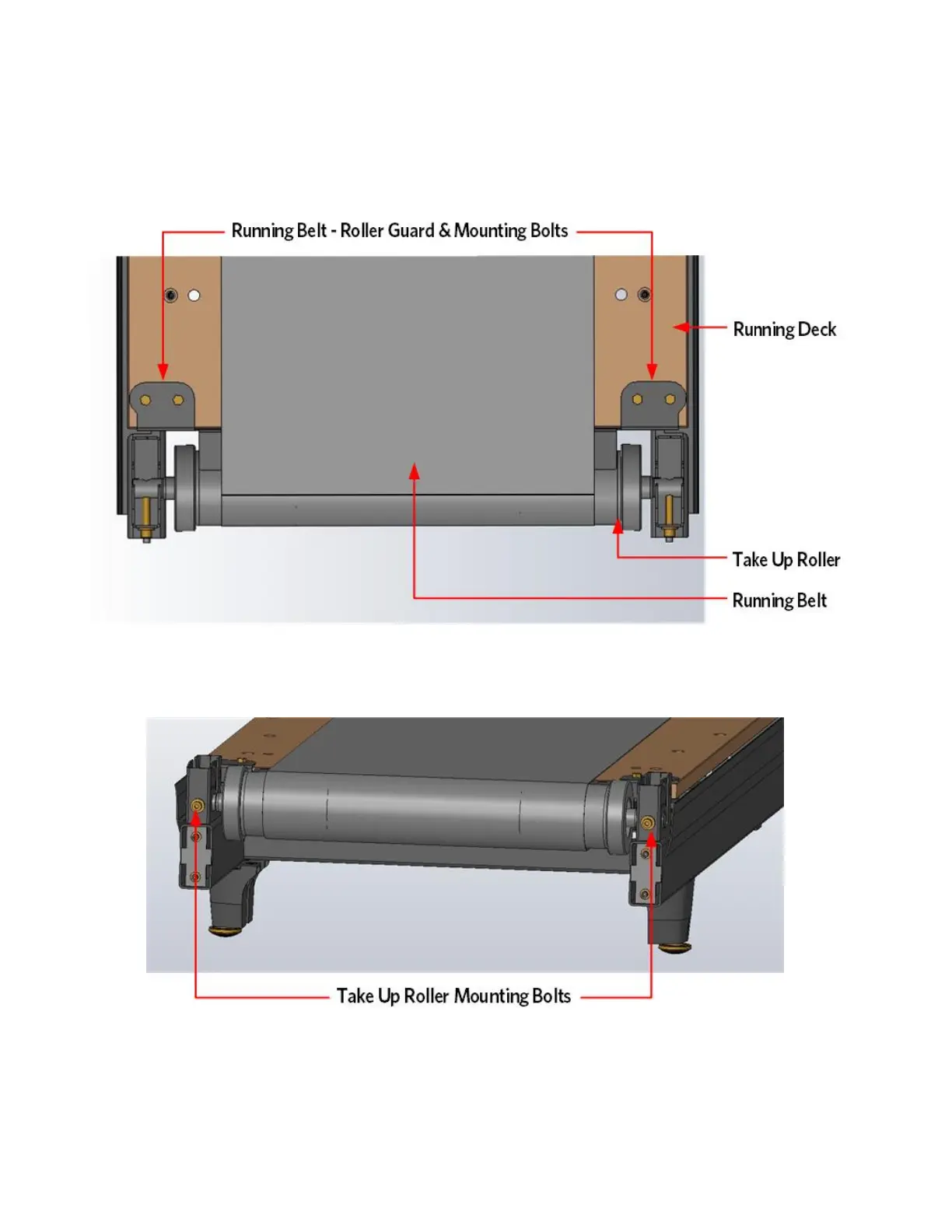

Figure 48: Running Deck - Bolts & Plates
5 Remove both take up roller mounting bolts. Remove the take up roller
from the treadmill.
Figure 49: Take Up Roller Mounting Bolt
