Since the lift motor runs directly on the AC line voltage coming into the
unit, it is important to note that the lift motor is a different part
number for a 120v unit than for a 240v unit.

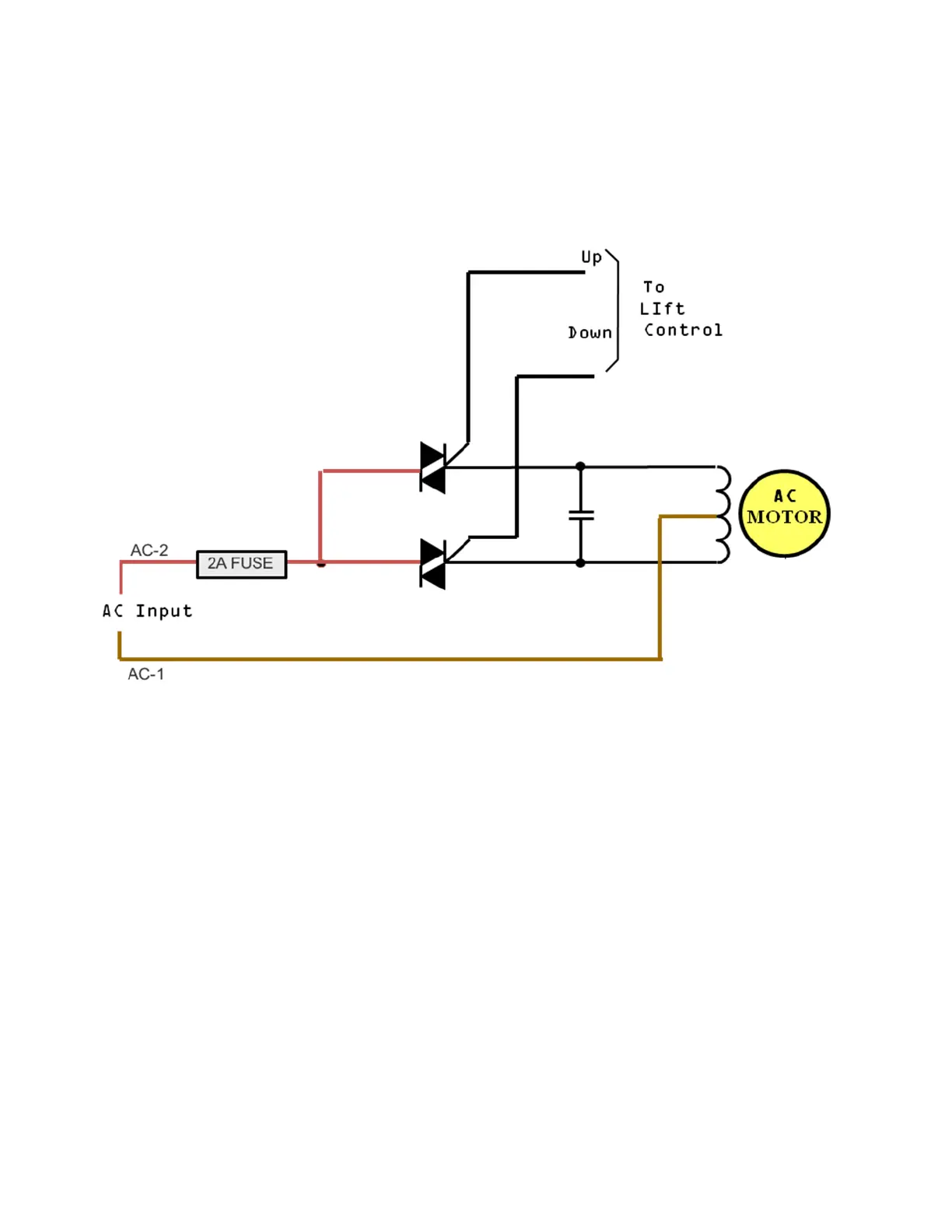

Figure 9: AC Lift System - Motion Control
