Replacement Procedures and Parts
1. Ribbon Motor Cables
2. Ribbon Deck Assembly
3. Cam Cover
4. Cam Cover Plate
5. Dust Barrier Block
6. Cable Connectors
7. Velcro Covers
8. Screw (2)
9. Anti–Rotation Screw (2)
10. Anti–Rotation Shim (3)
11. Jam Nut (2)
12. Bearing Set Screw (2)
13. Bearing Cap Screw (1)
14. Bearing Cap Screw (5)
15. Right Bearing Cap
16. Left Bearing Cap
17. Hammer Bank
18. Shuttle Spring Shims
19. Casting Edge
20. Screws (3)
21. Air Deflector (Paper Scale)
3
4
5
6
7
8
2
9
10
8
15
17
19
11
1
16
12
18
13
21
20
14
14
14
1

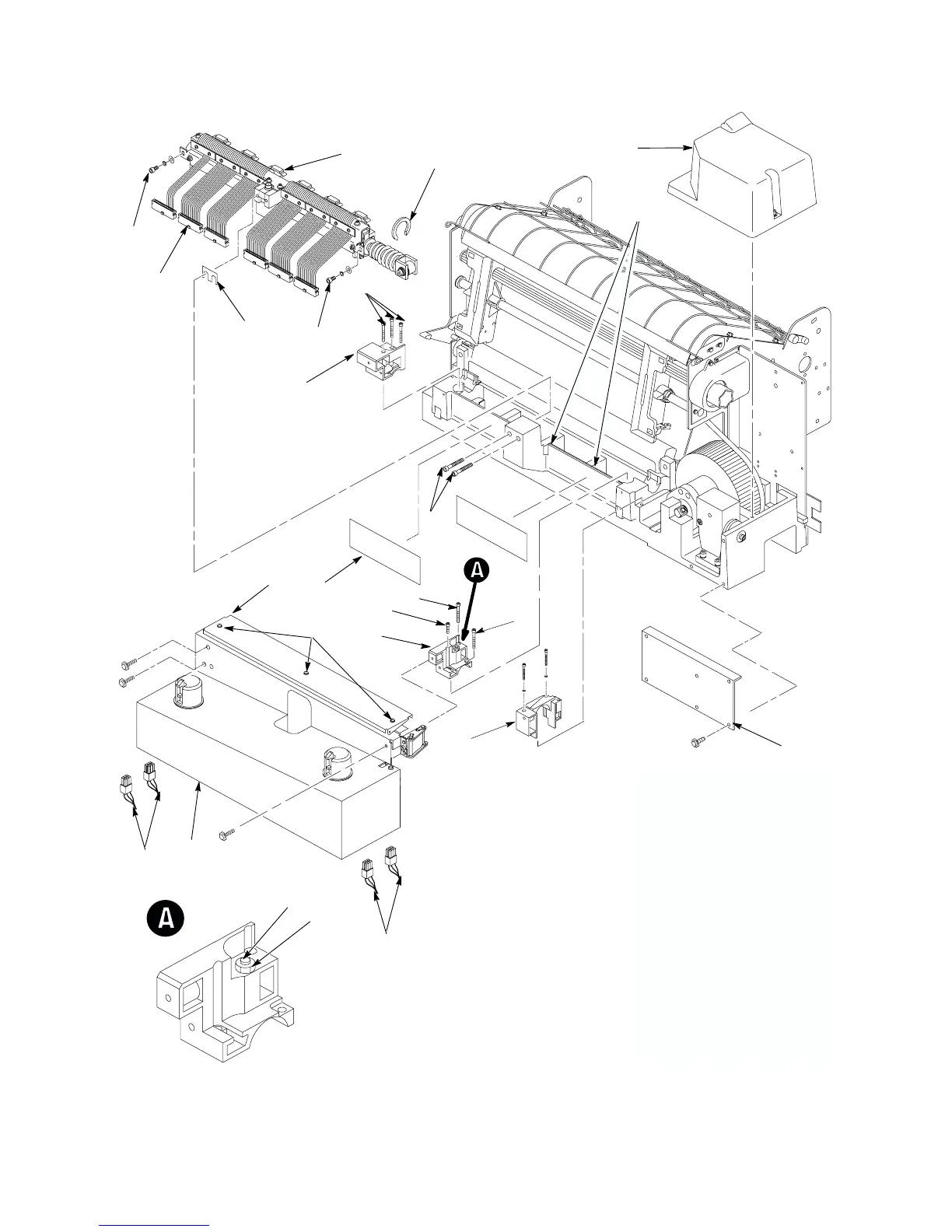

Figur e 6–1. Hammer Bank Removal/Installation
