6
3.0 Installation
The i4s Spot Welder is inspected and tested prior to leaving the factory to guarantee consistent
quality and the highest possible reliability. Follow the installation tips and operating instructions
below to ensure user safety and proper welder performance.
General
WARNING! Do not operate or place the welder near water, in wet locations or outdoors. Risk for
injuries or damage to the welder.
WARNING! Do not place the welder on unstable or uneven ground. The welder might fall causing
personal injuries and damage to the welder. Do not operate on a slope of more than 10 degrees.
WARNING! When moving the welder, always check to make sure the wheel-locks are disengaged.
Move the welder by grabbing the wraparound handle. Lock wheels in place prior to welding.
IMPORTANT! It is the responsibility of the owner to ensure that the equipment has been installed
and inspected in accordance with applicable regulations, and all users are trained on safety and
usage before it is put into service.
ATTENTION! Ne pas faire fonctionner le soudeur près de l’eau, en voie humide ou à l’extérieur.
Risque de
ATTENTION! Ne placez pas le soudeur sur un sol instable ou irrégulière. Le soudeur peut tomber
causant
désengagés des dommages graves au soudeur. Ne pas utiliser sur une pente de plus de 10º
IMPORTANT! C’est la responsabilité du propriétaire de s’assurer que l’équipement a été installé
s’assurer que lesoudeur est inspecté conforment à la réglementation applicable avant qu’il ne
soit mise en service.en service. Ne pas utiliser pour dégeler les conduites d’eau congelées (17.1)
blessures ou de dommages au soudeur. et que vous les déplacez en saisissant la poignée envel-
oppante.
!
!
Check the contents of the shipping container against the packing list, consignment note, or
other delivery documentation to verify that everything is included and in the correct quanti-
ty. Check the i4s Spot Welder carefully to make sure that no damage has occurred during
transport. If anything is damaged or missing, the welder may be unsafe to use until the part
is repaired or replaced. If anything is missing, please contact your supplier. Remove all
packaging material from the welder as items may be wrapped in packing materials. .
3.1 Packaging & Delivery Inspection
3.2 Welder Assembly
For your convenience, the i4s welder ships fully assembled,
with the exception of the support arm (boom).
Due to differences in wiring codes and connection methods,
electrician for proper installation of the electrical plug.

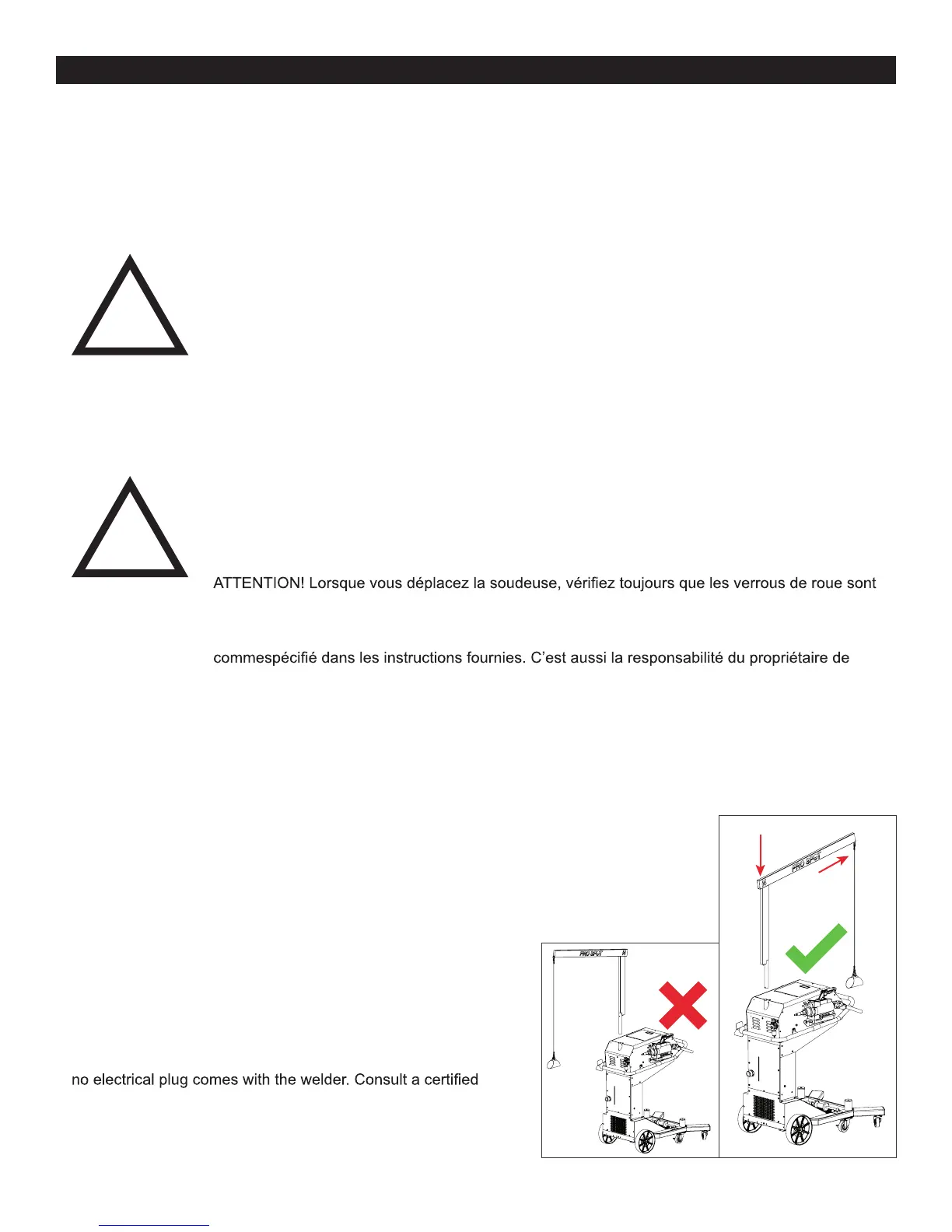

Insert the support arm (boom) as shown in Figure 3.1
Figure 3.1
