9. Manual Weld Advanced Settings - This button allows the user to change Squeeze Time, Hold Time, Rise Time,
and Fall Time. You will need the Administrator password in order to access this setting.
Squeeze Time: The amount of time between when the weld trigger is pressed and held and when the weld current
is provided.
Hold Time: The amount of time between after the weld current stops and the electrode releases the workpiece.
Rise Time: The amount of time it takes for the welder to reach full current.
Fall Time: The amount of time it takes for the welder to fall down from full current to 0.
10. Manual Mode Help - This button shows the user help information that applies to the Manual Mode Weld
screen.

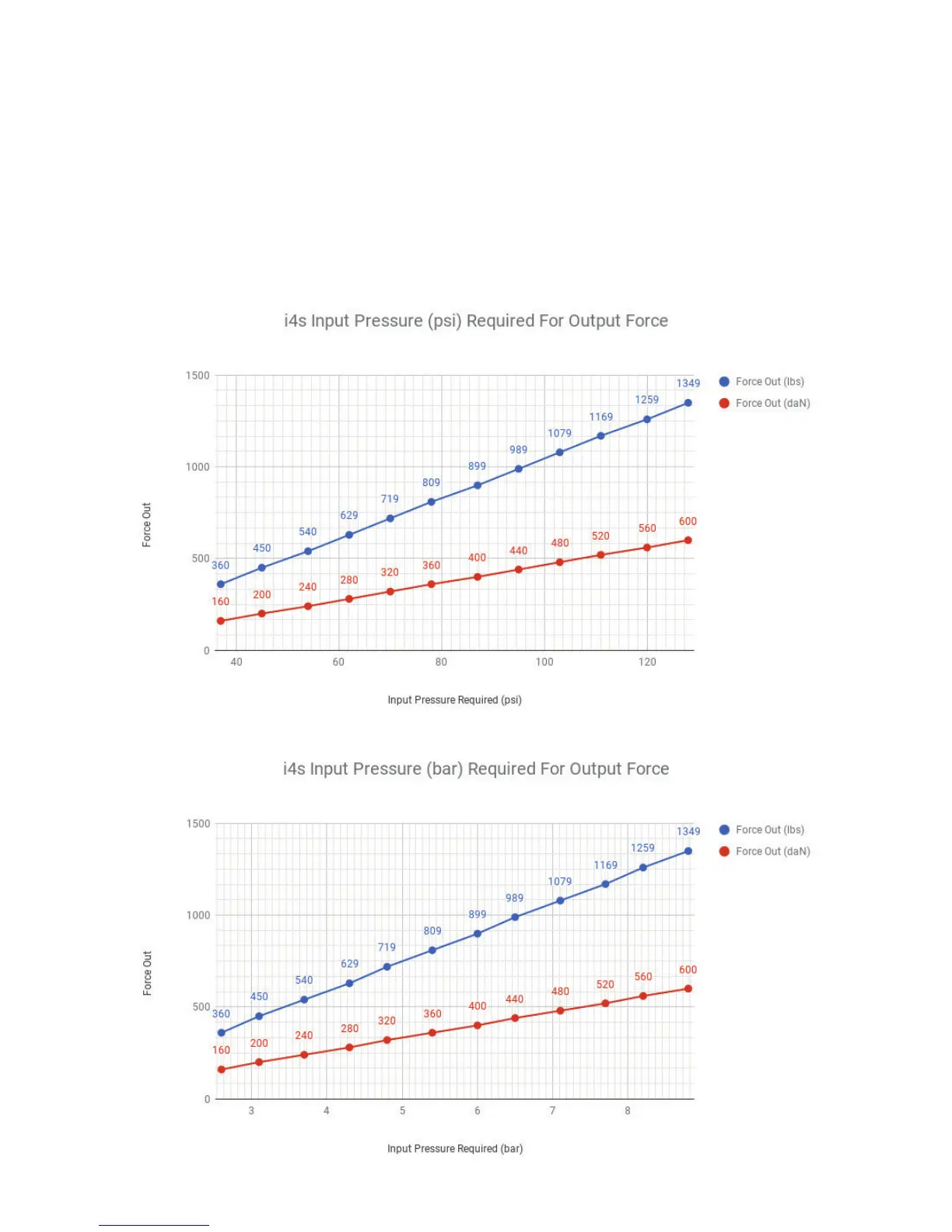

Figure 5.5
Figure 5.6
