Pro Spot i4s - Welding Electrode Maintenance

45

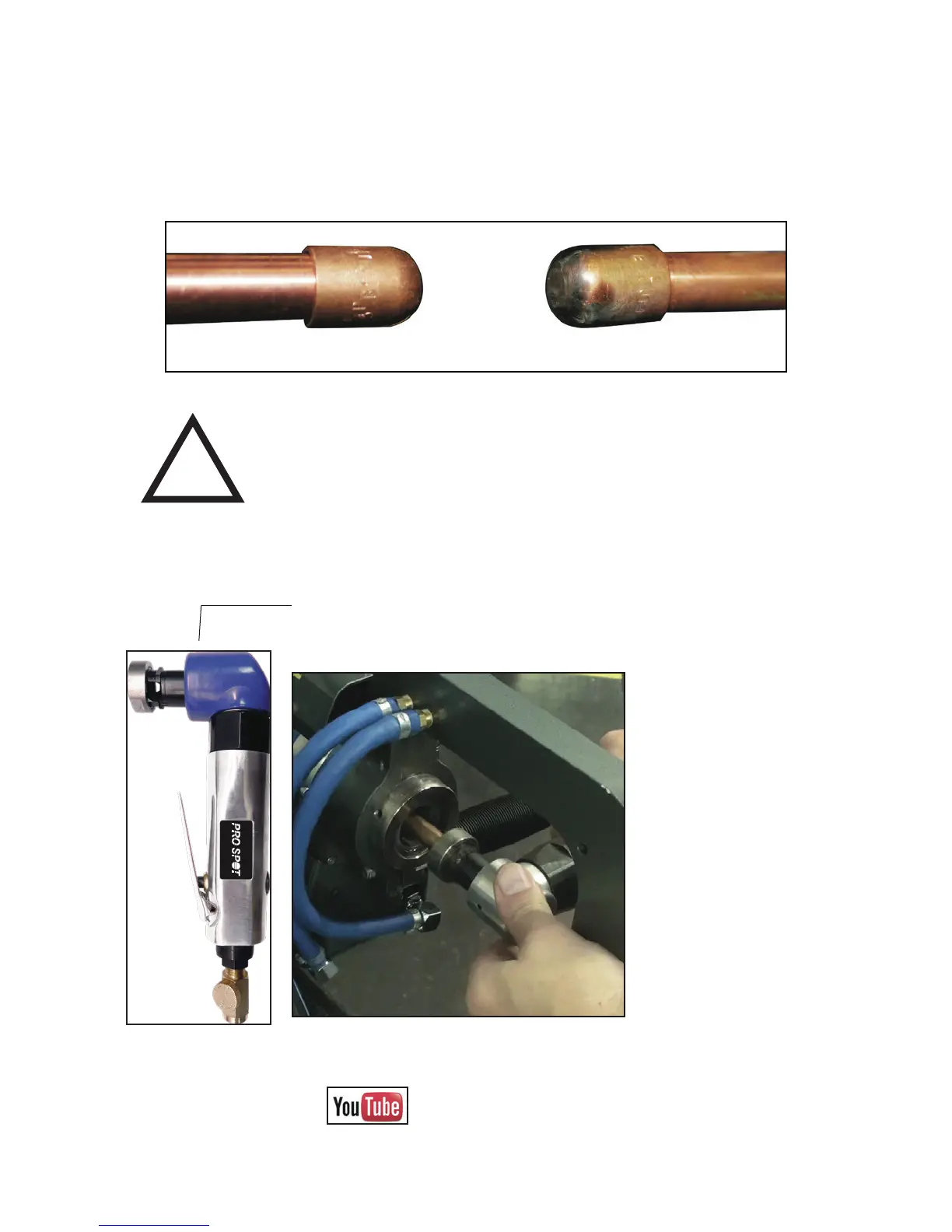

CLEAN TIPS DIRTY TIPS
8.2 Welding Electrode Maintenance
PLT-51 Tip Sharpener
WARNING! The electrodes may be hot. Use caution when handling them.
ATTENTION! Les électrodes peuvent être chauds. Soyez prudent lors de
leur manipulation.
!
In order to maintain structurally-sound welds, it is important to keep your welding electrodes and weld caps
from forming any build-up. It is also important to maintain a 6mm weld nugget diameter. Clean electrodes with
D¿OHRU7LS6KDUSHQHU(OHFWURGH'UHVVHUDQGSHULRGLFDOO\UHSODFHZHOGFDSV
Note: The PLT-51 (meant for the OEM weld caps) is distinguishable from
the PLT-50 by the lack of green mark on the neck of the grinding head.
Cap cleaning:
1. Turn off the i4s.
2. Connect the PLT-51 Tip Sharpen-
er to a compressed air hose.
3. Set the sharpening blade on the
weld cap to be cleaned.
4. Hold down the paddle switch
while applying a slight pressure
against the weld cap for about 10-15
seconds.
5HSHDWWKHVHVWHSVDQGXQWLO
all debris is cleared from the weld
cap and there is a clear connection
path between both tips.
A video demo of the PLT-51 in action can be found on our
YouTube Channel at: KWWSV\RXWXEH\[H¿/EO(
8.2 Welding Electrode Maintenance
